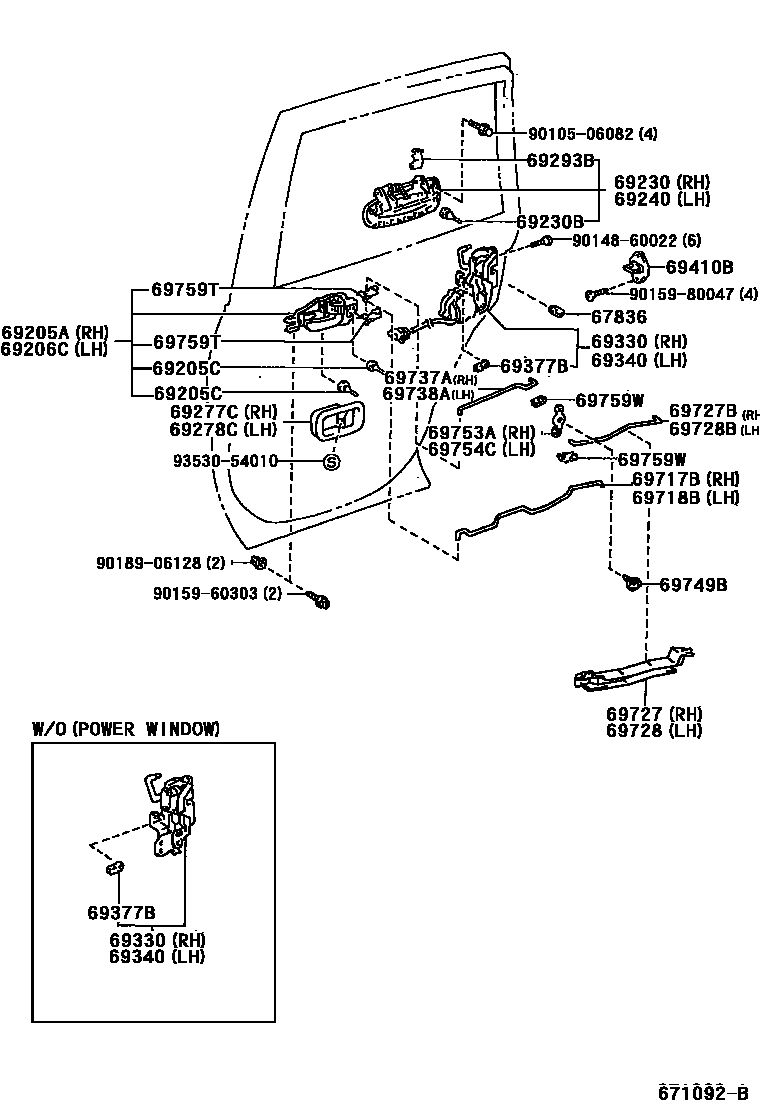

Toyota RAV4 后门锁和后门把手 — Figure 6756
Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-42010 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04018 · 90541-04020 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69050-42011 · 69330-42011 |
| 69340 | Left rear door lock assembly | 69060-42011 · 69340-42011 |
| 69377B | Rear door lock lever buckle | 69759-20040 · 69759-20050 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-42010 |
| 69718B | Left rear door lock remote control lever | 69714-42010 |
| 69727 | Right rear door inner locking link guard | 69727-42010 |
| 69727B | Right rear door No. 2 inner locking link | 69727-42020 |
| 69728 | Left rear door inner locking link guard | 69728-42010 |
| 69728B | Left rear door No. 2 inner locking link | 69728-42020 |
| 69737A | Right rear door inner locking link | 69737-42010 |
| 69738A | Left rear door inner locking link | 69738-42010 |
| 69749B | Rear door lock link clamp | 69749-32030 |
| 69753A | Door lock control right angle lever | 69753-20060 |
| 69754C | Left door lock control right angle lever | 69753-20060 |
| 69759T | Rear door inner handle buckle | 69759-14050 · 69759-24070 |
| 69759W | Rear door lock control link buckle | 69759-24030 |
