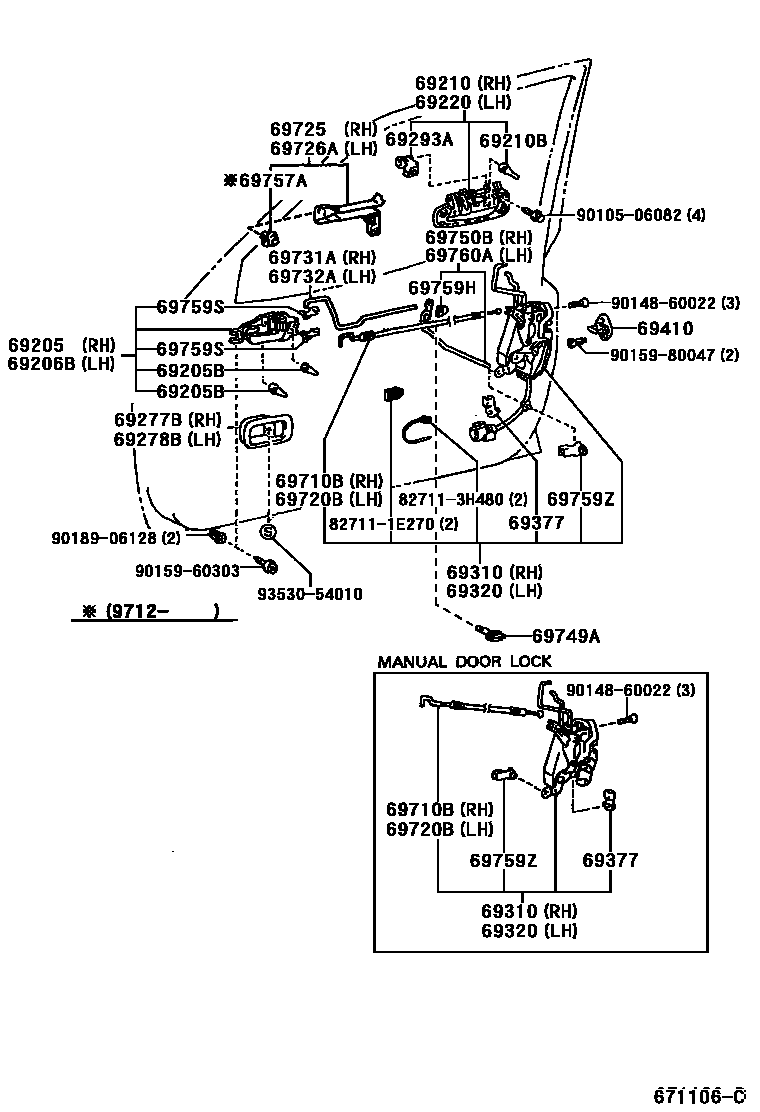

Toyota RAV4 前门锁和车门把手 — Figure 6753
Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90541-04018 · 90541-04020 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-42061 · 69310-42041 |
| 69320 | Left front door lock assembly | 69040-42061 · 69320-42041 |
| 69377 | Front door lock control link buckle | 69759-24010 · 69759-24020 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710B | Right front door lock remote control cable assembly | 69710-42020 |
| 69720B | Left front door lock remote control cable assembly | 69710-42020 |
| 69725 | Right front door inner locking link guard | 69725-42020 · 69725-42021 |
| 69726A | Left front door inner locking link guard | 69726-42020 · 69726-42021 |
| 69731A | Right front door No. 1 inner locking link | 69731-42040 |
| 69732A | Left front door No. 1 inner locking link | 69732-42040 |
| 69749A | Front door lock No. 1 link clamp | 90467-06106 |
| 69750B | Right front door inner locking link assembly | 69750-42020 |
| 69757A | Door lock control right angle lever clip | 69757-42010 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-20410 |
| 69759S | Front door inner handle buckle | 69759-14050 · 69759-24070 |
| 69759Z | Door lock control link buckle | 69759-24050 · 69759-24060 |
| 69760A | Left front door inner locking link assembly | 69760-42020 |
