Toyota RAV4 车内装饰板 — Figure 6451

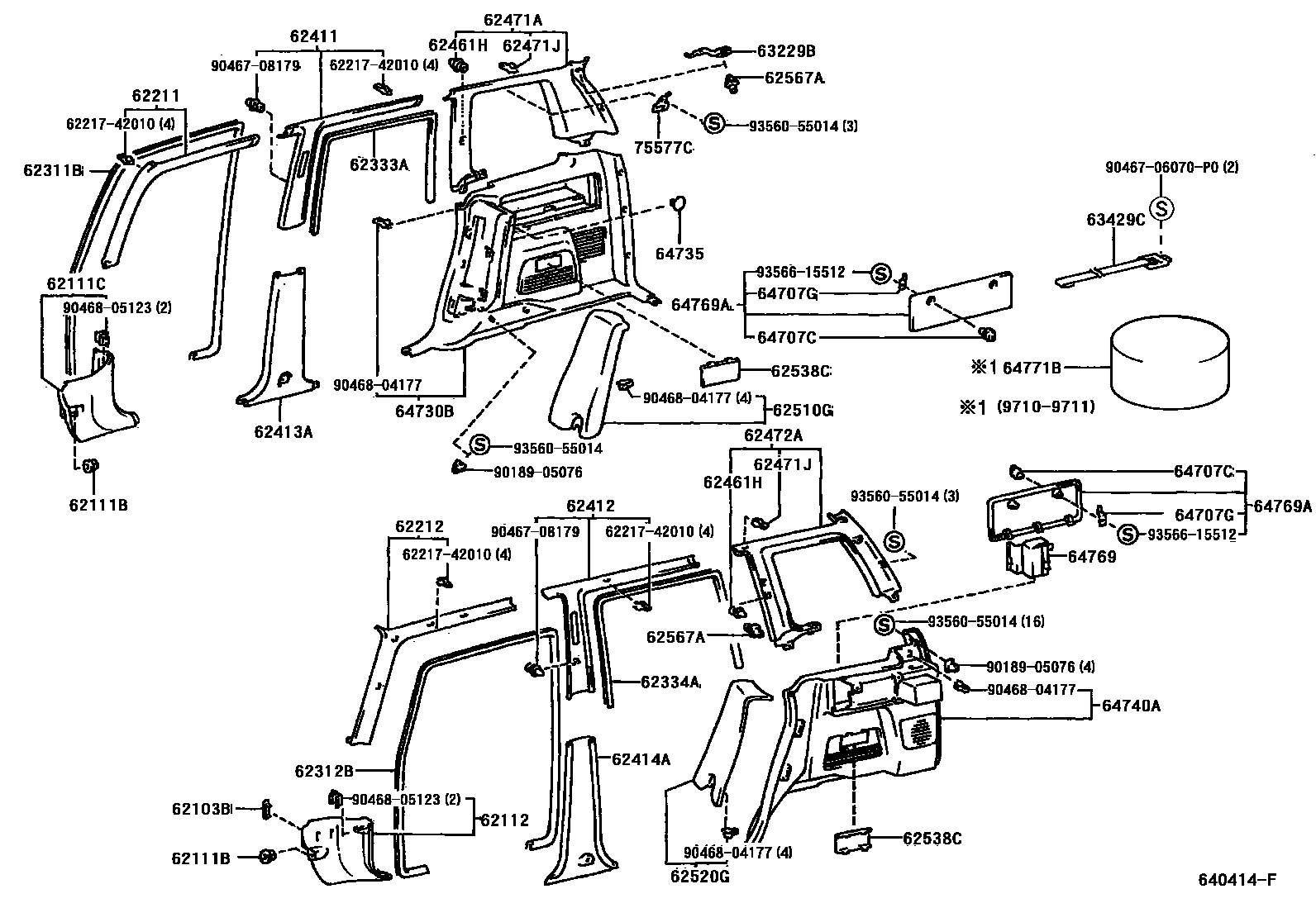

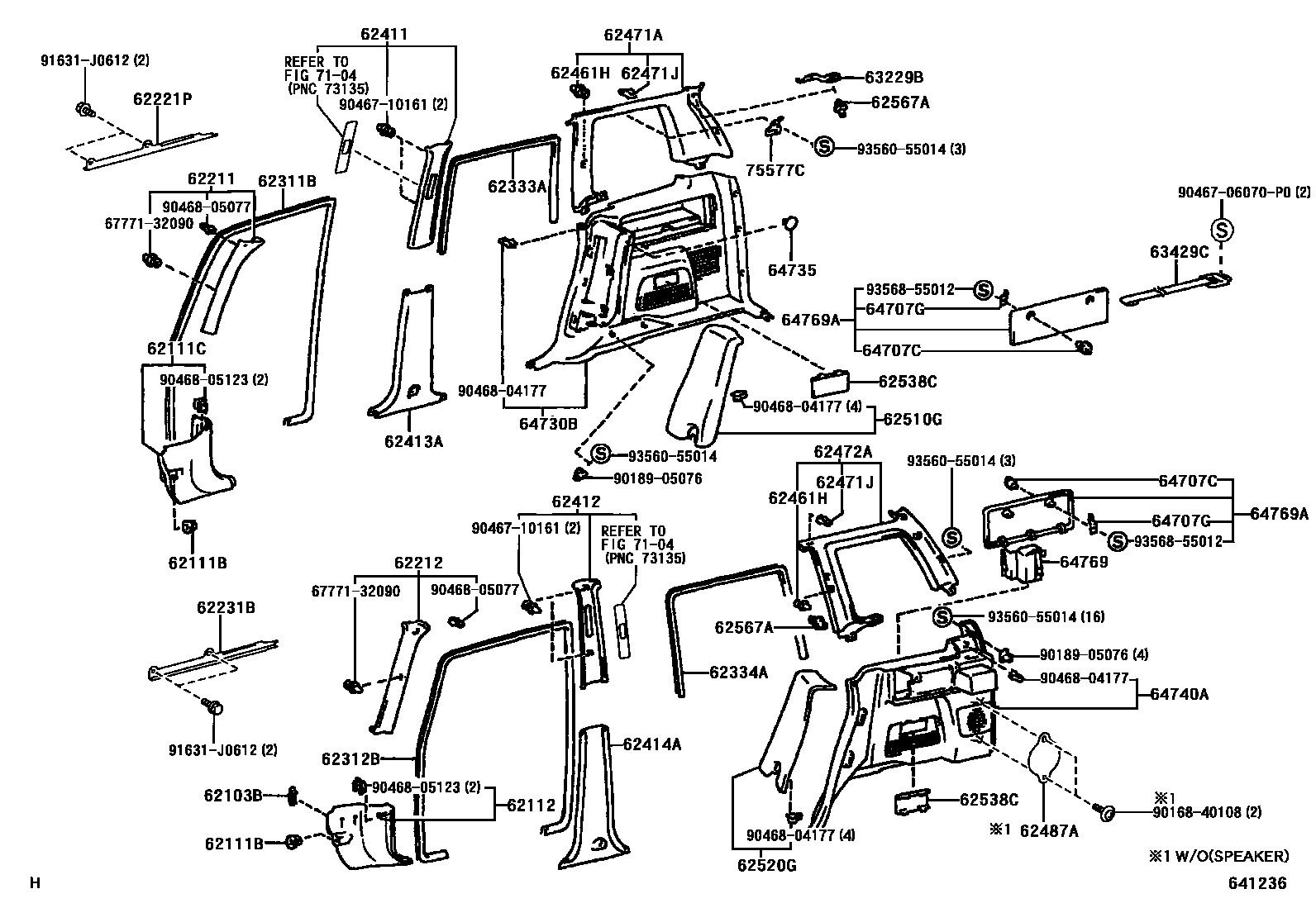

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06147 |
| 62221P | No. 1 right front pillar spacer | 62221-42020 |
| 62231B | No. 1 left front pillar spacer | 62231-42010 |
| 62461H | Clips (for roof side interior panels) | 90467-08179 |
| 62471J | Clips (for roof side trim panels) | 62217-42010 · 90468-05077 |
| 62487A | Roof right interior panel cover | 62487-42010 |
| 63229B | headliner rear bracket | 63229-42010 |
| 63429C | In-car luggage rack straps | 63429-42050 |
| 64707G | Jack cover stop | 64768-60010 |
| 64771B | Spare Wheel Cover | 64771-42050 |
| 75577C | Roof side trim bracket | 75577-42010 |
