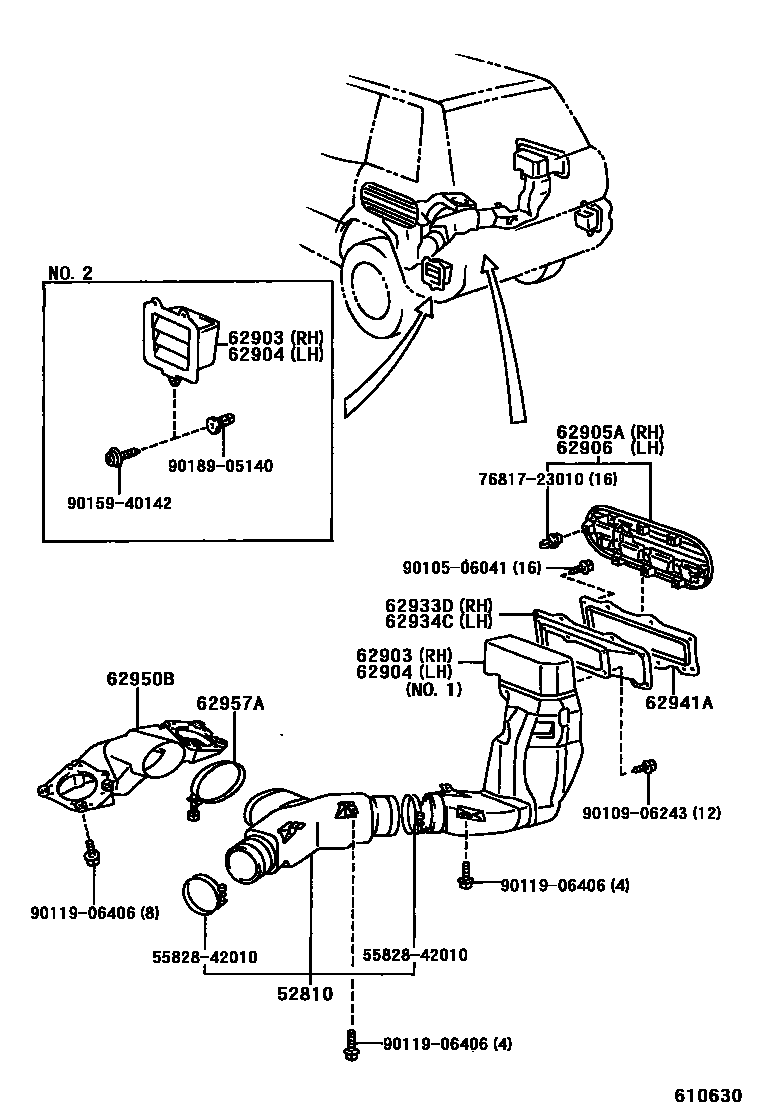

Toyota RAV4 后通风装置和车顶通风装置 — Figure 6155
Toyota RAV4 EPC diagram 6155, 后通风装置和车顶通风装置, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52810 | Side ventilation duct assembly | 52810-42010 · 52810-42011 |
| 62903 | Right side ventilation duct sub-assembly | 62903-42010 · 62903-42011 · 62930-13010 |
| 62904 | Left side ventilation duct sub-assembly | 62904-42010 · 62904-42011 · 62930-13010 |
| 62933D | Side ventilation ducts | 62933-42010 |
| 62934C | Surround the ventilation duct on the left side | 62934-42010 |
| 62941A | Side ventilation duct fixings | 62941-42010 |
| 62950B | Ventilation duct assembly No. 2 on the right side | 62950-42010 · 62950-42011 |
| 62957A | Side ventilation duct No. 1 seal | 62957-42010 |
