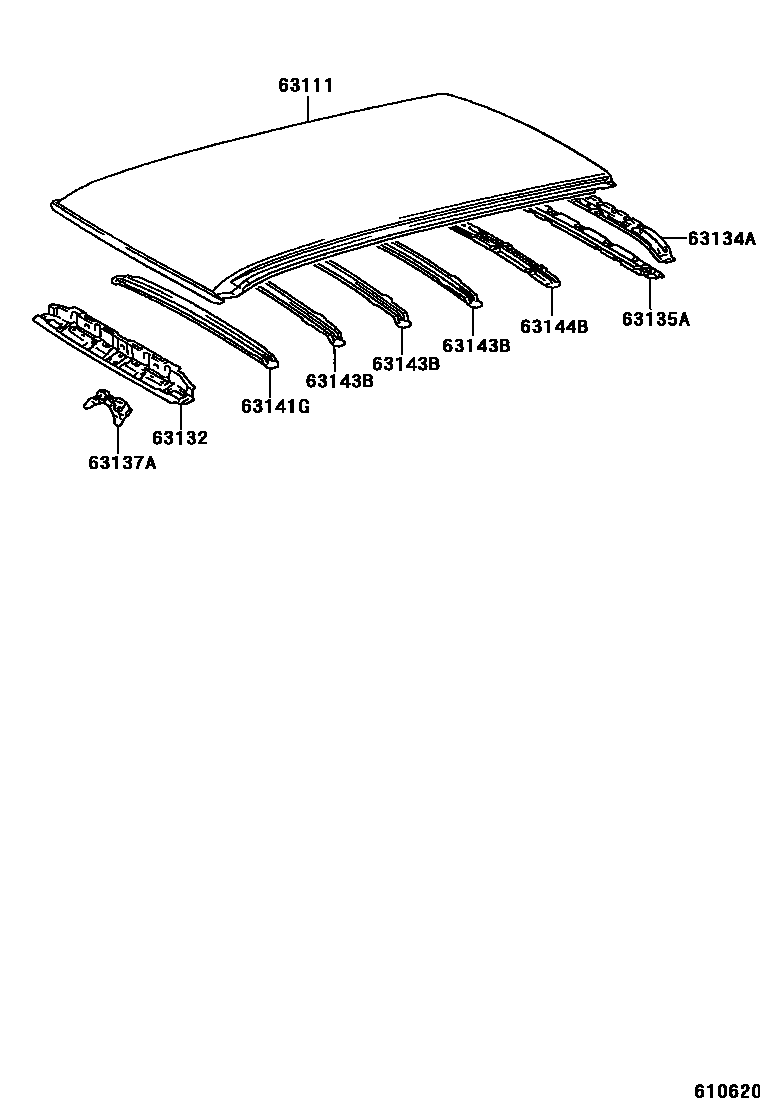

Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63111 | roof panel | 63111-42030 |
| 63132 | Windshield inner roof panel | 63132-42020 |
| 63134A | Opening frame on back door | 63134-42010 |
| 63135A | Opening frame under rear door | 63135-42011 |
| 63137A | No. 1 ceiling light bracket | 63137-42010 |
| 63141G | No. 1 roof panel reinforcement | 63141-42020 |
| 63143B | No. 3 roof panel reinforcement | 63143-42020 |
| 63144B | No. 4 roof panel reinforcement | 63144-42010 |
