Toyota RAV4 侧梁 — Figure 6151

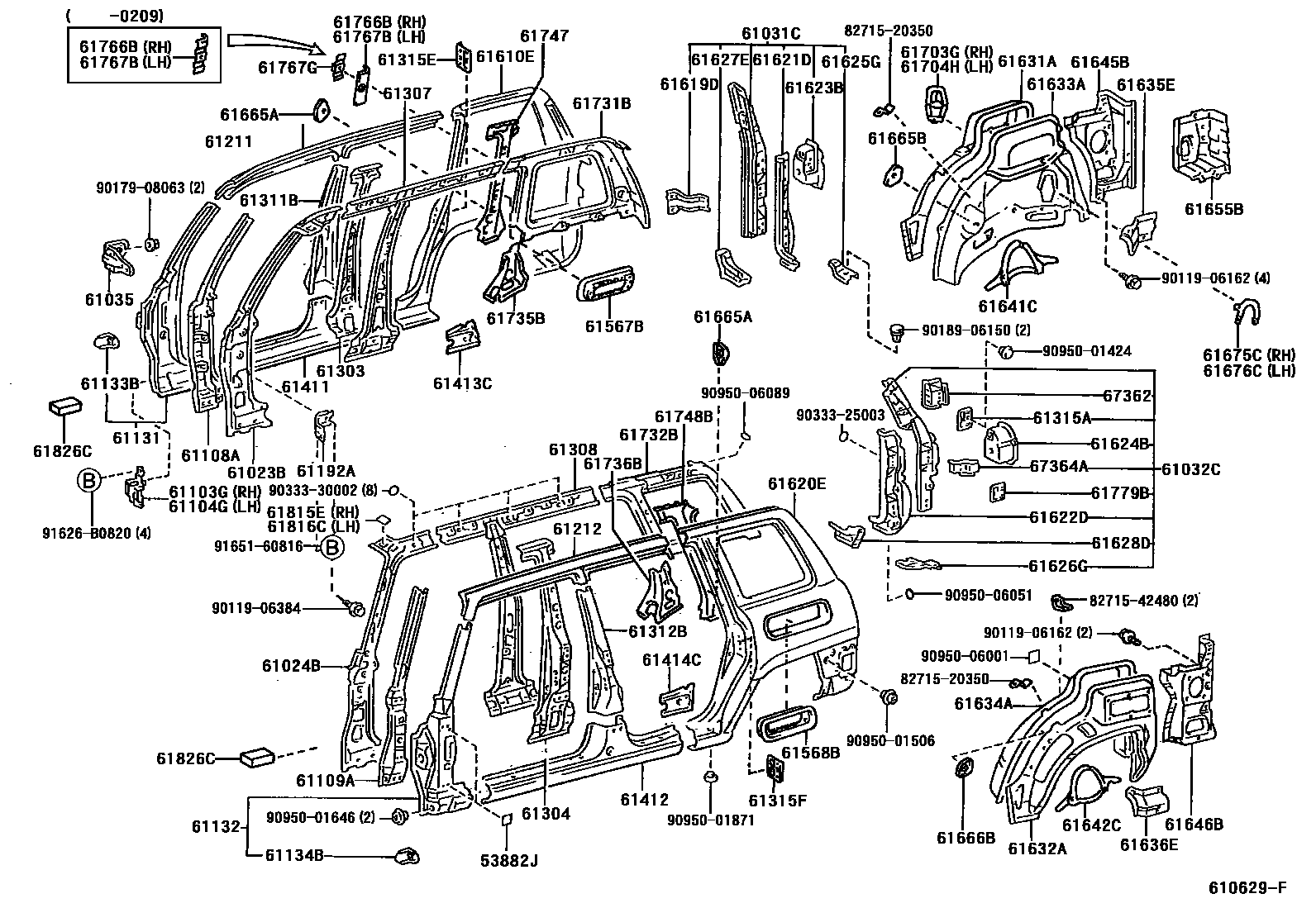

Toyota RAV4 EPC diagram 6151, 侧梁, with 1 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53882J | front fender seal | 53882-22080 |
| 61023B | Right body inner front pillar sub-assembly | 61023-42031 · 61023-42042 |
| 61024B | Left body inner front pillar sub-assembly | 61024-42041 · 61024-42042 |
| 61031C | Right rear side panel extension sub-assembly | 61031-42040 |
| 61032C | Left rear side panel extension sub-assembly | 61032-42040 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-42010 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-42010 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-42010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42040 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42040 |
| 61131 | Right body outer front upper pillar | 61110-42080 |
| 61132 | Left body outer front upper pillar | 61120-42080 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61192A | ECU to No. 2 bracket on cowl side | 61192-42010 |
| 61211 | Roof right outer longitudinal beam | 61211-42020 |
| 61212 | Roof left outer longitudinal beam | 61212-42040 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-42020 · 61303-42110 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-42020 · 61304-42110 |
| 61307 | Right body inner center pillar sub-assembly | 61307-42020 · 61307-42060 · 61307-42900 |
| 61308 | Left body inner center pillar sub-assembly | 61308-42020 · 61308-42060 · 61308-42900 |
| 61311B | Right body outer center pillar | 61311-42011 |
| 61312B | Left body outer center pillar | 61312-42011 |
| 61315A | door latch fixing parts | 61315-16020 |
| 61315E | Right rear door latch fastener | 61315-16020 |
| 61315F | Left rear door latch fastener | 61315-16020 |
| 61411 | Right door outer sill panel | 61411-42070 |
| 61412 | Left door outer sill panel | 61412-42080 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-42020 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-42020 |
| 61567B | Right side hoarding end panel | 61567-42010 |
| 61568B | Left side hoarding end panel | 61568-42010 |
| 61610E | Right rear fender assembly | 61610-42100 |
| 61619D | Right side panel reinforcement | 61619-42020 |
| 61620E | Left rear fender assembly | 61620-42120 |
| 61621D | Back door right opening slot | 61621-42010 |
| 61622D | Rear door left opening slot | 61622-42010 |
| 61623B | Back door right rear opening slot | 61623-42010 |
| 61624B | Back door left rear opening slot | 61624-42010 |
| 61625G | Right rear side panel extension | 61625-42010 |
| 61626G | Left rear side panel extension | 61626-42010 |
| 61627E | Right rear side panel lower extension | 61627-42030 |
| 61628D | Left rear side panel lower extension | 61628-42030 |
| 61631A | Right wheel cover outer panel | 61631-42040 |
| 61632A | Left side wheel cover outer panel | 61632-42050 |
| 61633A | Right wheel housing lining panel | 61633-42030 |
| 61634A | Left side wheel housing lining panel | 61634-42030 |
| 61635E | Right wheel housing extension | 61635-42020 |
| 61636E | Left side wheel housing extension | 61636-42020 |
| 61641C | Right front side wheel housing corner panel | 61641-42010 |
| 61642C | Left front side wheel housing corner panel | 61642-42010 |
| 61645B | Right rear side wheel housing corner panel | 61645-42030 |
| 61646B | Left rear side wheel housing corner panel | 61646-42030 |
| 61655B | Right side wheel cover inner corner panel | 61655-42020 |
| 61665A | Rear seat belt anchor reinforcement | 61665-10010 |
| 61665B | Right seat belt anchor to side wheel arch reinforcement | 61665-10010 |
| 61666B | Left-hand seat belt anchor to side wheel arch reinforcement | 61665-10010 |
| 61675C | Right rear side wheel housing lining panel reinforcement | 61675-42020 |
| 61676C | Left rear side wheel housing lining panel reinforcement | 61675-42020 |
| 61703G | Right side enclosure inner panel sub-assembly | 61703-42010 |
| 61704H | Left side enclosure inner panel sub-assembly | 61704-42010 |
| 61731B | Roof right inner panel | 61731-42021 · 61731-42070 |
| 61732B | Roof left inner panel | 61732-42020 · 61732-42070 |
| 61735B | Right side enclosure inner panel extension | 61735-42020 |
| 61736B | Left side enclosure inner panel extension | 61736-42020 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-42020 · 61747-42030 |
| 61748B | Left rear roof inner reinforcement | 61748-42010 · 61748-42020 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-42020 · 61766-42030 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61766-42020 · 61766-42030 |
| 61767G | Seat belt anchor fastener No. 2 | 61767-42010 |
| 61779B | Rear door opening lower left panel | 61779-42010 |
| 61815E | Right inner upper cover of the roof | 61825-12010 |
| 61816C | Roof left inner upper cover | 61825-12010 |
| 61826C | No. 3 silencer panel gasket | 61826-10010 |
| 67362 | Rear door upper left hinge reinforcement | 67362-42020 |
| 67364A | Back door lower left hinge reinforcement | 67364-42020 |
