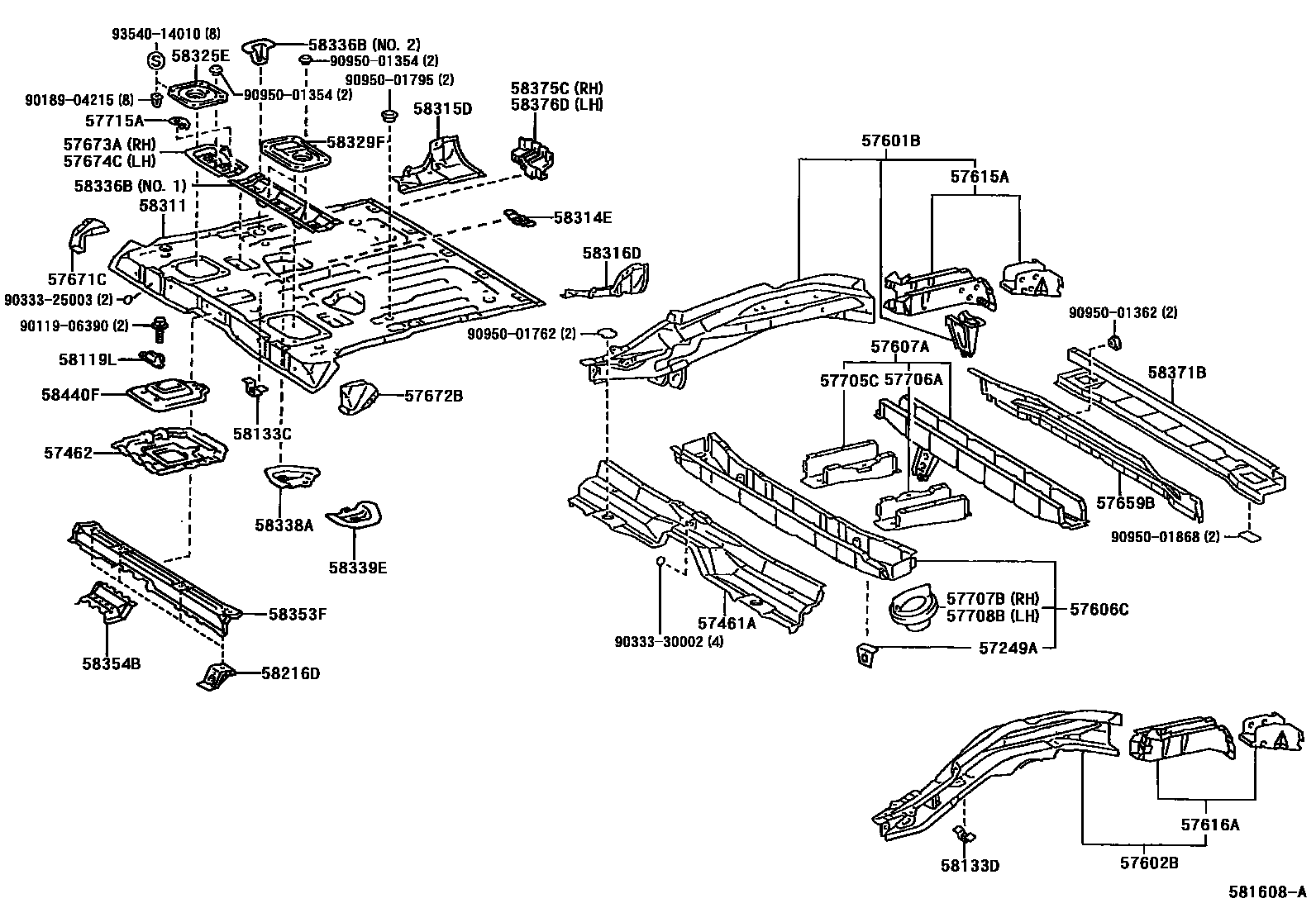

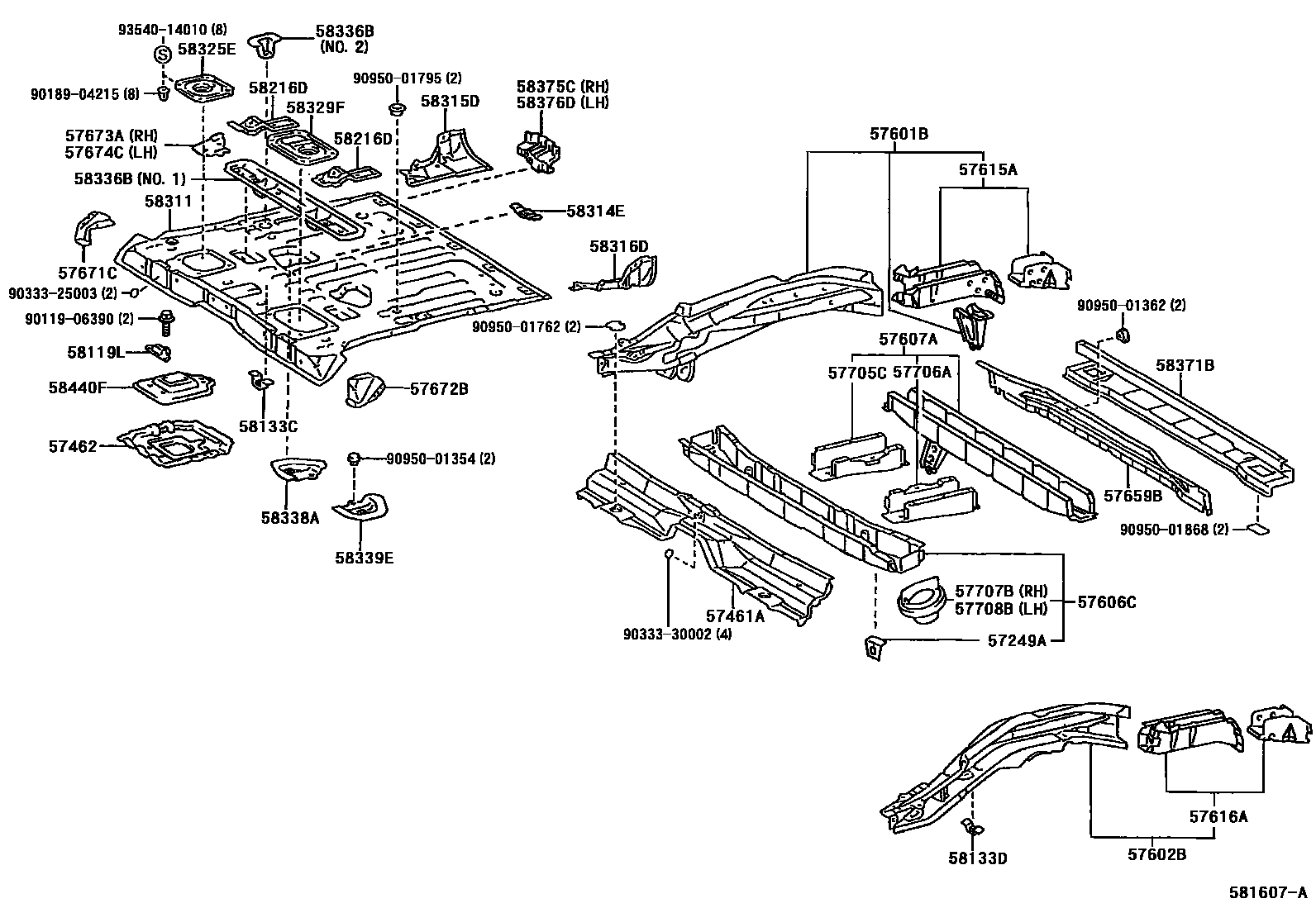

Toyota RAV4 后地板和后地板梁 — Figure 5852
Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57249A | No. 1 Left Flexible Hose Bracket | 57249-10040 |
| 57461A | central floor beam | 57461-42030 |
| 57462 | Center floor beam No. 2 | 57462-42010 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-42080 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-42080 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-42060 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-42040 |
| 57615A | Rear floor right rear longitudinal member | 57615-42902 |
| 57616A | Rear floor left rear longitudinal member | 57616-42902 |
| 57659B | Rear floor inner rear cross member | 57659-42020 |
| 57671C | Rear floor No. 1 cross member right bracket | 57671-42021 |
| 57672B | Rear floor No. 1 cross member left bracket | 57672-42021 |
| 57673A | Rear floor No. 2 cross member right bracket | 57673-42020 · 57673-42030 |
| 57674C | Rear floor No. 2 cross member left bracket | 57674-42020 · 57674-42030 |
| 57705C | Rear suspension cross member right rear mounting bracket | 57705-42030 |
| 57706A | Rear suspension cross member left rear mounting bracket | 57706-42030 |
| 57707B | Rear spring right front bracket sub-assembly | 57707-42010 |
| 57708B | Rear spring left front bracket sub-assembly | 57708-42010 |
| 57715A | Rear suspension cross member right front mounting plate | 57715-42010 |
| 58119L | rear floor side panel | 58119-42020 |
| 58133C | Rear floor insulation pad bracket No. 3 | 58133-22030 |
| 58133D | Front floor No. 3 insulation pad bracket | 58133-22030 |
| 58216D | Rear left seat mounting bracket | 58215-42021 · 61505-42010 |
| 58311 | rear floor pan | 58311-42060 · 58311-42070 · 58311-42100 |
| 58314E | Rear floor left side panel extension | 58317-42020 |
| 58315D | Rear floor pan right extension | 58315-42030 |
| 58316D | Rear floor pan left extension | 58316-42030 |
| 58325E | Rear floor access hole cover | 58325-42020 |
| 58329F | Rear floor manhole cover No. 2 | 58329-42020 |
| 58336B | Rear floor pan reinforcement | 58336-42020 · 58336-42030 · 58336-42050 |
| 58338A | Rear floor floor reinforcement No. 2 | 58338-42010 |
| 58339E | Rear floor bottom plate No. 2 left reinforcement | 58339-42010 |
| 58353F | Rear floor reinforcement No. 3 | 58353-42010 |
| 58354B | Rear floor reinforcement No. 4 | 58354-42010 |
| 58371B | Body outer lower back panel | 58371-42020 |
| 58375C | Right body lower back panel reinforcement | 58375-42010 |
| 58376D | Left body lower back panel reinforcement | 58376-42020 |
| 58440F | Battery inspection hole cover assembly | 58440-42010 |
