Toyota RAV4 前地板和前地板梁 — Figure 5851

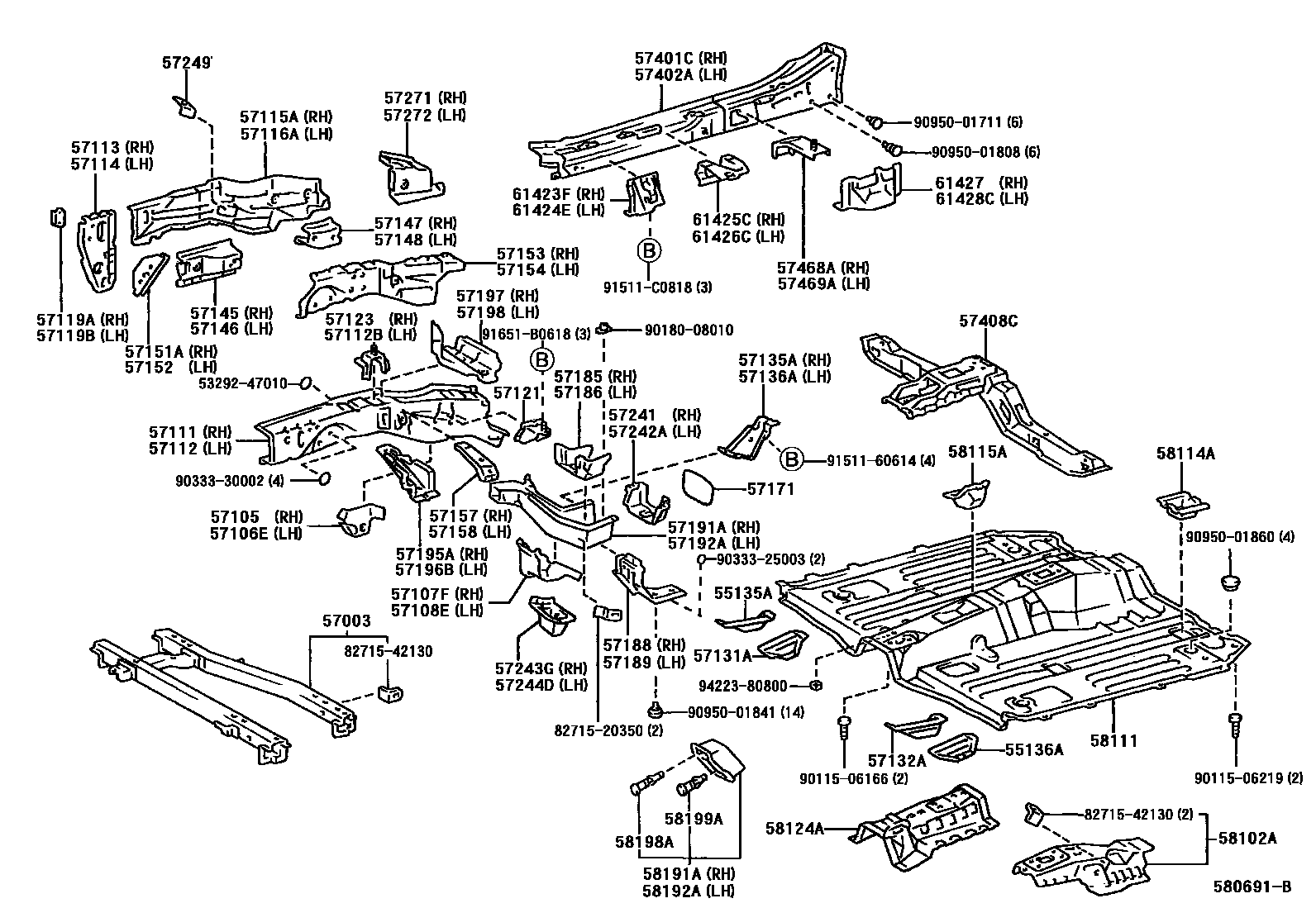

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 1 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55135A | Right driver's footrest bracket | 55135-42010 |
| 55136A | Left driver's footrest bracket | 55136-42010 |
| 57003 | Right front longitudinal beam sub-assembly | 57003-42020 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-42020 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-42011 |
| 57107F | Right front suspension cross member front mounting bracket sub-assembly | 57107-42010 |
| 57108E | Left front suspension cross member front mounting bracket sub-assembly | 57108-42010 |
| 57111 | Right front longitudinal beam | 57111-42040 |
| 57112 | Left front longitudinal beam | 57112-42040 |
| 57112B | Left support rod bracket sub-assembly | 57122-42020 |
| 57113 | Right front longitudinal beam extension | 57113-42030 |
| 57114 | Left front longitudinal beam extension | 57114-42030 |
| 57115A | Right front longitudinal beam outer panel | 57115-42011 |
| 57116A | Left front longitudinal beam outer panel | 57116-42011 |
| 57119A | Right front longitudinal beam front panel | 57119-42010 |
| 57119B | Left front longitudinal beam front panel | 57119-42010 |
| 57121 | Right front body mounting bracket | 57121-42020 |
| 57123 | Right front longitudinal beam bracket | 57123-42020 |
| 57131A | Front right rear bracket | 57131-42010 |
| 57132A | Front left rear bracket | 57132-42010 |
| 57135A | Front floor right bracket | 57135-42010 |
| 57136A | Front floor left bracket | 57136-42010 |
| 57145 | Right front longitudinal beam center panel | 57145-42010 |
| 57146 | Left front longitudinal beam center panel | 57146-42010 |
| 57147 | Right front longitudinal beam rear panel | 57147-42010 |
| 57148 | Left front longitudinal beam rear panel | 57148-42010 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-42030 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-42030 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57153-42040 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57154-42010 |
| 57157 | No. 4 right front longitudinal beam reinforcement | 57157-42030 |
| 57158 | No. 4 left front longitudinal beam reinforcement | 57158-42020 |
| 57171 | Floor beam bracket No. 1 | 57171-42010 |
| 57185 | No. 1 right front longitudinal beam inner rear reinforcement | 57185-42010 |
| 57186 | No. 1 left front longitudinal beam inner rear reinforcement | 57186-42010 |
| 57188 | Right front longitudinal beam extension reinforcement | 57188-42020 |
| 57189 | Left front longitudinal beam extension reinforcement | 57189-42010 |
| 57191A | Right rear longitudinal member inside front floor | 57191-42040 |
| 57192A | Left rear longitudinal member inside front floor | 57192-42040 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-42020 |
| 57196B | Left front longitudinal beam front reinforcement | 57196-42020 |
| 57197 | Right front torsion box section piece | 57197-42040 |
| 57198 | Left front anti-torsion box section piece | 57198-42040 |
| 57241 | No. 5 right front longitudinal beam reinforcement | 57241-42030 |
| 57242A | No. 5 left front longitudinal beam reinforcement | 57242-42030 |
| 57243G | No. 6 right front longitudinal beam reinforcement | 57243-42020 |
| 57244D | No. 6 left front longitudinal beam reinforcement | 57244-42020 |
| 57249 | No. 1 Flexible Hose Bracket | 57249-10040 |
| 57271 | Steering housing support beam right extension | 57271-42010 |
| 57272 | Steering casing support beam left extension | 57272-42010 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-42080 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-42080 |
| 57408C | Front floor cross member sub-assembly | 57408-42050 |
| 57468A | Front right seat outer rear bracket | 57468-42020 |
| 57469A | Front left seat outer rear bracket | 57469-42020 |
| 58102A | Front floor reinforcement sub-assembly | 58102-42040 |
| 58111 | front floor pan | 58111-42908 |
| 58114A | front floor reinforcement | 58114-42020 |
| 58115A | front floor reinforcement | 58115-42020 |
| 58124A | Install reinforcements in front of the cowl | 58124-42010 |
| 58191A | Front floor right footrest | 58191-42020 |
| 58192A | Front floor left footrest | 58192-42020 |
| 58198A | No. 1 footrest clip | 58198-42020 |
| 58199A | Footrest clip No. 2 | 58199-42020 |
| 61423F | Right side door sill panel No. 3 reinforcement | 61423-42020 |
| 61424E | Left side door sill panel No. 3 reinforcement | 61424-42020 |
| 61425C | Right side door sill panel No. 4 reinforcement | 61425-42010 |
| 61426C | Left side door sill panel No. 4 reinforcement | 61426-42010 |
| 61427 | Right side door sill panel No. 5 reinforcement | 61427-42010 |
| 61428C | Left side door sill panel No. 5 reinforcement | 61428-42010 |
