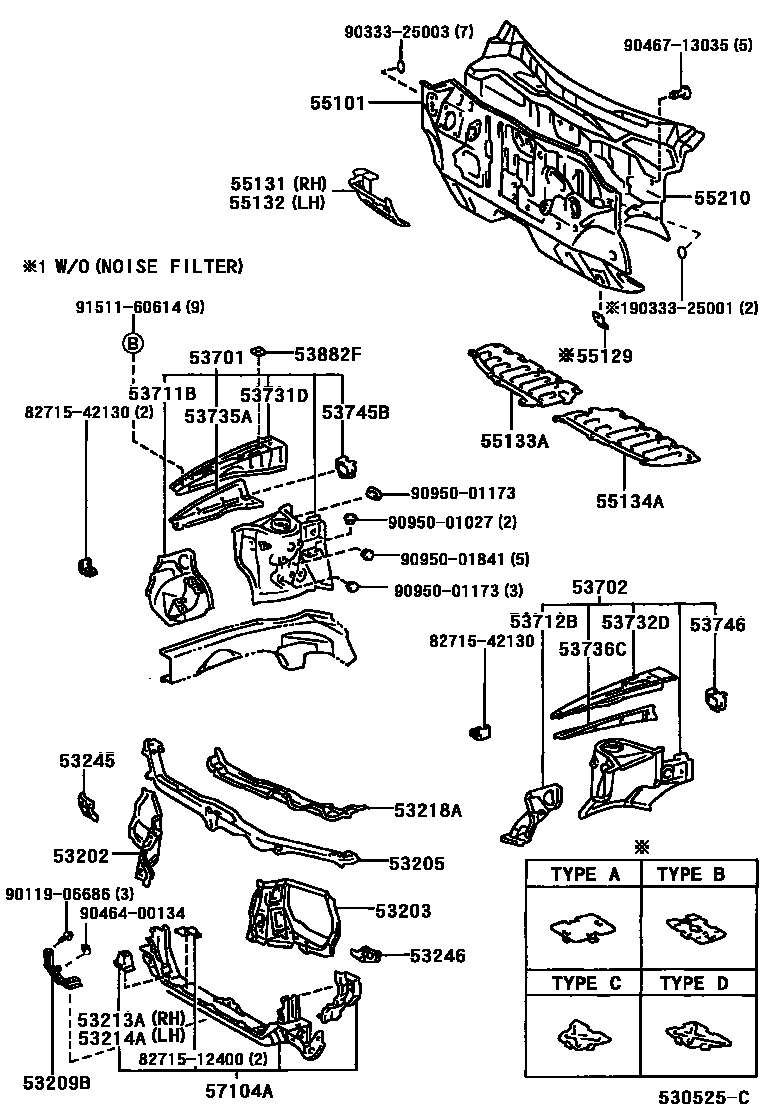

Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355
Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53211-42020 |
| 53203 | Radiator left bracket sub-assembly | 53212-42020 |
| 53205 | Radiator upper bracket sub-assembly | 53205-42011 · 53205-42030 · 53205-42050 |
| 53209B | Engine cover lock bracket sub-assembly | 53209-42010 |
| 53213A | Radiator upper right bracket | 53213-42010 |
| 53214A | Radiator upper left bracket | 53214-42010 |
| 53218A | Radiator lower support | 53218-42030 |
| 53245 | Right headlight bracket | 53245-42010 |
| 53246 | Left headlight bracket | 53246-42010 |
| 53701 | Right front fender fender sub-assembly | 53701-42070 · 53701-42080 |
| 53702 | Left front fender fender sub-assembly | 53702-42050 |
| 53711B | Right front fender front fender | 53711-42010 |
| 53712B | Left front fender front fender | 53712-42020 |
| 53731D | Right front fender to cowl side upper beam | 53731-42010 · 53731-42030 |
| 53732D | Left front fender to cowl side upper beam | 53732-42010 |
| 53735A | Right front fender to front side lower beam | 53735-42010 |
| 53736C | Left front fender to front side lower beam | 53736-42010 |
| 53745B | Right front fender fender rear reinforcement | 53745-42010 |
| 53746 | Left front fender rear reinforcement | 53746-42010 |
| 53882F | front fender seal | 53882-16030 |
| 55101 | Front apron sub-assembly | 55101-42220 · 55101-42250 |
| 55129 | Front panel hole cover | 55129-12030 · 55129-20010 · 55129-30020 · 55139-30040 |
| 55131 | Front apron reinforcement | 55131-42020 |
| 55132 | No. 2 cowl panel reinforcement | 55132-42020 |
| 55133A | Right reinforcement (front wall to floor) | 55133-42020 |
| 55134A | Left side reinforcement (front wall to floor) | 55134-42030 |
| 55210 | Front wall insulation pad assembly | 55210-42040 |
| 57104A | Front cross member sub-assembly | 57104-42030 |
