Toyota RAV4 发动机盖锁和铰链 — Figure 5354

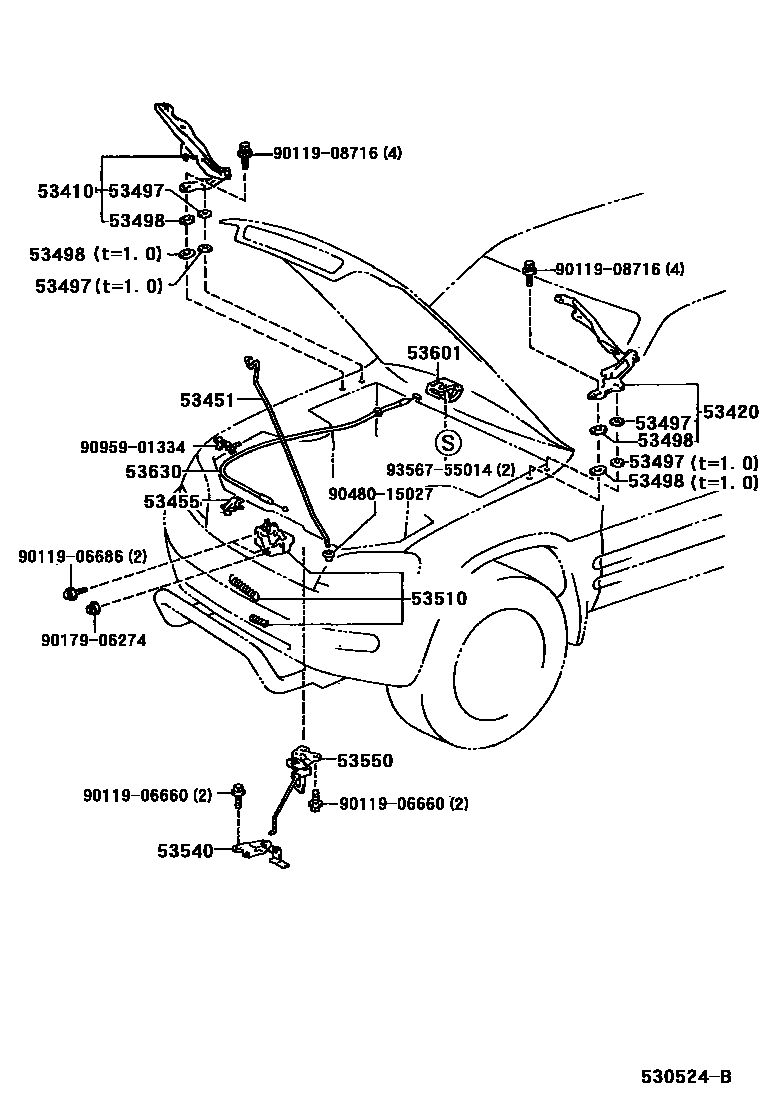

Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-42010 |
| 53420 | Engine cover left hinge assembly | 53420-42010 |
| 53451 | Engine cover support rod | 53451-42031 |
| 53455 | Engine cover support rod clip | 53455-12060 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12050 · 53497-12070 |
| 53498 | No. 2 engine cover hinge gasket | 53498-12050 · 53498-12070 |
| 53510 | Engine cover lock assembly | 53510-42020 |
| 53540 | Auxiliary buckle release lever assembly | 53540-42010 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-42010 |
| 53630 | Engine hood lock control cable assembly | 53630-42010 |
