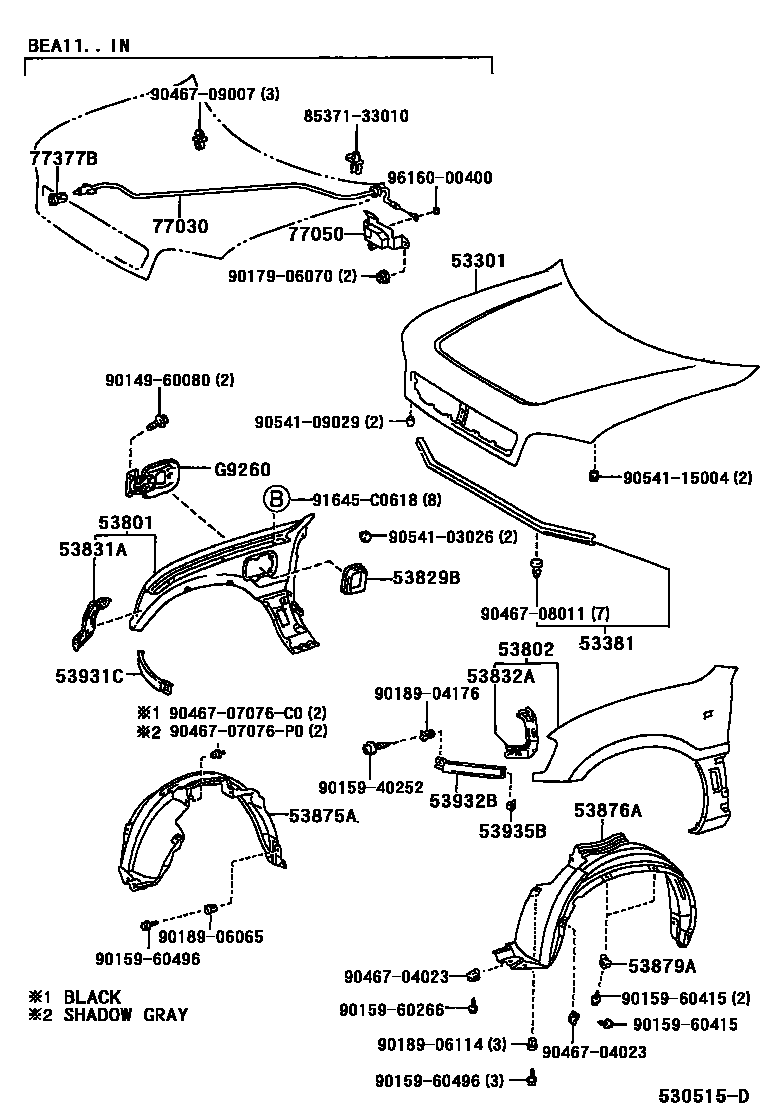

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-42012 · 53301-42020 |
| 53381 | Engine cover to radiator bracket seal | 53381-42010 |
| 53801 | Right front fender sub-assembly | 53801-42090 · 53801-42110 |
| 53802 | Left front fender sub-assembly | 53802-42090 |
| 53829B | Right front fender lower protection piece | 53829-42010 |
| 53831A | Right front fender side panel | 53831-42010 |
| 53832A | Left front fender side panel | 53832-42010 |
| 53875A | Right front fender lining | 53875-42030 · 53875-42040 |
| 53876A | Left front fender lining | 53876-42030 · 53876-42040 |
| 53879A | Front fender lining fixing parts | 53879-14020 |
| 53931C | front board | 53931-42010 |
| 53932B | Left front end panel | 53932-42010 |
| 53935B | Front panel protector | 53935-42010 |
| 77030 | Electric vehicle charger cover lock control cable sub-assembly | 77030-42010 |
| 77050 | Electric vehicle charger cover lock control opener assembly | 77050-42010 |
| 77377B | Electric Vehicle Charger Cover Lock Fixture | 77377-12050 |
| G9260 | Electric vehicle charger cover assembly | G9260-42010 |
