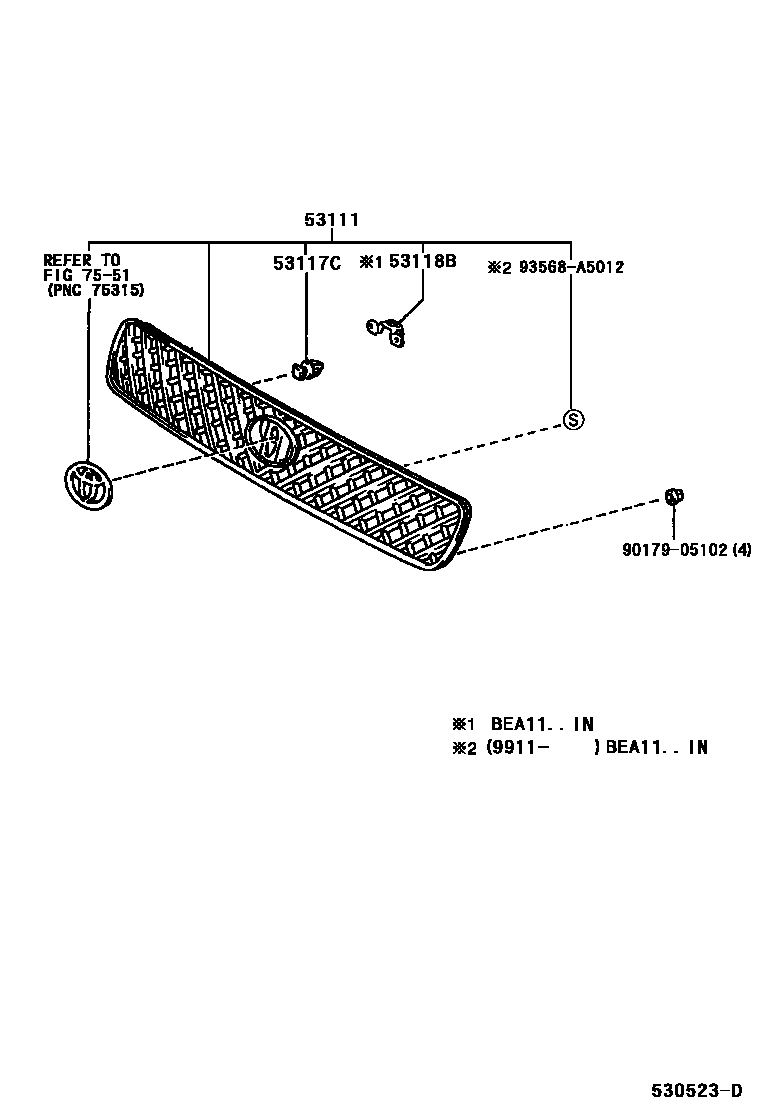

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53101-42060 · 53101-42080 · 53101-42090 |
| 53117C | Radiator grille fixing No. 1 | 53117-42010 |
| 53118B | Radiator grille No. 2 right side fixing piece | 53118-42010 |
