Toyota RAV4 后保险杠及附件 — Figure 5253

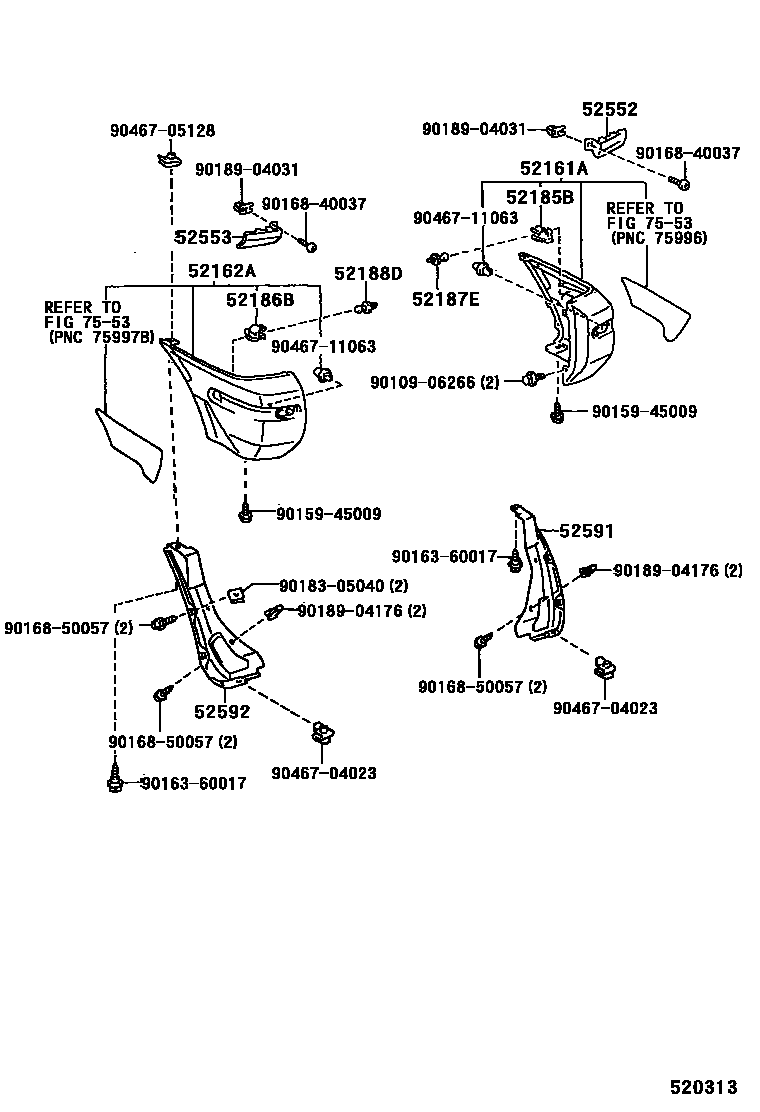

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161A | Rear bumper right side gap filler | 52161-42050 |
| 52162A | Rear bumper left insert | 52162-42050 |
| 52185B | Installation support on the right side of the rear bumper | 52185-42010 |
| 52186B | Rear bumper left side mounting support | 52185-42010 |
| 52187E | Rear bumper right positioning guide rod | 52187-12160 |
| 52188D | Rear bumper left positioning guide rod | 52187-12160 |
| 52552 | Arc filler on the right side of the rear bumper | 52506-42010 |
| 52553 | Rear bumper left curved filler | 52507-42010 |
| 52591 | Rear bumper right seal | 52591-42011 |
| 52592 | Rear bumper left seal | 52592-42011 |
