Toyota RAV4 前保险杠及附件 — Figure 5252

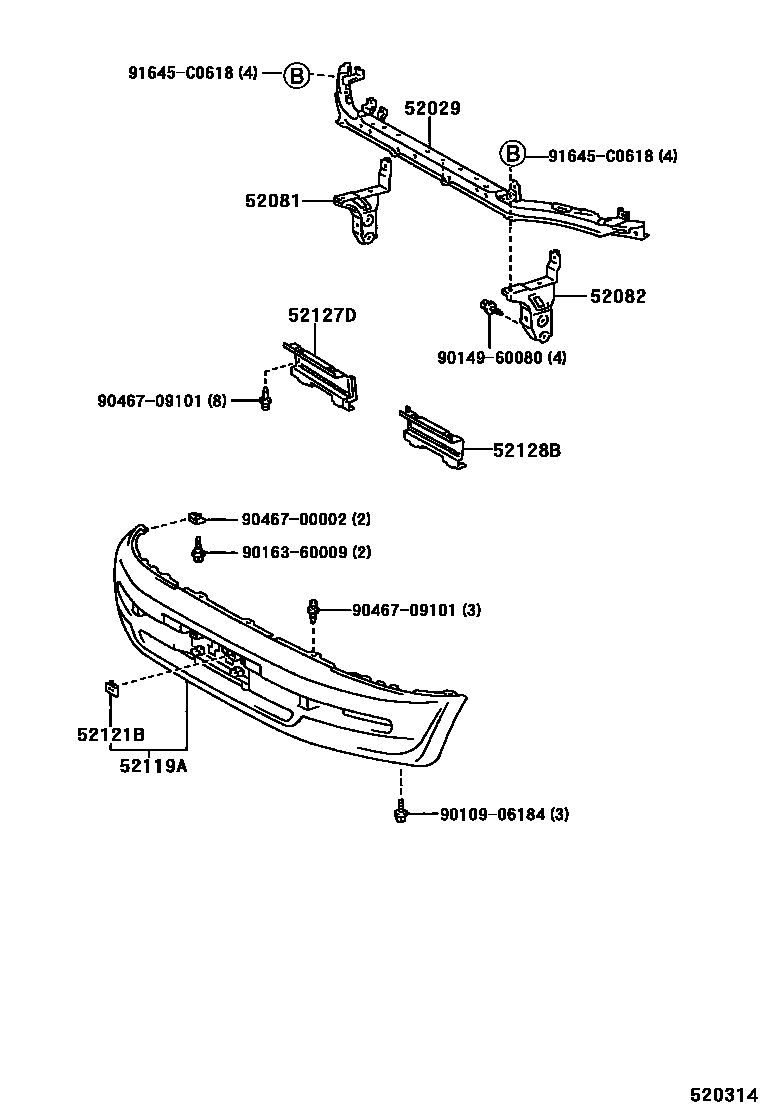

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42050 |
| 52081 | Front bumper stay sub-assembly | 52145-42010 |
| 52082 | Front bumper left stay sub-assembly | 52146-42010 |
| 52119A | front bumper cover | 52119-42902 |
| 52121B | Front license plate mounting bracket | 52121-42010 |
| 52127D | Front bumper right hole cover | 52127-42020 |
| 52128B | Front bumper left hole cover | 52128-42020 |
