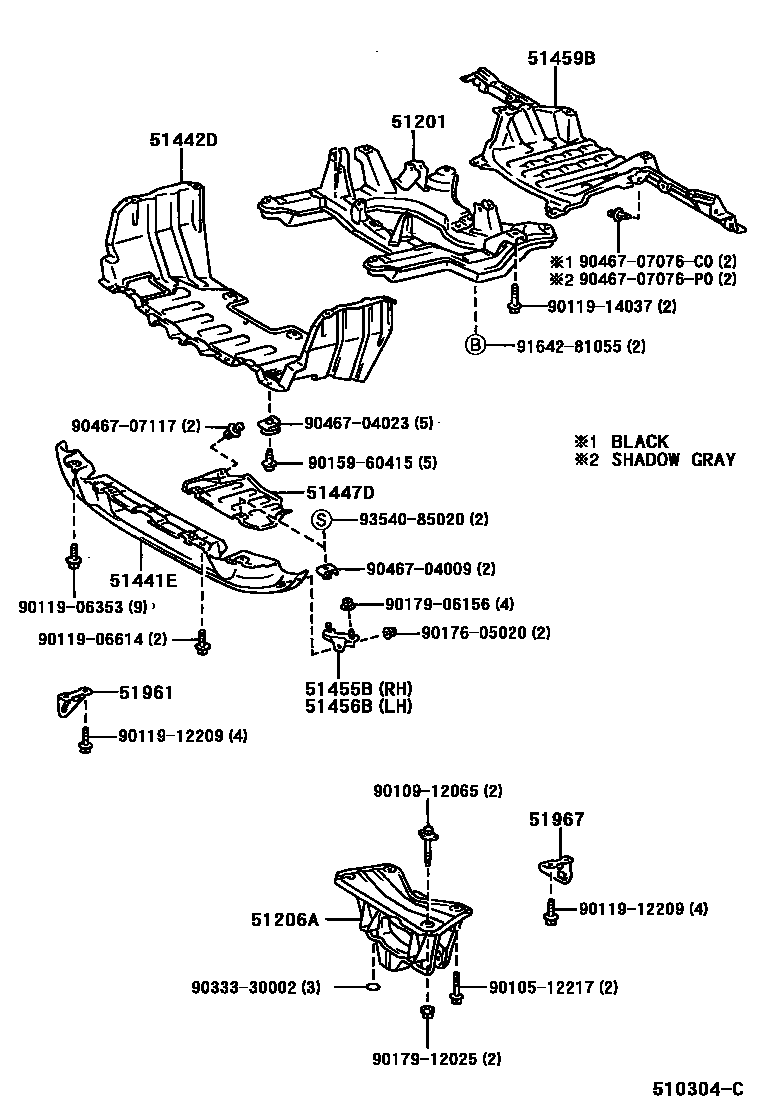

Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152
Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-42030 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42030 |
| 51441E | No. 1 motor bottom cover | 51440-42010 |
| 51442D | No. 2 motor bottom cover | 51442-42050 |
| 51447D | No. 4 engine center bottom cover | 51447-42010 |
| 51455B | Engine cover right rear bracket | 51455-42010 |
| 51456B | Engine cover left rear bracket | 51456-42010 |
| 51459B | Motor bottom rear protective cover | 51459-42020 |
| 51961 | No. 1 hook | 51961-42010 · 51962-42010 |
| 51967 | Rear transport hook | 51967-42010 |
