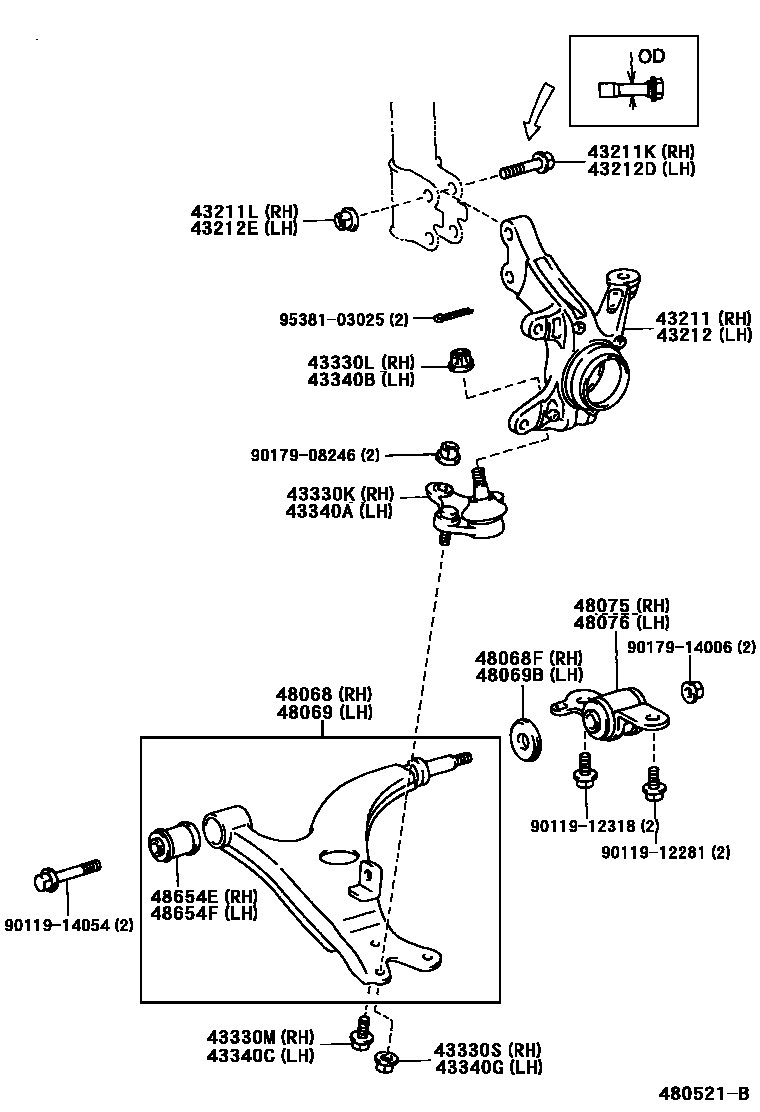

Toyota RAV4 前桥控制臂和转向节 — Figure 4802
Toyota RAV4 EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-42050 |
| 43211K | Bolt (for right steering knuckle) | 90105-15001 |
| 43211L | Nut (for right steering knuckle) | 90179-15006 |
| 43212 | left steering knuckle | 43212-42050 |
| 43212D | Bolt (for left steering knuckle) | 90105-15001 |
| 43212E | Nut (for left steering knuckle) | 90179-15006 |
| 43330K | Right front lower ball joint assembly | 43330-49025 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-12122 |
| 43330S | Nut (for right front lower ball joint) | 90179-12052 |
| 43340A | Left front lower ball joint assembly | 43330-49025 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-12122 |
| 43340G | Nut (for left front lower ball joint) | 90179-12052 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-42012 |
| 48068F | Crash pad block (for right front suspension No. 1 lower arm) | 90948-02090 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-42012 |
| 48069B | Crash pad block (for left front suspension No. 1 lower arm) | 90948-02090 |
| 48075 | No. 1 lower arm bracket sub-assembly | 48075-42040 |
| 48076 | No. 2 lower arm bracket sub-assembly | 48076-42040 |
| 48654E | Right front No. 1 lower arm bushing | 48654-42020 |
| 48654F | Left front No. 1 lower arm bushing | 48654-42020 |
