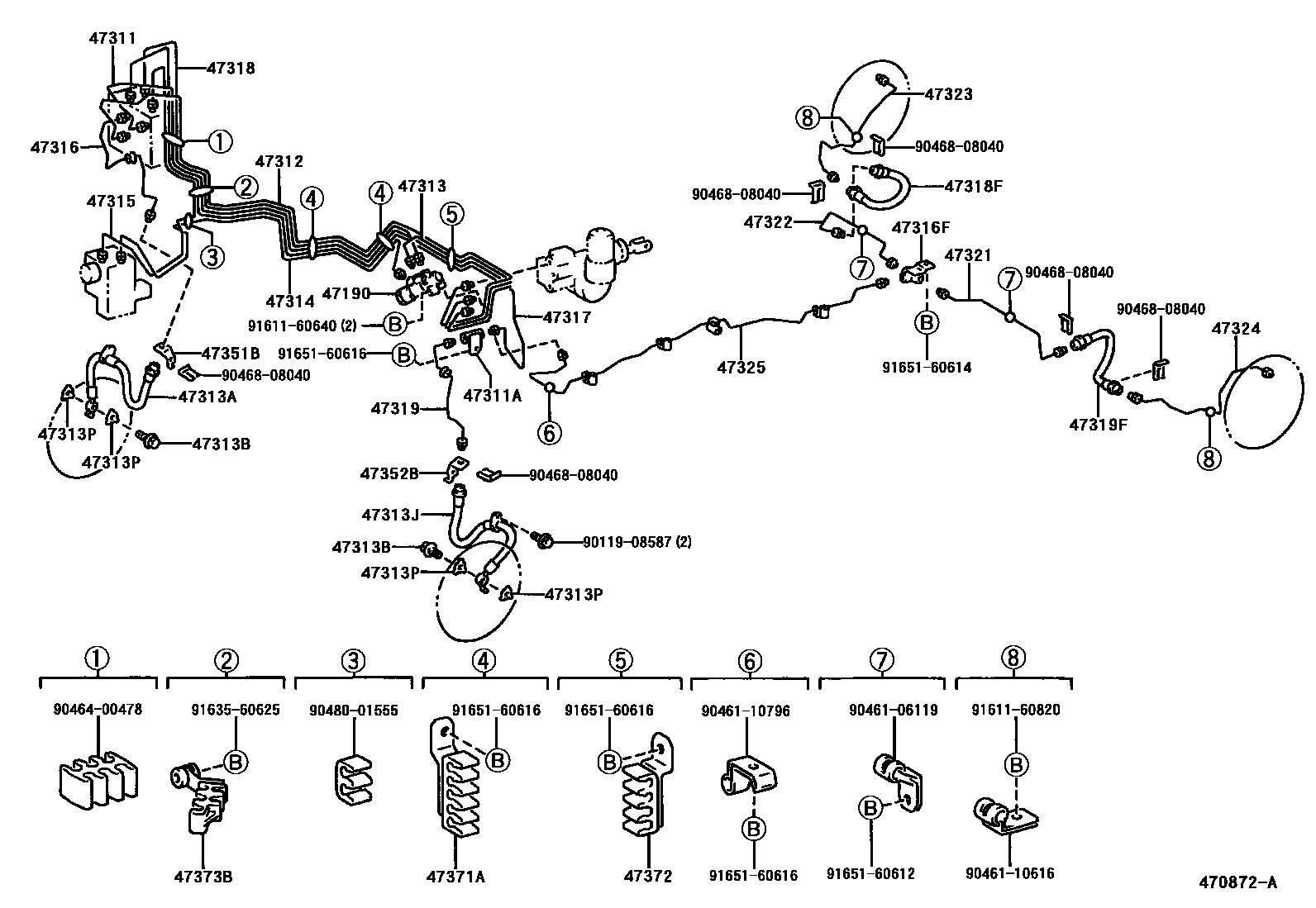

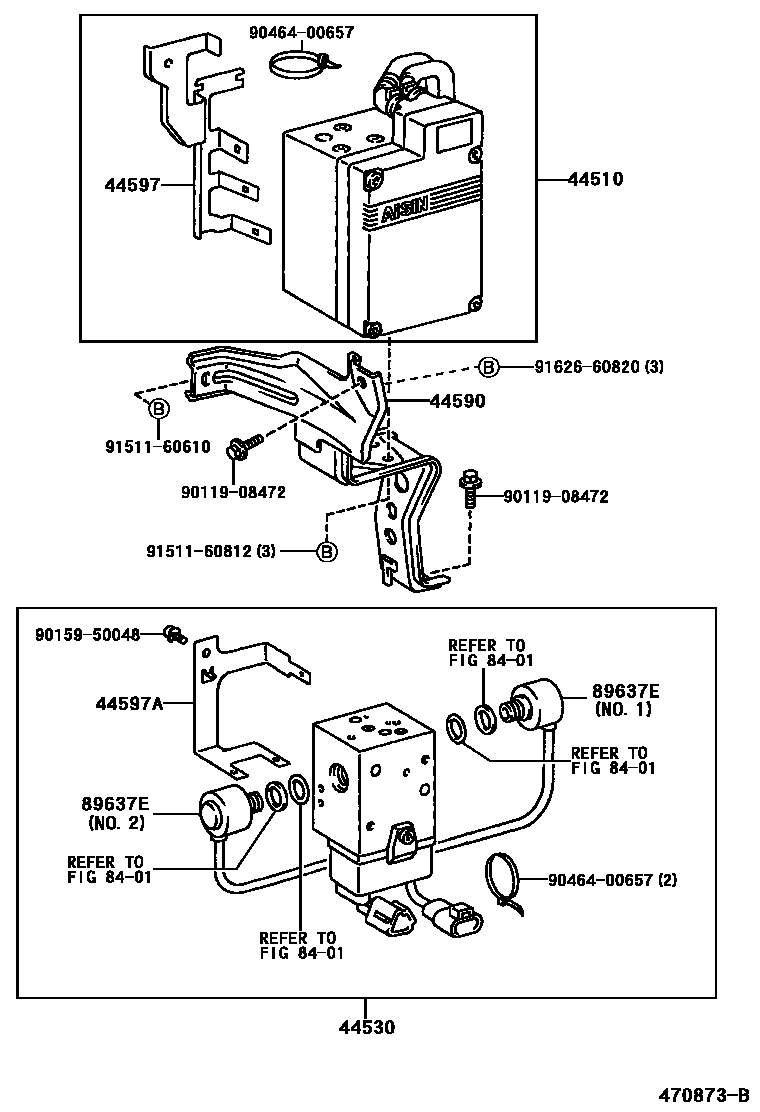

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-42030 |
| 44530 | Brake actuator control valve assembly | 44530-42020 |
| 44590 | Brake actuator bracket assembly | 44590-42050 |
| 44597 | No. 1 brake actuator connector clip | 44597-42020 |
| 44597A | No. 2 brake actuator connector clip | 44597-42030 |
| 47190 | Proportional and bypass valve assembly | 47190-60050 |
| 47311 | No. 1 front brake pipe | 47311-42070 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10167 |
| 47312 | No. 2 front brake pipe | 47312-42110 |
| 47313 | No. 3 front brake pipe | 47313-42100 |
| 47313A | No. 1 front flexible hose | 90947-02988 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313J | No. 2 front flexible hose | 90947-02989 |
| 47313P | Gasket (for front flex hose) | 47389-30010 |
| 47314 | No. 4 front brake pipe | 47314-42060 |
| 47315 | No. 5 front brake pipe | 47315-42100 |
| 47316 | No. 6 front brake pipe | 47316-42010 |
| 47316F | Tee pipe (for rear brake pipe) | 90413-10004 |
| 47317 | No. 7 front brake pipe | 47317-42060 |
| 47318 | No. 8 front brake pipe | 47318-42060 |
| 47318F | Right rear flexible hose | 90947-02990 |
| 47319 | No. 9 front brake pipe | 47319-42010 |
| 47319F | Left rear flexible hose | 90947-02990 |
| 47321 | No. 1 rear brake pipe | 47321-42090 |
| 47322 | No. 2 rear brake pipe | 47322-42060 |
| 47323 | No. 3 rear brake pipe | 47323-42020 |
| 47324 | No. 4 rear brake pipe | 47324-42020 |
| 47325 | No. 5 rear brake pipe | 47325-42020 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42020 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42020 |
| 47371A | No. 1 brake pipe clamp | 47371-20070 |
| 47372 | No. 2 brake pipe clamp | 47371-20250 |
| 47373B | No. 3 brake pipe clamp | 47371-42060 |
| 89637E | oil pressure sensor | 89637-42030 · 89637-42040 |
