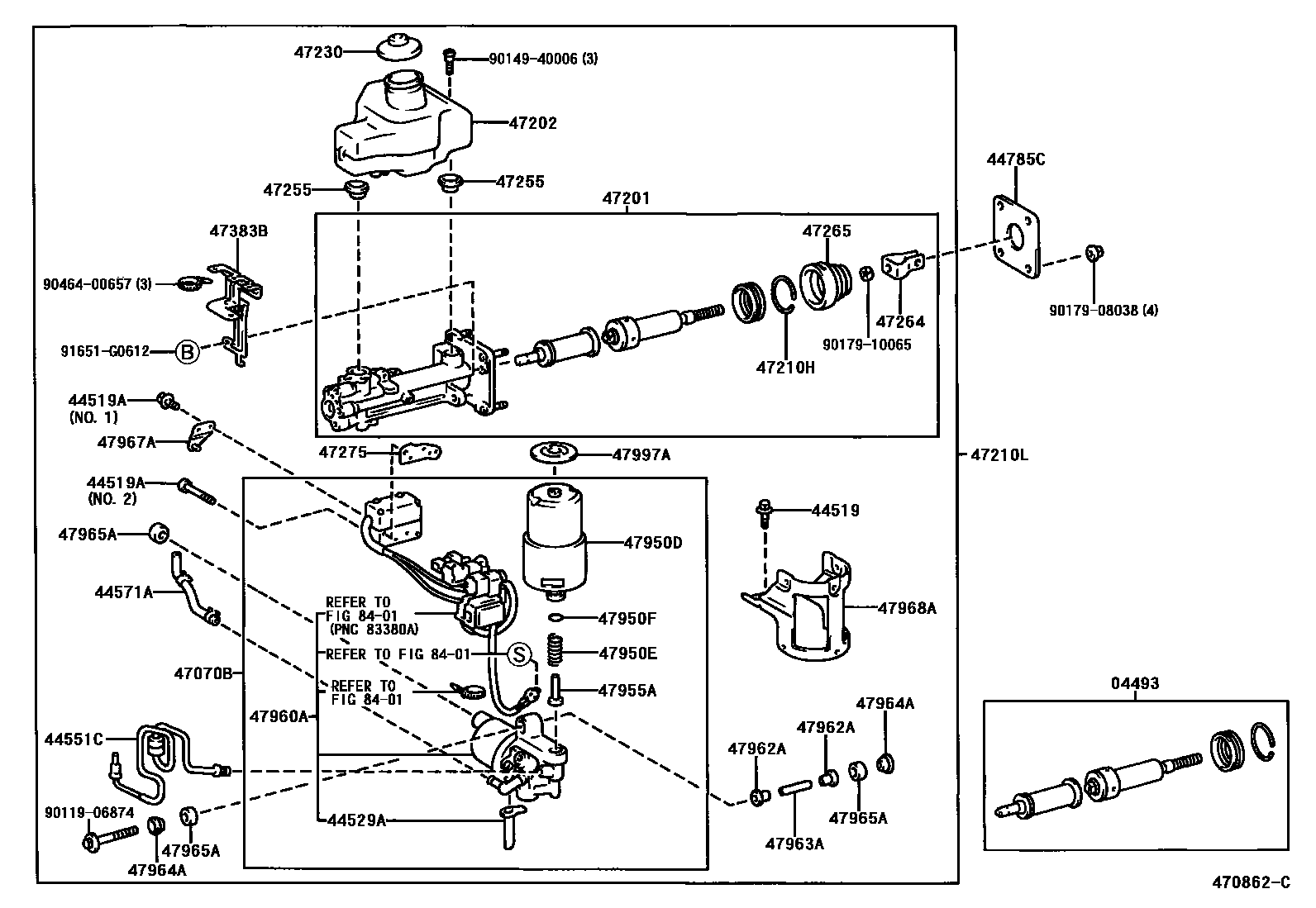

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-42040 |
| 44519 | brake actuator bolt | 44519-30010 |
| 44519A | Bolt (for brake booster pump) | 44519-24020 · 44519-42010 |
| 44529A | brake actuator breather hose | 44529-42010 |
| 44551C | No. 1 brake actuator pipe | 44551-42010 · 44551-42020 |
| 44571A | No. 1 brake actuator hose | 44571-42010 |
| 44785C | brake booster pad | 44785-32010 |
| 47070B | Brake booster pump assembly with pressure accumulator | 47070-42010 |
| 47201 | Brake master cylinder sub-assembly | 47025-42010 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-42050 |
| 47210H | Snap ring (for brake master cylinder) | 90520-32012 |
| 47210L | Brake booster assembly with master cylinder | 47210-42020 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-24010 |
| 47265 | Master pump dust jacket | 90029-70002 |
| 47275 | brake master cylinder gasket | 47275-42010 |
| 47383B | Connector bracket | 47383-42010 |
| 47950D | Brake booster pressure accumulator assembly | 47950-30010 |
| 47950E | Compression spring (for brake booster accumulator) | 90501-16160 |
| 47950F | O-ring (for brake booster pressure accumulator) | 90301-13014 |
| 47955A | brake booster accumulator pipe | 47955-30010 |
| 47960A | Brake booster pump assembly | 47960-42010 |
| 47962A | brake booster pump collar | 47962-24010 · 47962-60010 |
| 47963A | brake booster pump shaft | 47963-24010 |
| 47964A | brake booster pump gasket | 47964-24010 |
| 47965A | brake booster pump bushing | 47965-24010 |
| 47967A | No. 1 brake booster pump bracket | 47967-42020 |
| 47968A | No. 2 brake booster pump bracket | 47968-42020 |
| 47997A | Accumulator No. 1 Warning Label | 47997-24020 |
