Toyota RAV4 Parking Brake & Cable — Figure 4601

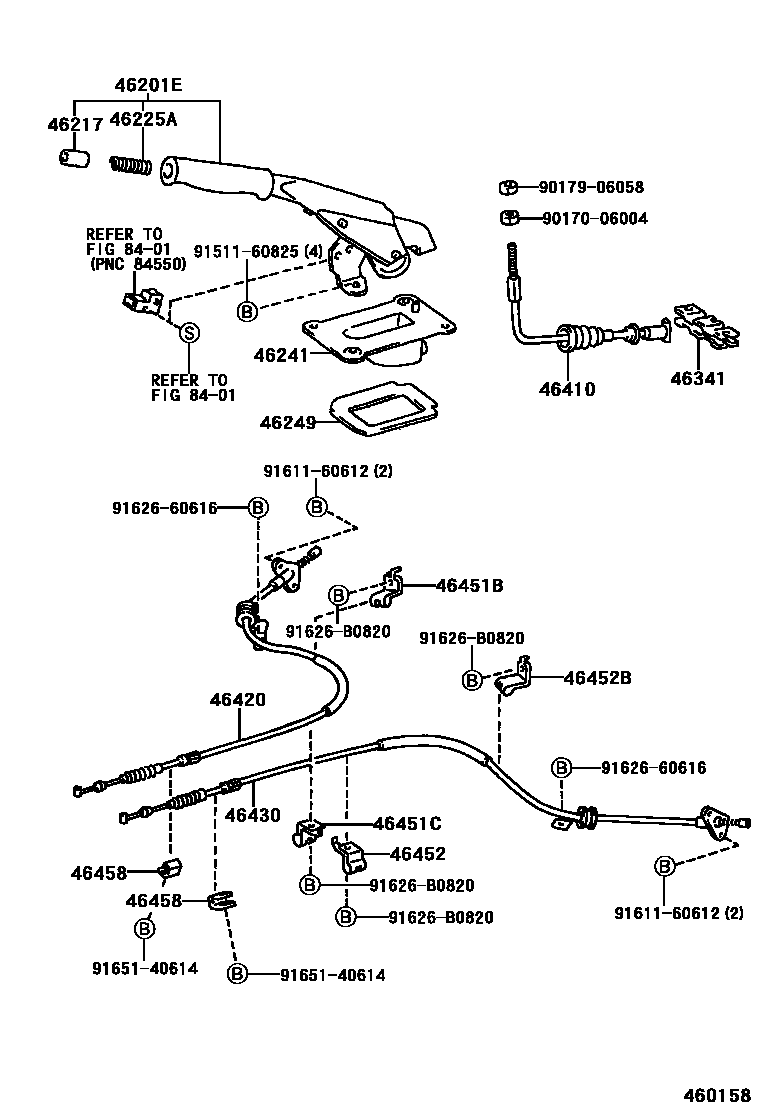

Toyota RAV4 EPC diagram 4601, Parking Brake & Cable, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10069 |
| 46241 | Parking brake lever dust cover | 46241-20050 |
| 46249 | Parking brake hole cover | 46249-20030 |
| 46341 | Parking brake balancer | 46341-24010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-42030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-42060 |
| 46430 | Parking brake No. 3 cable assembly | 46430-42060 |
| 46451B | Parking brake cable bracket | 46451-42050 |
| 46451C | Parking brake cable bracket No. 1 | 46451-42040 |
| 46452 | Parking brake cable bracket No. 2 | 46452-42040 |
| 46452B | No. 2 cable bracket | 46452-42050 |
| 46458 | Cable fixings | 46458-28010 |
