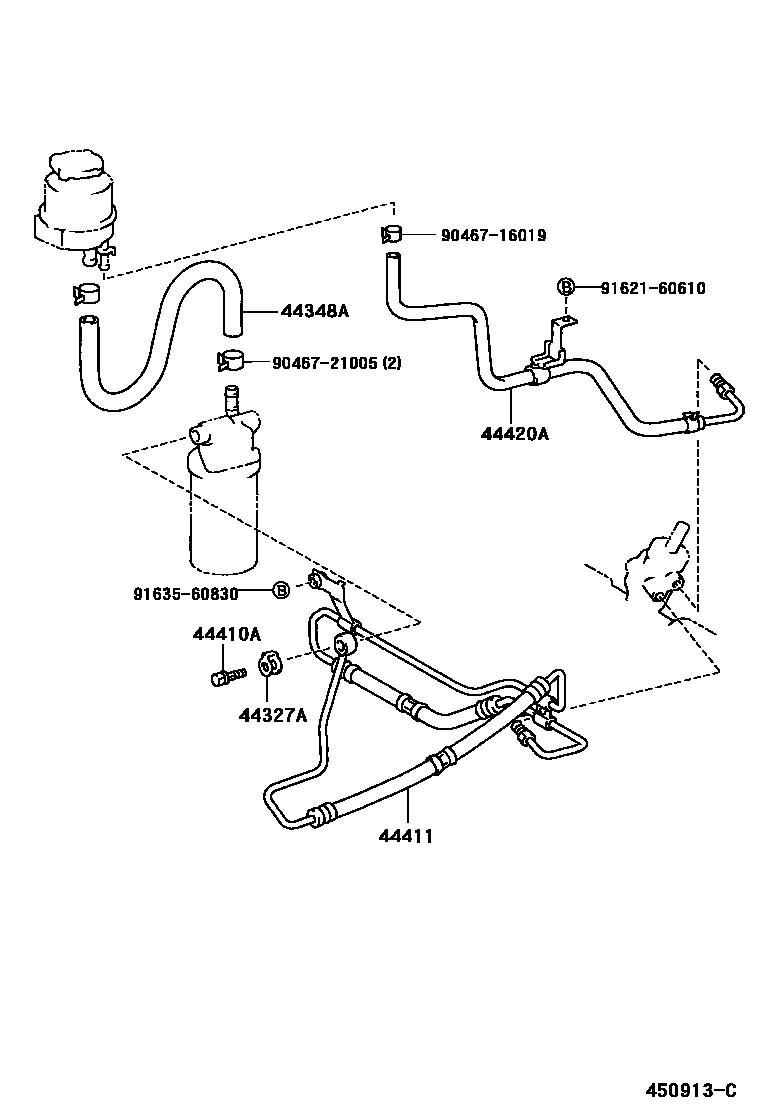

Toyota RAV4 动力转向配管 — Figure 4503
Toyota RAV4 EPC diagram 4503, 动力转向配管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-42030 |
| 44410A | Connector bolt (for pressure supply pipe) | 96341-41603 |
| 44411 | pressure supply hose | 44411-42020 |
| 44420A | Oil return pipe assembly | 44420-42030 |
