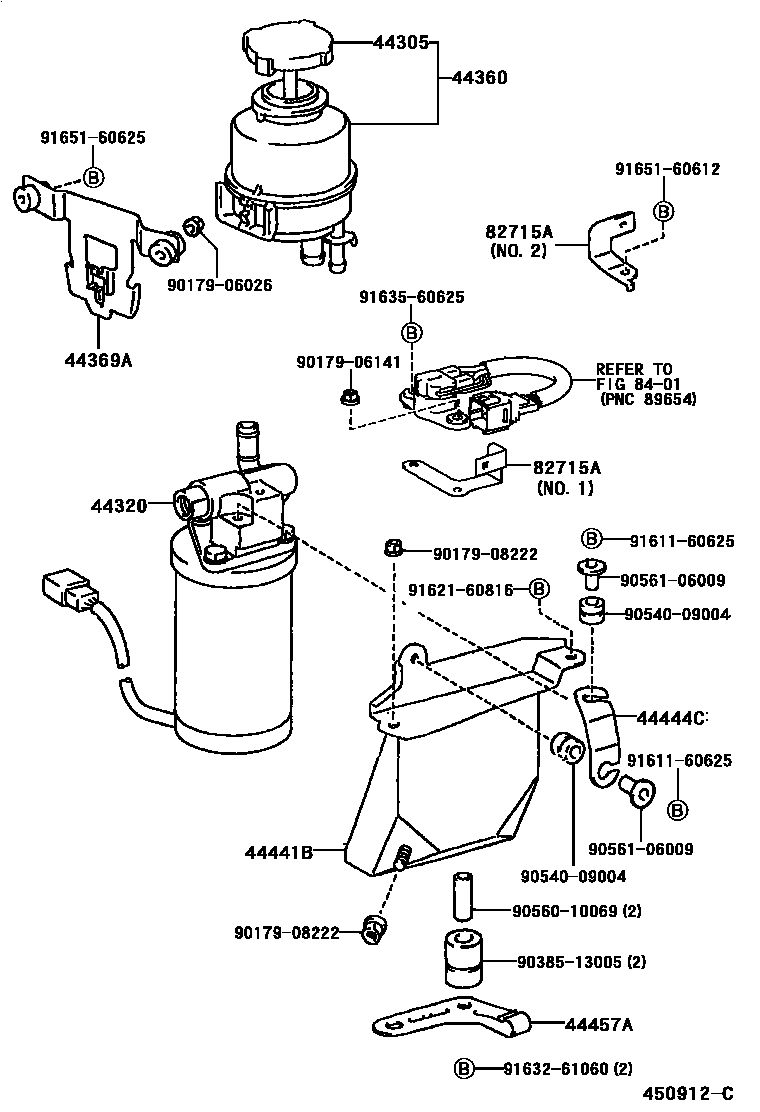

Toyota RAV4 叶片泵和储油罐(动力转向) — Figure 4502
Toyota RAV4 EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-42010 |
| 44320 | Vane pump assembly | 44320-42040 |
| 44360 | Vane pump oil storage tank assembly | 44360-42020 |
| 44369A | No. 1 oil storage tank bracket | 44390-42030 |
| 44441B | Pump front bracket | 44441-42010 |
| 44444C | Vane pump back stay | 44444-42010 |
| 44457A | Vane pump tube bracket | 44457-42020 |
| 82715A | Wire harness clamp bracket | 82715-42360 · 82715-42420 |
