Toyota RAV4 Steering Column & Shaft — Figure 4501

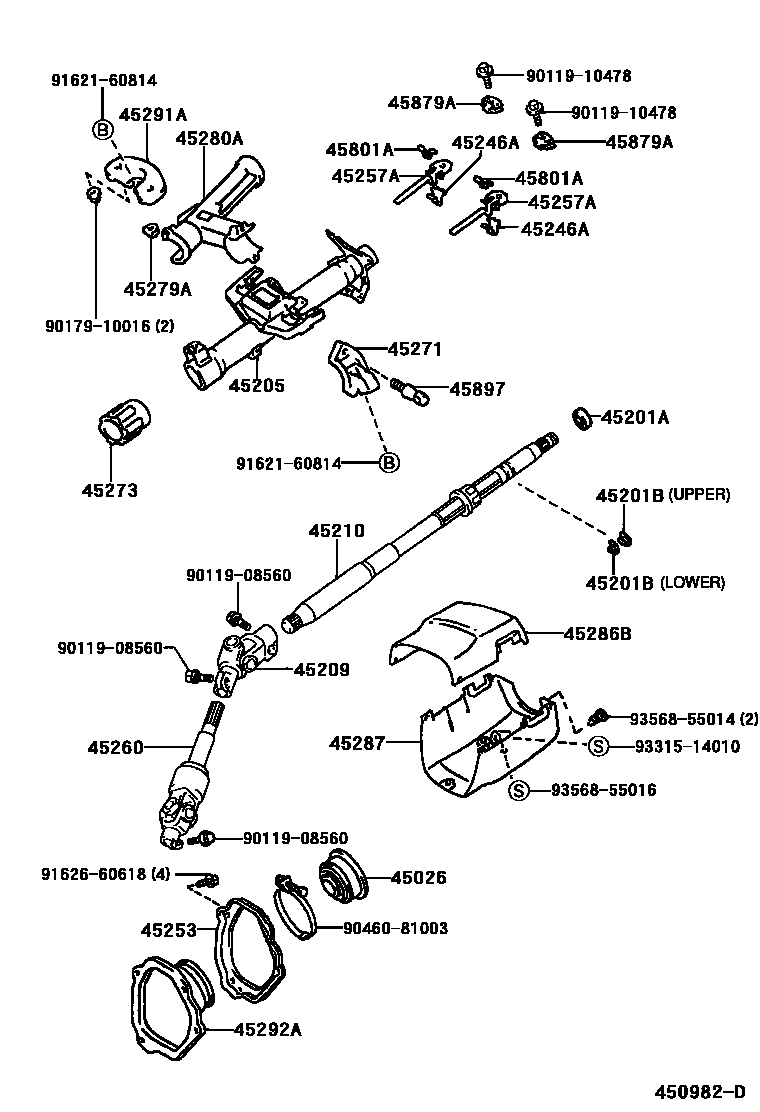

Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-42020 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45205 | Steering column tube sub-assembly | 45205-12350 |
| 45209 | Steering slip fork sub-assembly | 45209-44010 |
| 45210 | Steering spindle assembly | 45210-42010 · 45210-42011 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-12110 |
| 45253 | Steering column hole cover | 45253-42010 |
| 45257A | Steering column energy absorbing sheet | 45257-12070 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42050 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45273 | Steering spindle bushing | 45273-38010 |
| 45279A | Steering column tube lower connecting piece | 45279-12040 |
| 45280A | Steering column upper bracket assembly | 45280-12341 · 45280-12342 |
| 45291A | Steering column tube bracket | 45291-50010 |
| 45292A | Dust cover under spindle | 45292-42010 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45879A | Separate enclosure | 45879-12050 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
