Toyota RAV4 Front Drive Shaft — Figure 4302

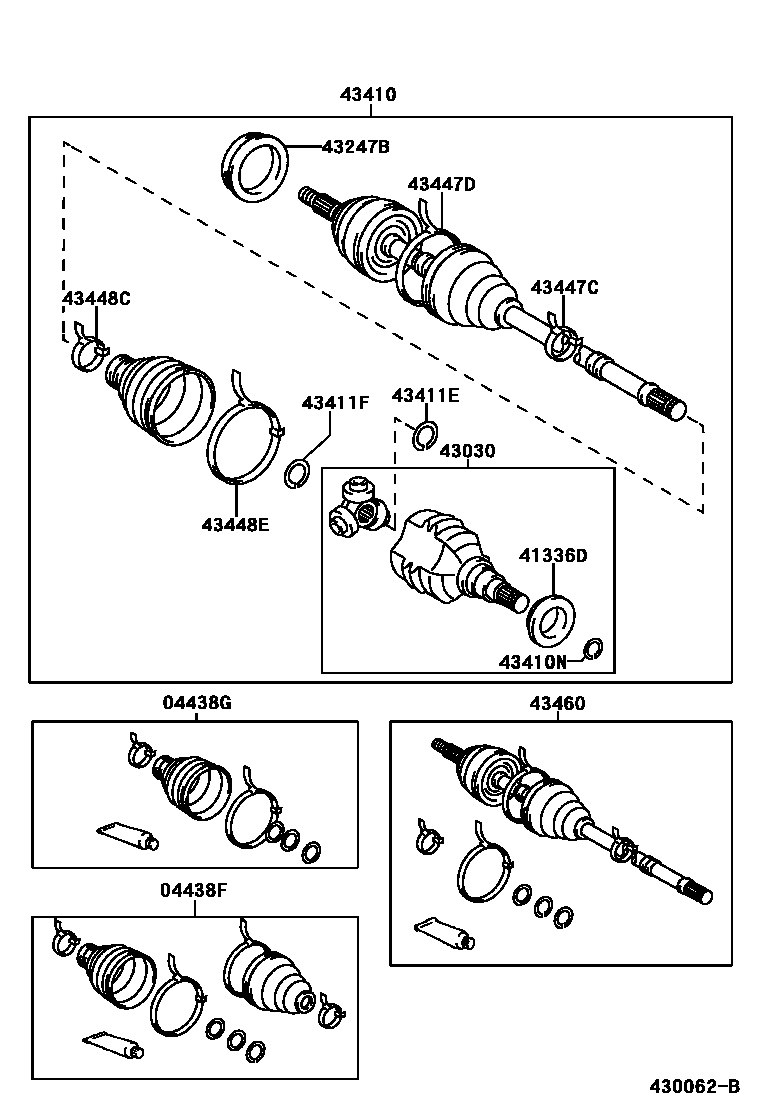

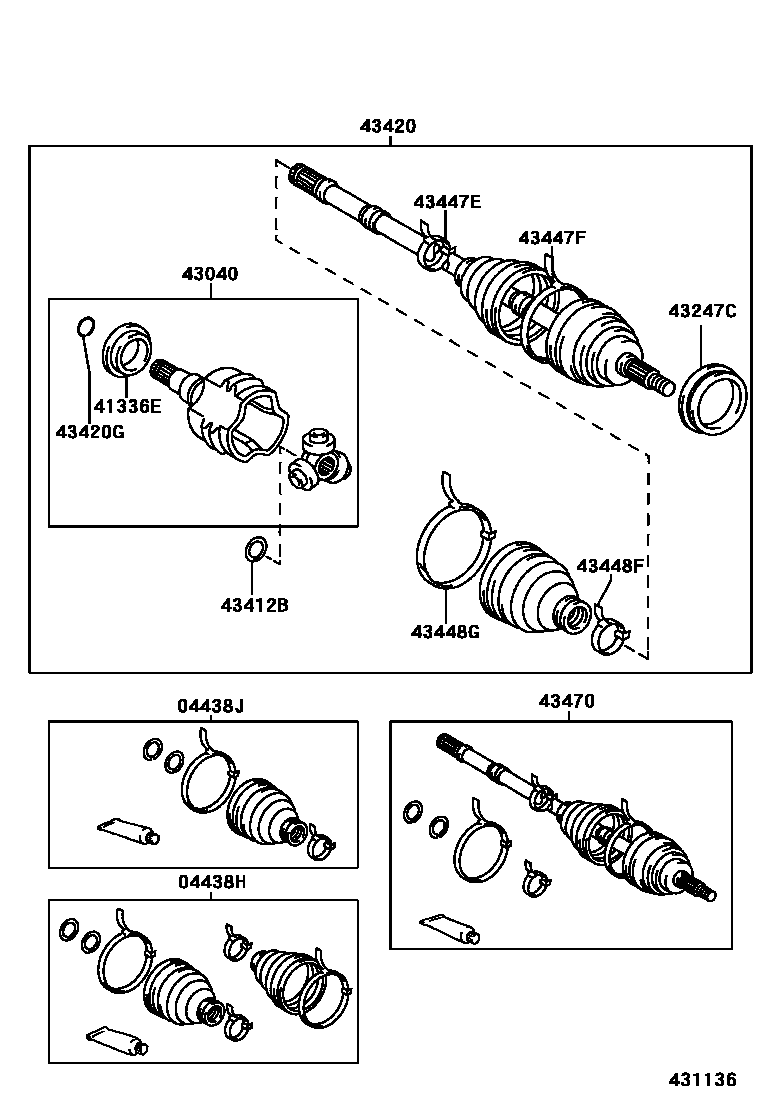

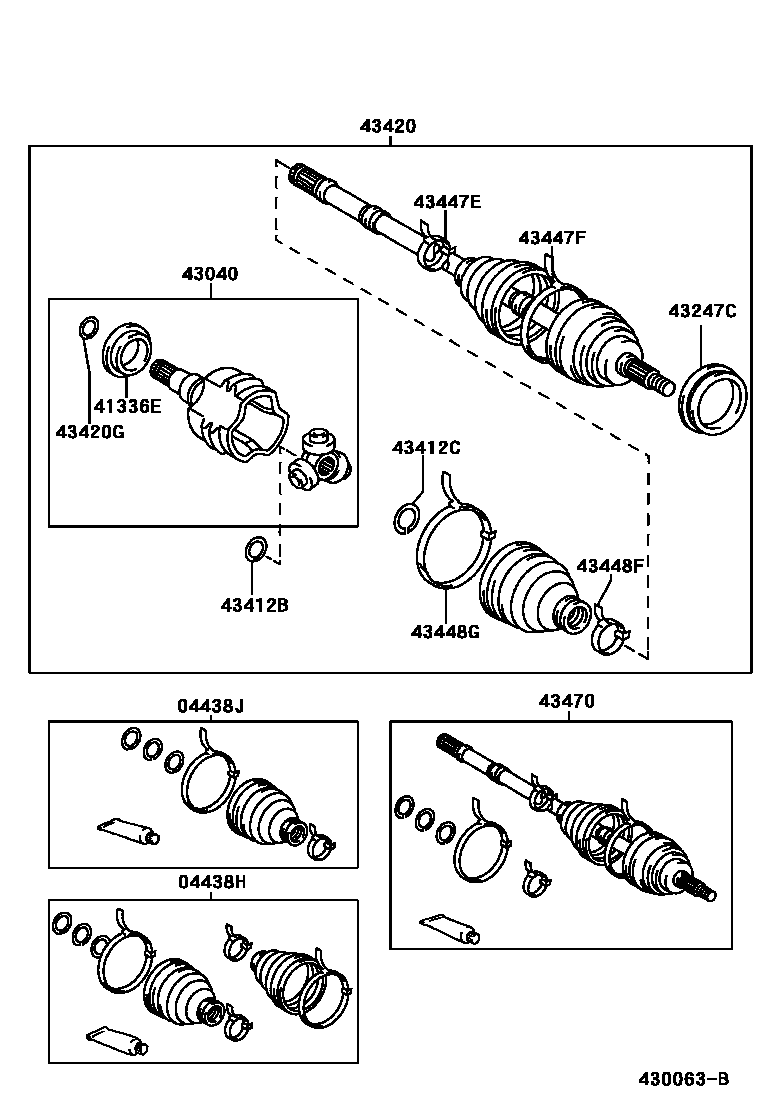

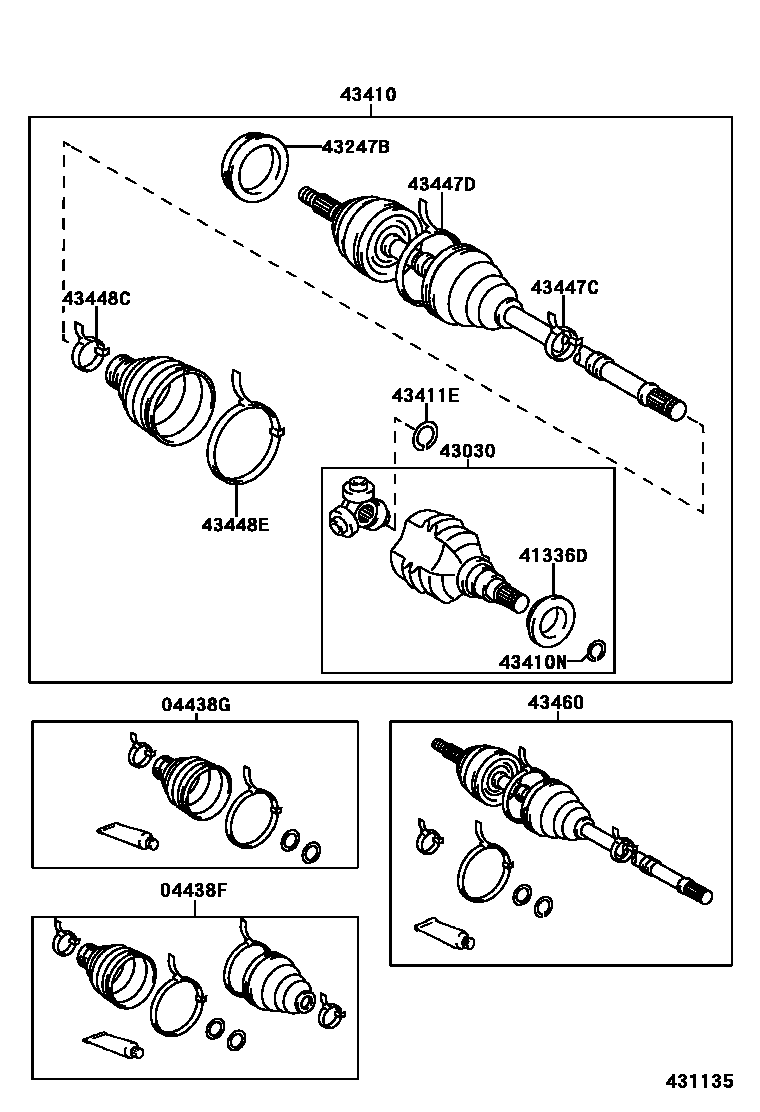

Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-20070 · 04438-20370 · 04438-20371 · 04438-42120 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-20330 · 04438-20360 · 04438-20361 · 04438-42110 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-20070 · 04438-20370 · 04438-20371 · 04438-42120 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-20330 · 04438-20360 · 04438-20361 · 04438-42110 |
| 41336D | Right front driveshaft dust cover | 41336-32020 |
| 41336E | Left front driveshaft dust cover | 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-20020 · 43040-42031 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20020 · 43040-42031 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 |
| 43410 | Right front driveshaft assembly | 42340-17081 · 42340-17082 · 42340-17083 · 42340-42040 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 90520-26048 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90520-25037 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90520-26048 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90520-25037 |
| 43420 | Left front drive shaft assembly | 42340-17081 · 42340-17082 · 42340-17083 · 42340-42040 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-27005 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-16050 · 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16060 · 42345-20030 · 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-16050 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16060 · 42345-20030 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16050 · 42345-42010 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 · 42345-30010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16050 · 42345-42010 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 · 42345-30010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-19346 · 43470-19347 · 43470-19348 · 43470-19349 · 43470-49295 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19346 · 43470-19347 · 43470-19348 · 43470-19349 · 43470-49295 |
