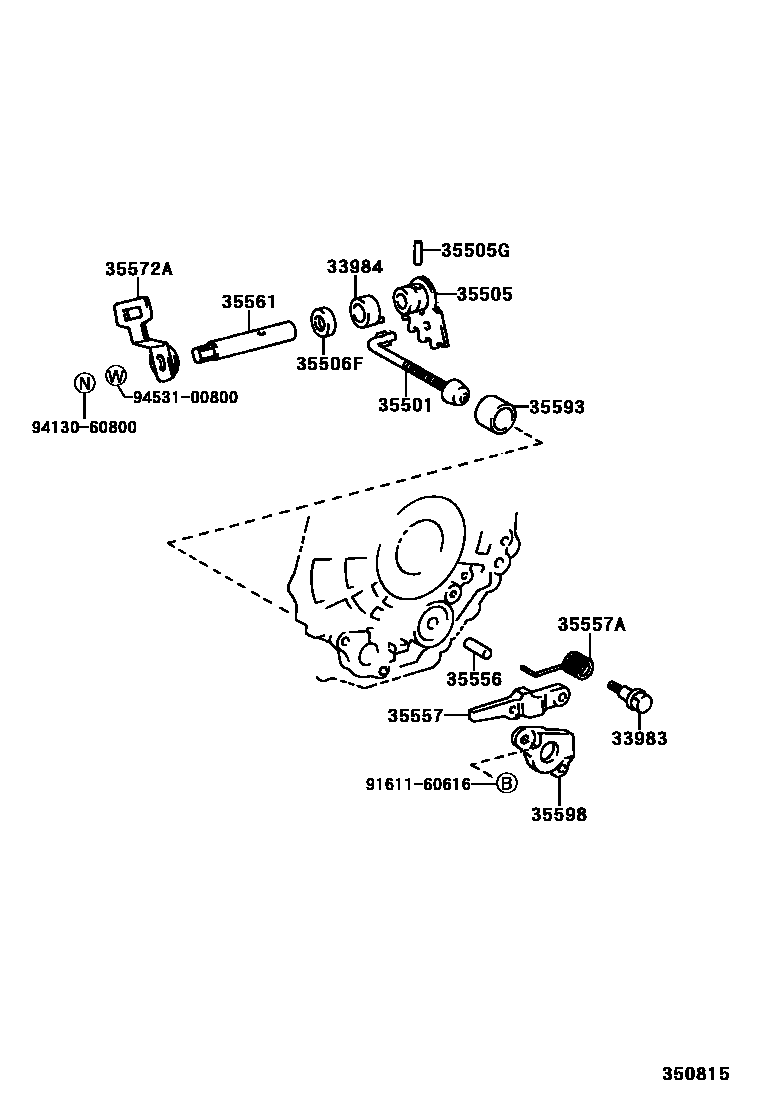

Toyota RAV4 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota RAV4 EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33983 | Parking lock torsion spring retainer | 33983-42010 |
| 33984 | Manual lever pin cover | 33984-42010 |
| 35501 | Parking lock lever sub-assembly | 35501-42010 · 35501-42011 |
| 35505 | Manual valve stem sub-assembly | 35505-42010 |
| 35505G | Slotted spring pin (for manual valve stem) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35556 | Parking lock pawl shaft | 35556-42010 |
| 35557 | Parking pawl | 35557-42010 |
| 35557A | Torsion spring (for parking pawl) | 90949-03055 |
| 35561 | Manual valve stem shaft | 35561-42010 |
| 35572A | transmission control lever | 35572-42010 |
| 35593 | Cam guide bushing | 35593-42010 |
| 35598 | Parking lock cover | 35598-42010 |
