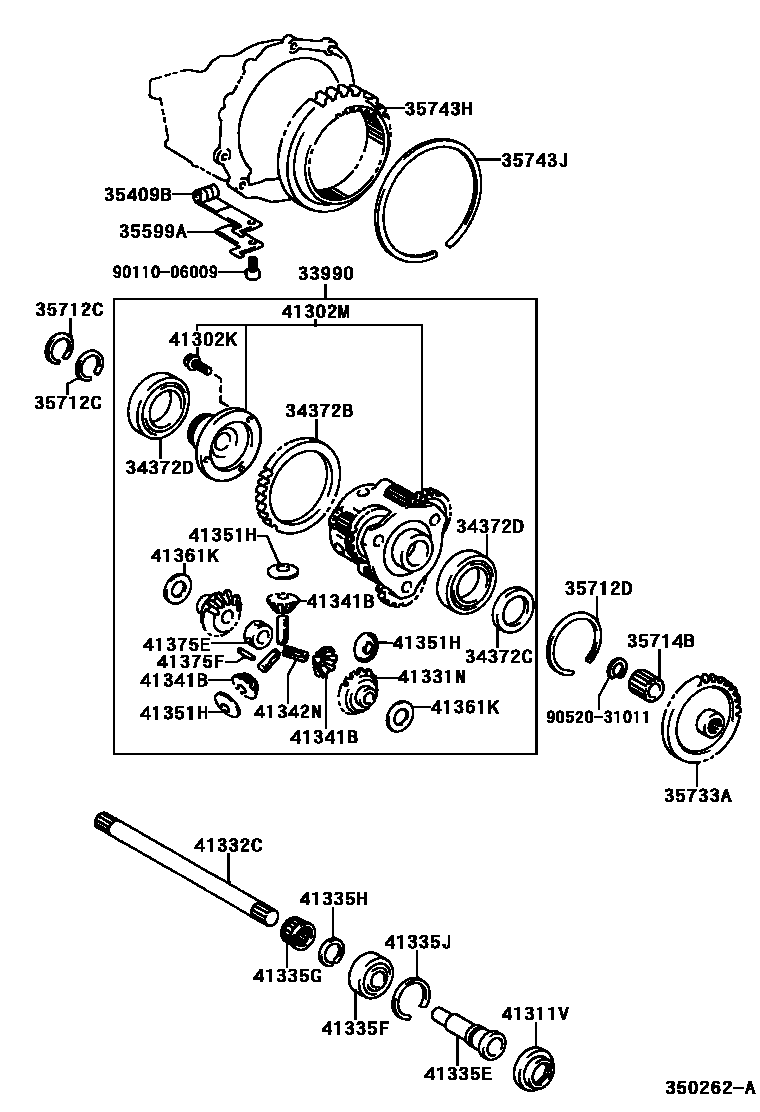

Toyota RAV4 中央支架和行星太阳齿轮(ATM) — Figure 3508
Toyota RAV4 EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33990 | Differential gear and planetary gear assembly | 33990-42020 |
| 34372B | Transfer case oil pump drive gear | 34372-12010 |
| 34372C | V-type oil seal | 90312-32005 |
| 34372D | Radial ball bearing | 90363-65001 |
| 35409B | Manual lock spring sub-assembly | 35409-42010 |
| 35599A | Manual locking spring cover | 35599-42010 |
| 35712C | Input shaft oil ring | 35712-42010 |
| 35712D | Hole snap ring | 90521-89002 · 90521-89003 · 90521-89004 · 90521-89005 |
| 35714B | Input shaft sun gear | 35714-42010 |
| 35733A | Parking lock gear | 35733-42010 |
| 35743H | Planetary ring gear | 35743-42020 |
| 35743J | Hole snap ring | 90521-99117 |
| 41302K | Hexagon head bolts with washer base | 90105-08333 |
| 41302M | Differential case sub-assembly | 41302-42010 |
| 41311V | T-type oil seal (for EV motor housing) | 90311-35039 |
| 41331N | Differential side gear | 41331-42020 |
| 41332C | Differential side gear countershaft | 41332-42010 |
| 41335E | Differential side gear shaft support | 41335-42010 |
| 41335F | Radial ball bearing (for EV motor housing) | 90363-40062 |
| 41335G | Needle roller bearings | 90364-32020 |
| 41335H | Shaft snap ring | 90520-36011 |
| 41335J | Hole snap ring | 90521-66008 |
| 41341B | differential planetary gear | 41341-12030 |
| 41342N | Differential planetary gear shaft | 41342-42020 |
| 41351H | Differential planetary gear thrust washer | 41351-12020 |
| 41361K | Differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
| 41375E | Planetary gear shaft support | 41375-42010 |
| 41375F | direct selling | 90250-05028 |
