Toyota RAV4 变速器壳和油底壳(ATM) — Figure 3503

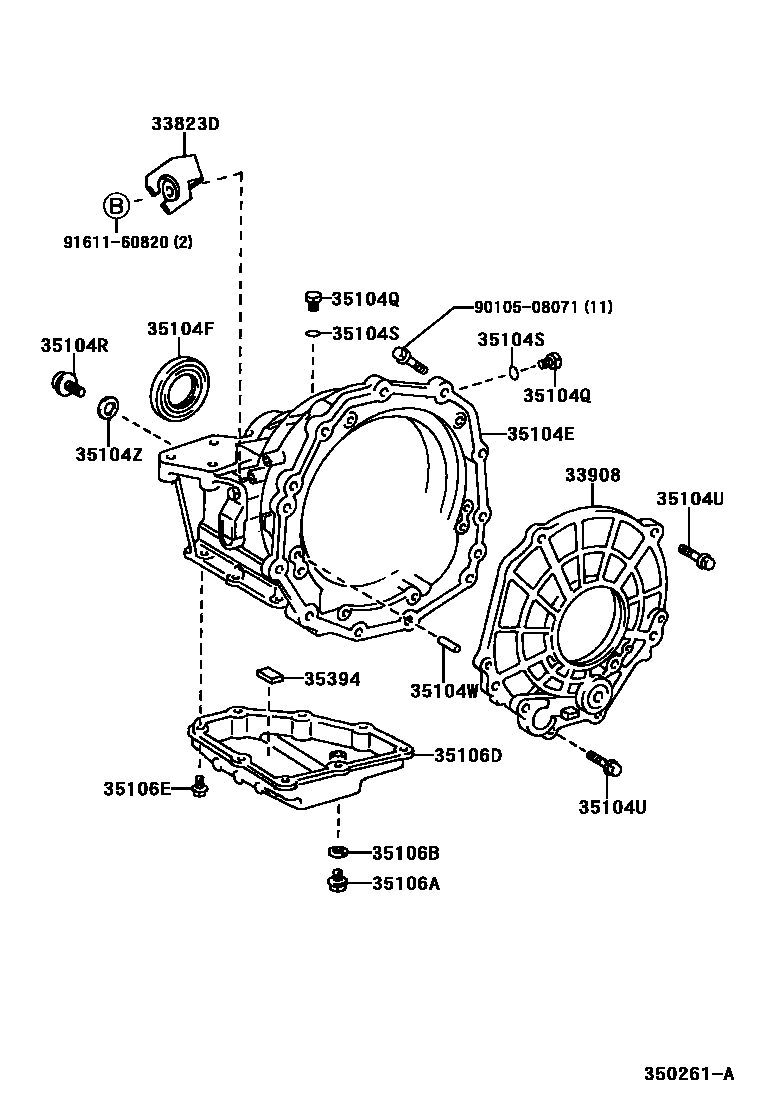

Toyota RAV4 EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33823D | Transmission control cable bracket | 33823-42010 |
| 33908 | EV transmission axle cover sub-assembly | 33908-42020 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-42020 |
| 35104F | Oil seal (for transmission axle housing) | 90311-35019 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-18002 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104U | Bolts (for transaxle housing) | 90105-08071 · 90105-08311 · 90105-08333 |
| 35104W | Direct sales (for transmission axle housing) | 90250-08027 |
| 35104Z | Gasket (for transaxle housing) | 90430-18008 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-12012 |
| 35106B | Drain plug gasket (ATM) | 90430-12031 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-42010 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06513 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
