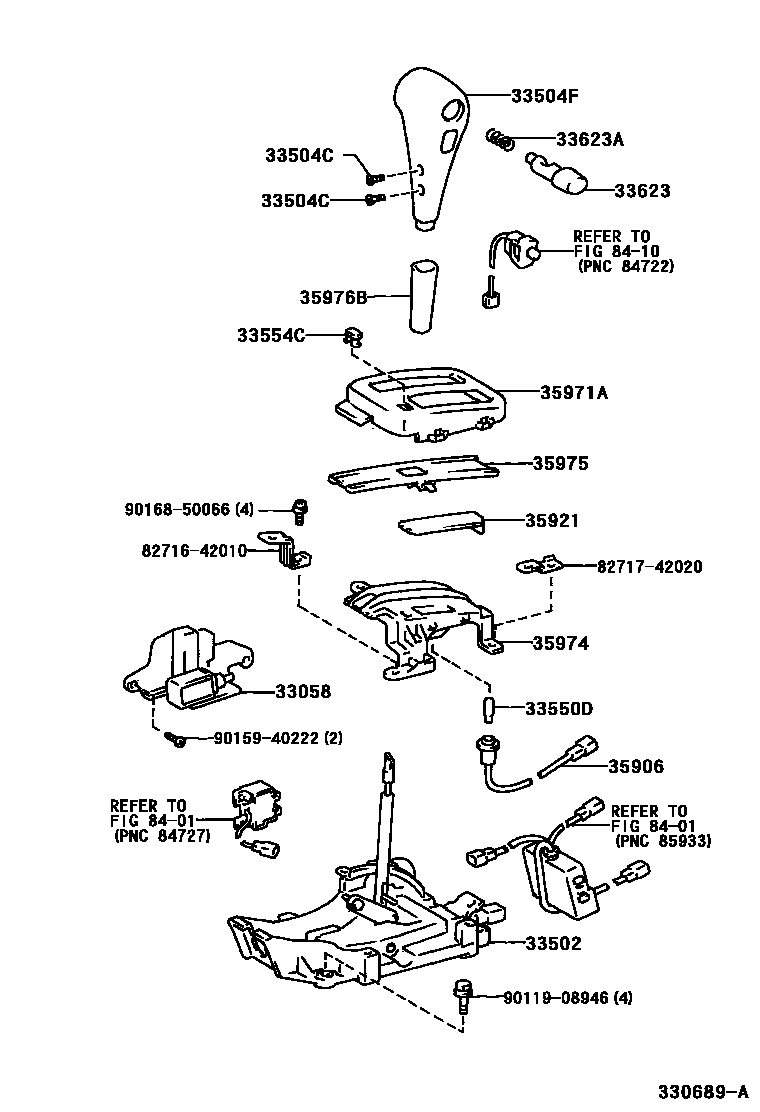

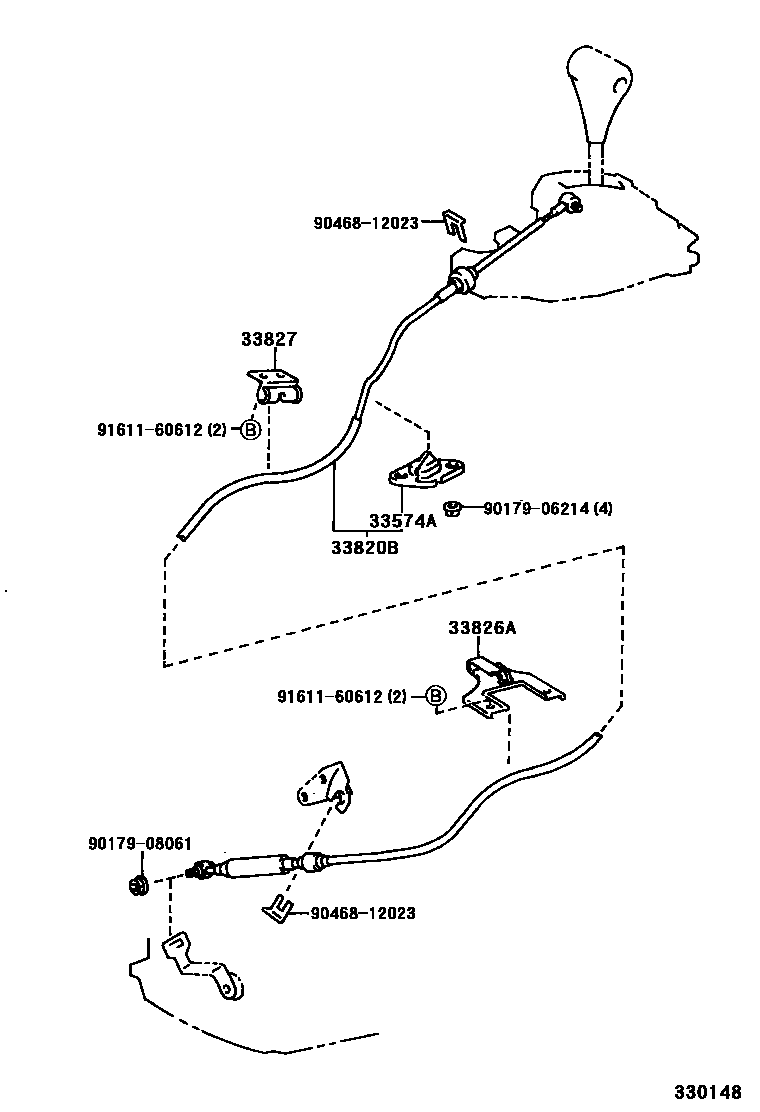

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-12050 |
| 33502 | Shift lever base plate sub-assembly | 33502-42030 |
| 33504C | Screw (for securing shift lever knob) | 90159-40244 |
| 33550D | position indicator light bulb | 99132-12034 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-42020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 |
| 33820B | Transmission control cable assembly | 33820-42080 |
| 33826A | No. 2 transmission control cable bracket | 33826-42010 |
| 33827 | No. 3 transmission control cable bracket | 33827-42020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12130 |
| 35921 | control position indicator board | 35921-42020 |
| 35974 | Position indicator light lower shell | 35974-12161 |
