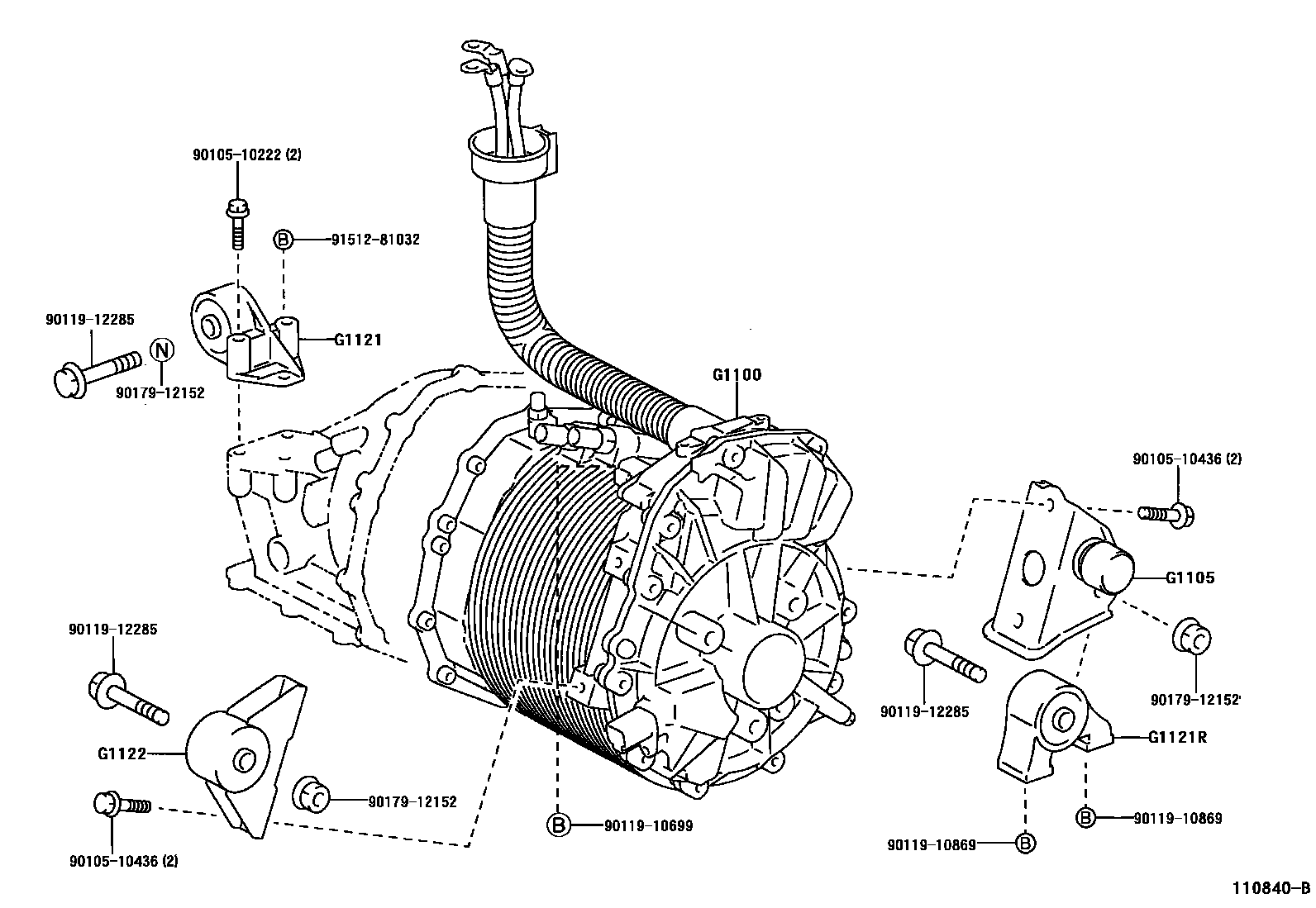

Toyota RAV4 EV马达 — Figure 1110
Toyota RAV4 EPC diagram 1110, EV马达, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G1100 | Hybrid vehicle motor assembly | G1100-42020 |
| G1105 | EV motor rear bracket sub-assembly | G1105-42010 · G1105-42011 |
| G1121 | Electric vehicle motor right front mounting bracket vibration isolation pad | G1121-42010 |
| G1121R | Electric vehicle motor rear mounting bracket vibration isolation pad | G1123-42020 · G1123-42021 · G1123-42022 |
| G1122 | Electric vehicle motor left front mounting bracket vibration isolation pad | G1122-42020 · G1122-42021 · G1122-42022 |
