Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719
Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

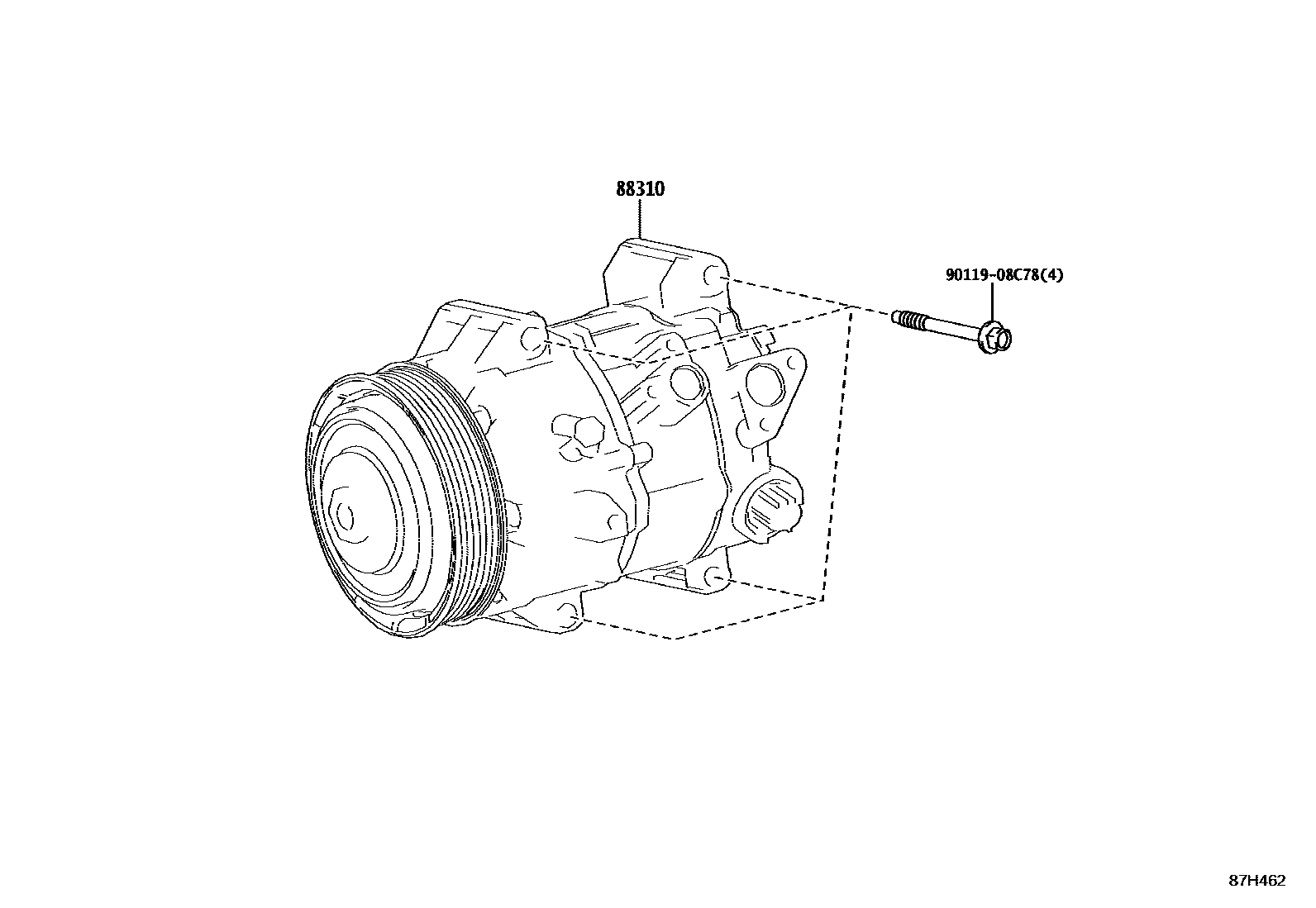

| 88310 | Compressor assembly with pulley | 88310-33330 · 88310-33350 |

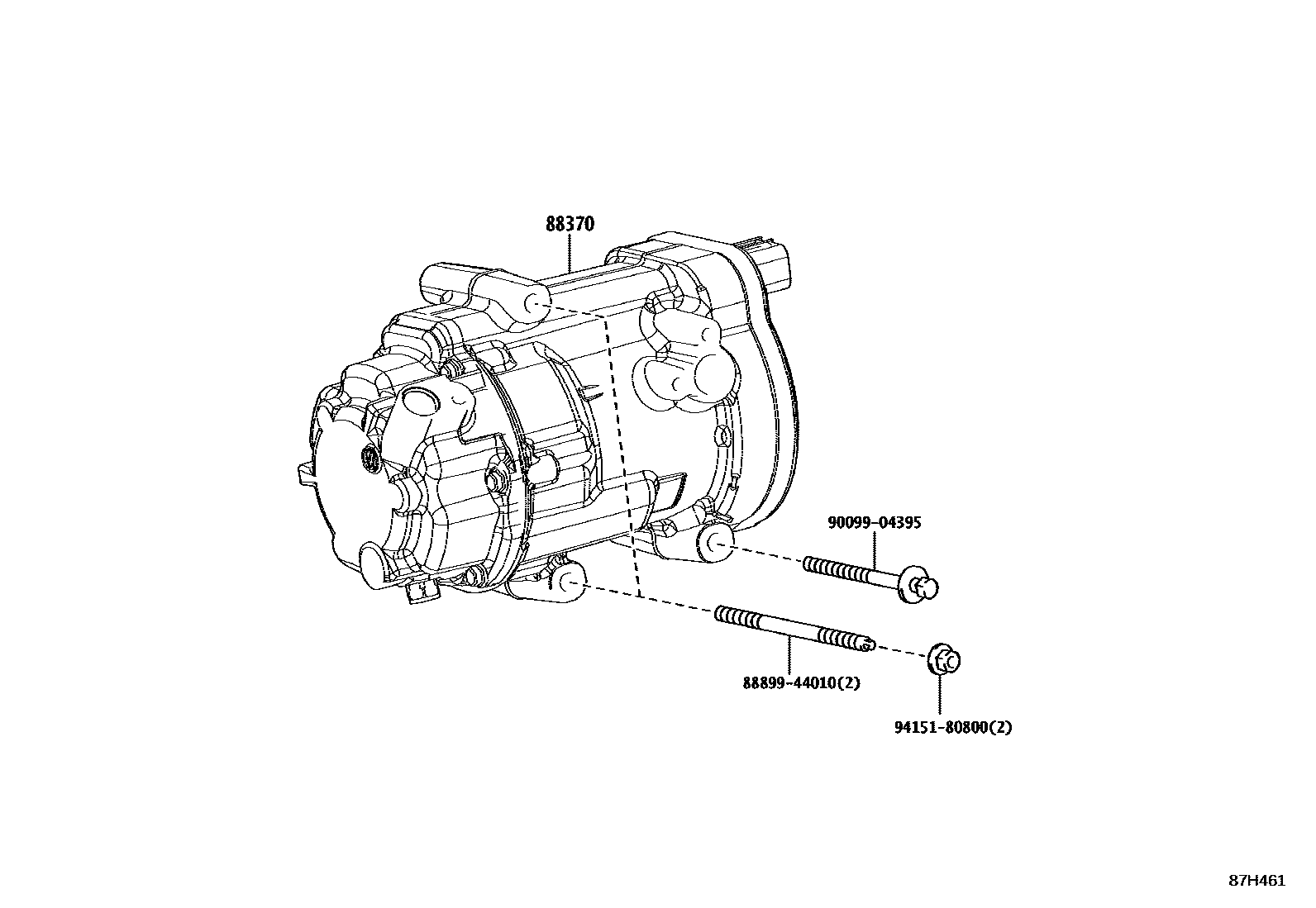

| 88370 | Compressor assembly with motor | 88370-33040 · 88370-33050 · 88370-33051 · 88370-42080 · 88370-42081 |
