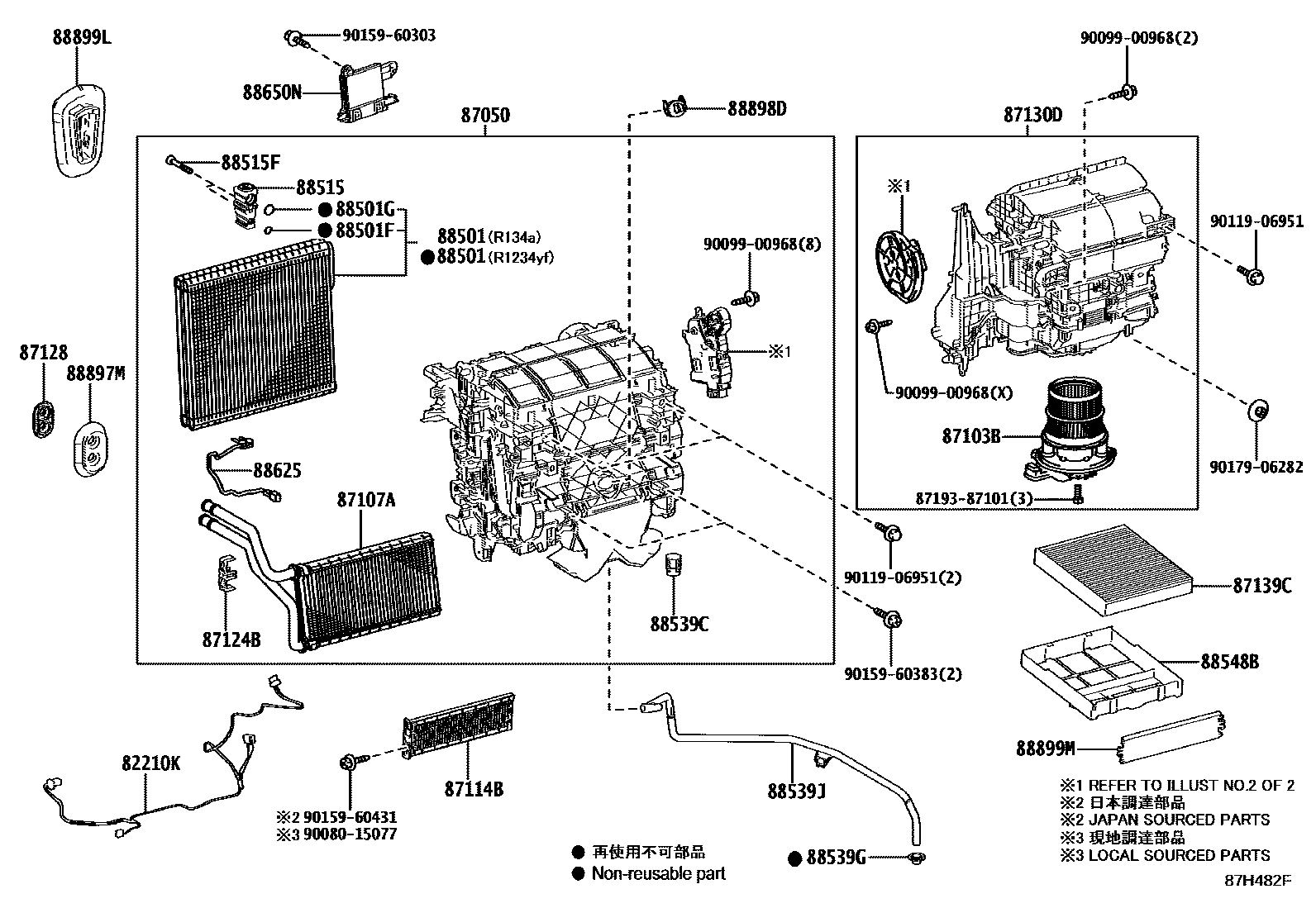

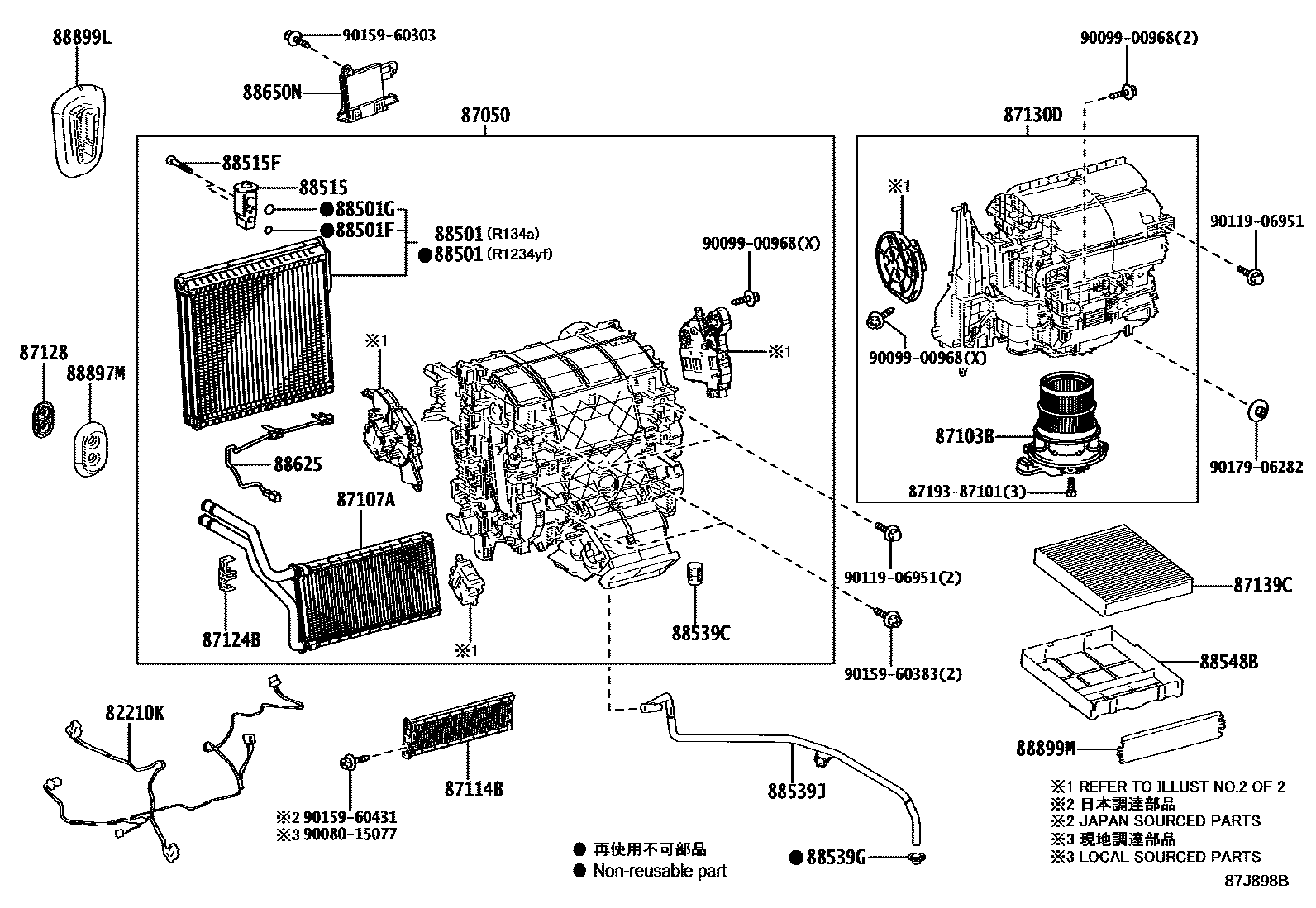

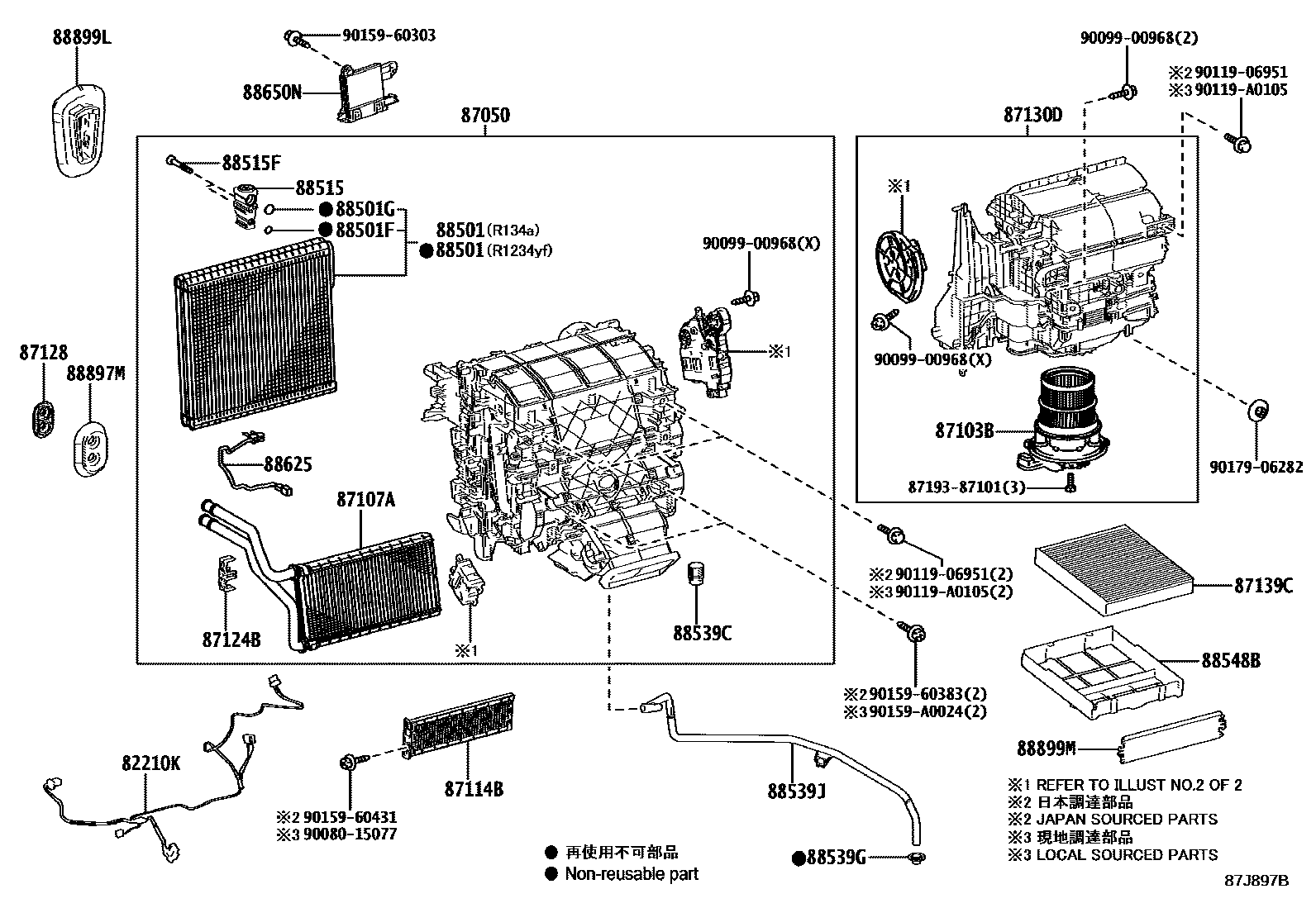

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-42030 · 82212-42040 · 82212-42050 |
| 87050 | Air conditioning radiator assembly | 87050-33C20 · 87050-33C30 · 87050-33D10 · 87050-33D30 · 87050-33E50 · 87050-33E60 · 87050-42770 · 87050-42A20 · 87050-42A21 · 87050-42A41 · 87050-42B20 · 87050-42B30 · 87050-42B40 · 87050-42C00 |

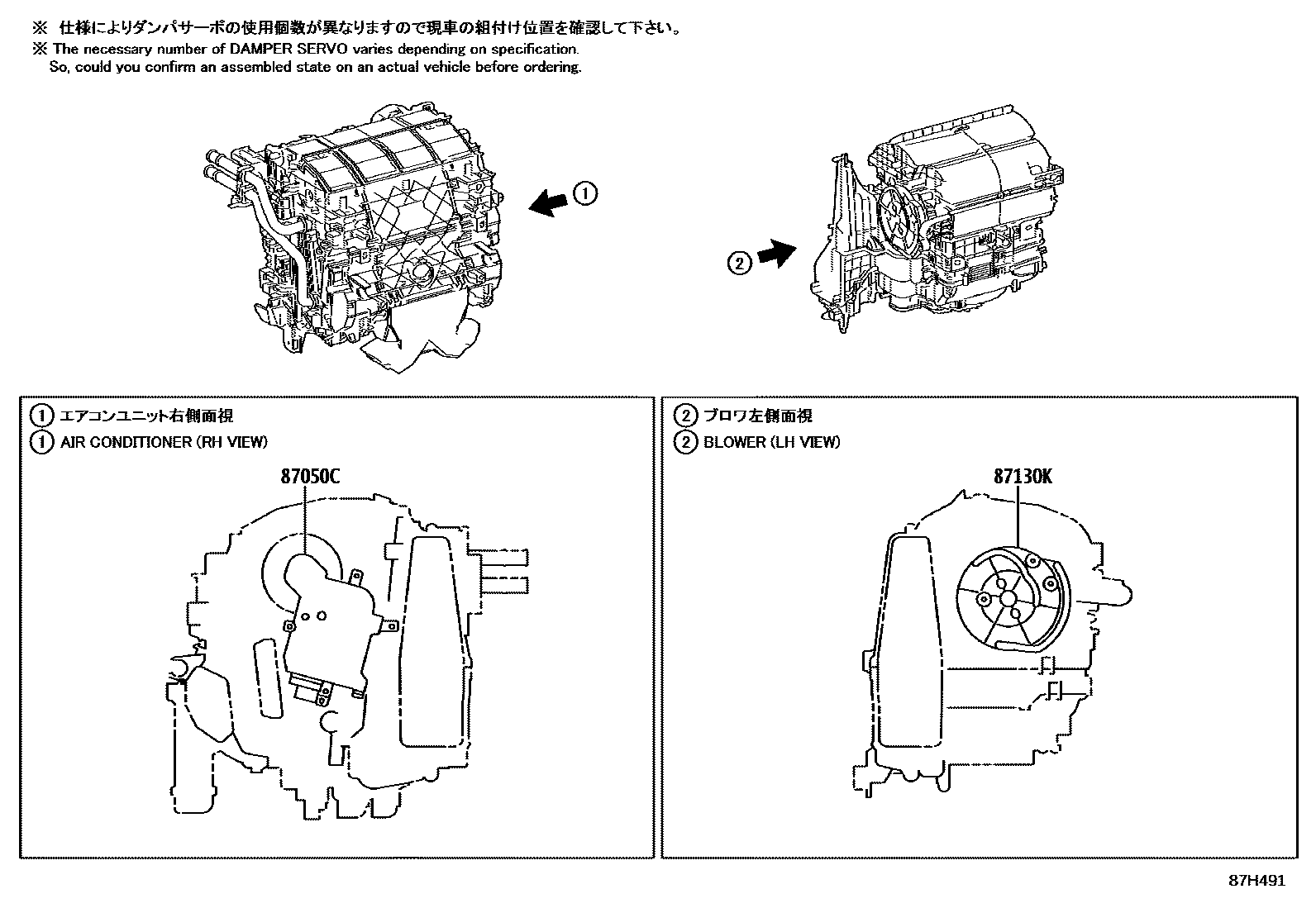

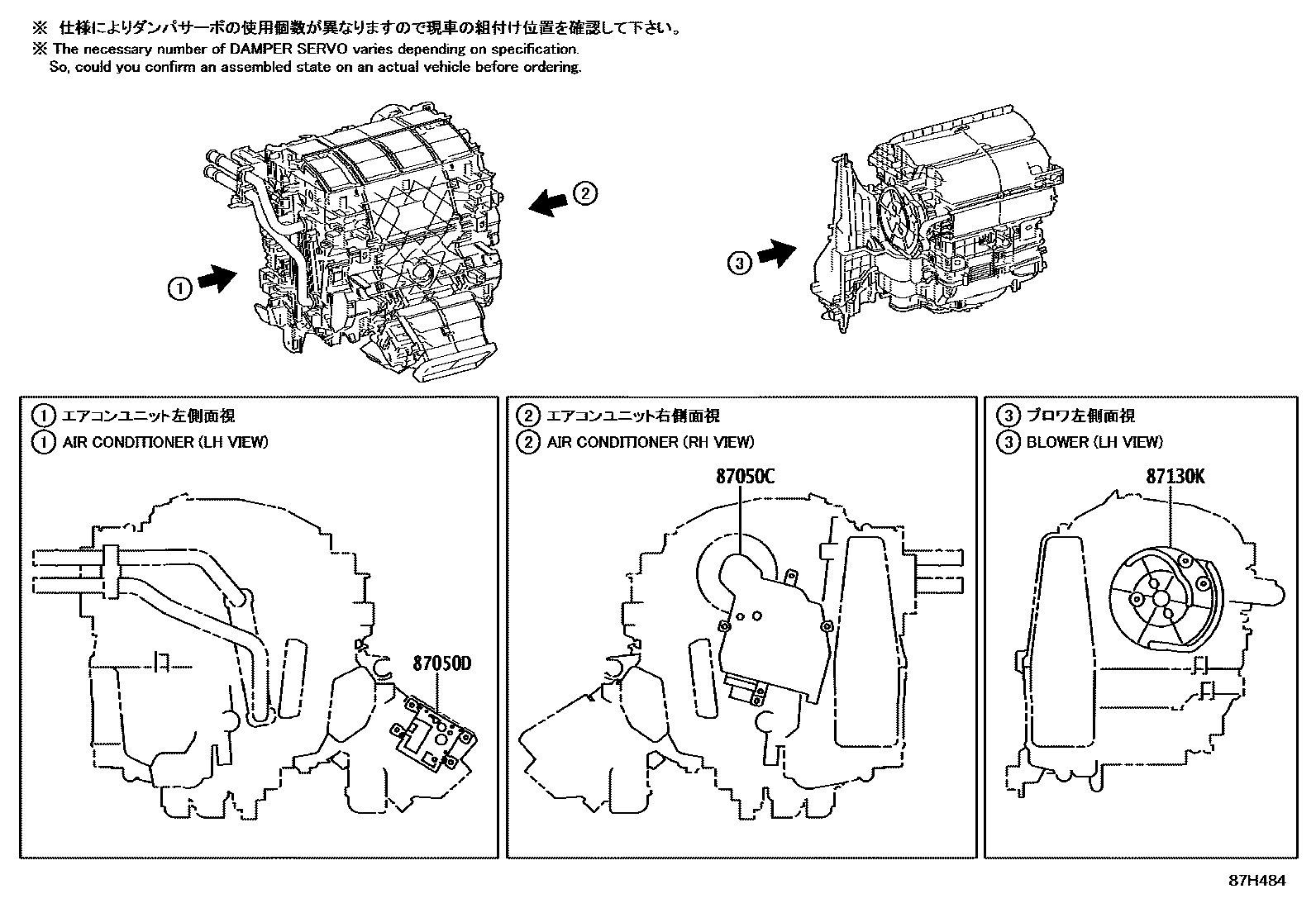

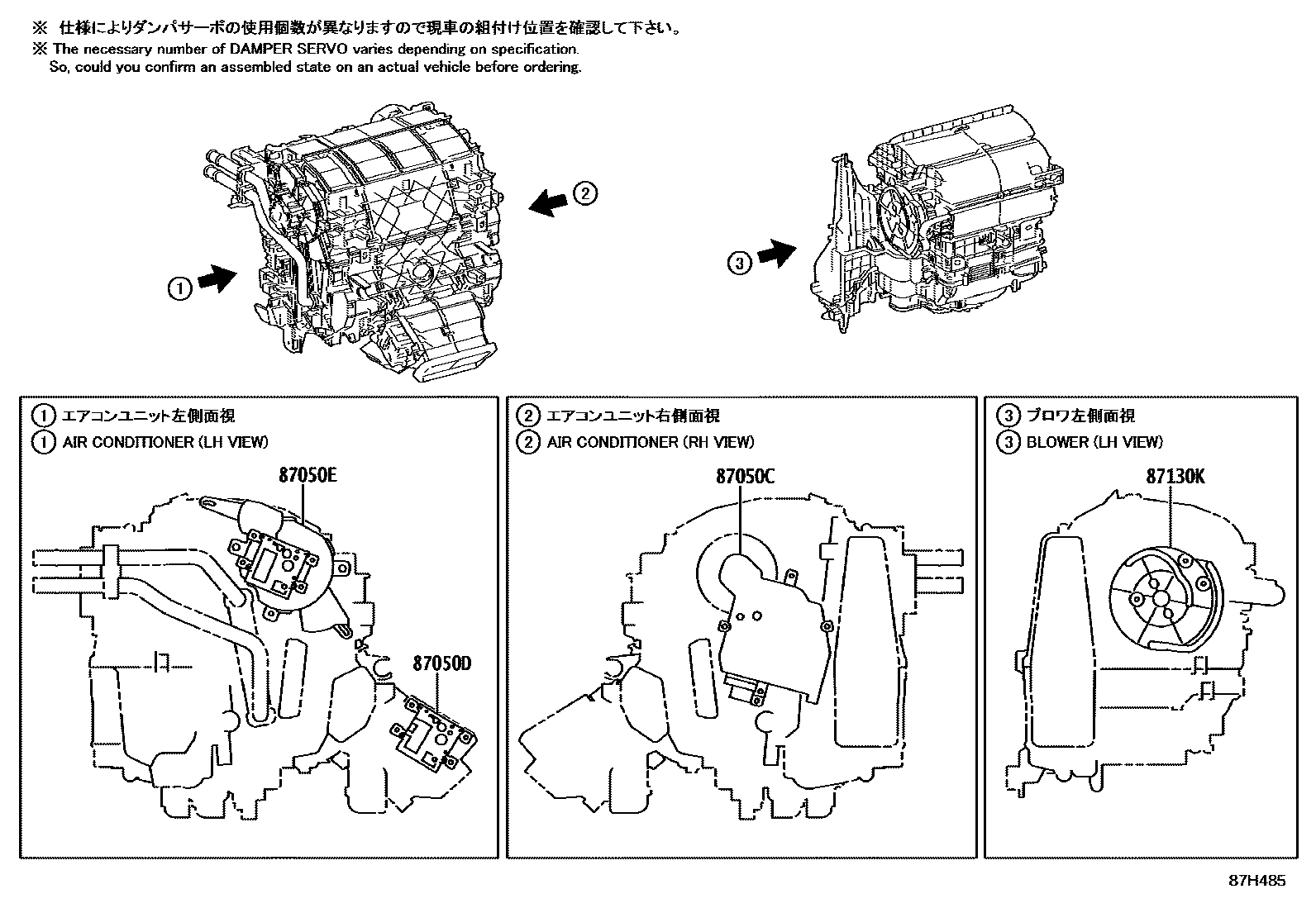

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-47180 · 87106-48170 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-48240 |
| 87103B | Blower motor sub-assembly with fan | 87103-58080 · 87103-78040 |
| 87107A | Heater radiator device sub-assembly | 87107-33130 |
| 87114B | heater cover | 87114-58050 |
| 87124B | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-42491 · 87130-47290 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-58050 |
| 87139C | air purification filter | 87139-28020 · 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33340 · 88501-33350 · 88501-33360 · 88501-33370 · 88501-33390 · 88501-42110 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90099-14120 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-12160 · 88515-30800 · 88515-33080 · 88515-48110 · 88515-50320 · 88515-58050 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539C | No. 2 cooler unit drain hose | 88899-10110 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-42070 |
| 88548B | air filter housing | 88899-47090 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 · 88620-28060 · 88620-33040 |
| 88650N | Air conditioning amplifier assembly | 88650-42720 · 88650-42810 · 88650-42811 · 88650-42830 · 88650-42831 · 88650-42880 · 88650-42890 · 88650-42A20 · 88650-42A40 · 88650-42A60 · 88650-42A80 · 88650-42B30 |
| 88897M | Seals (for heater tubes) | 87128-33020 |
| 88898D | gasket | 88899-33070 |
| 88899L | Cooling unit parts | 88899-33080 · 88899-33090 |
| 88899M | cover (for air cleaner) | 88899-47120 |
