Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 16 PNC and OE references.

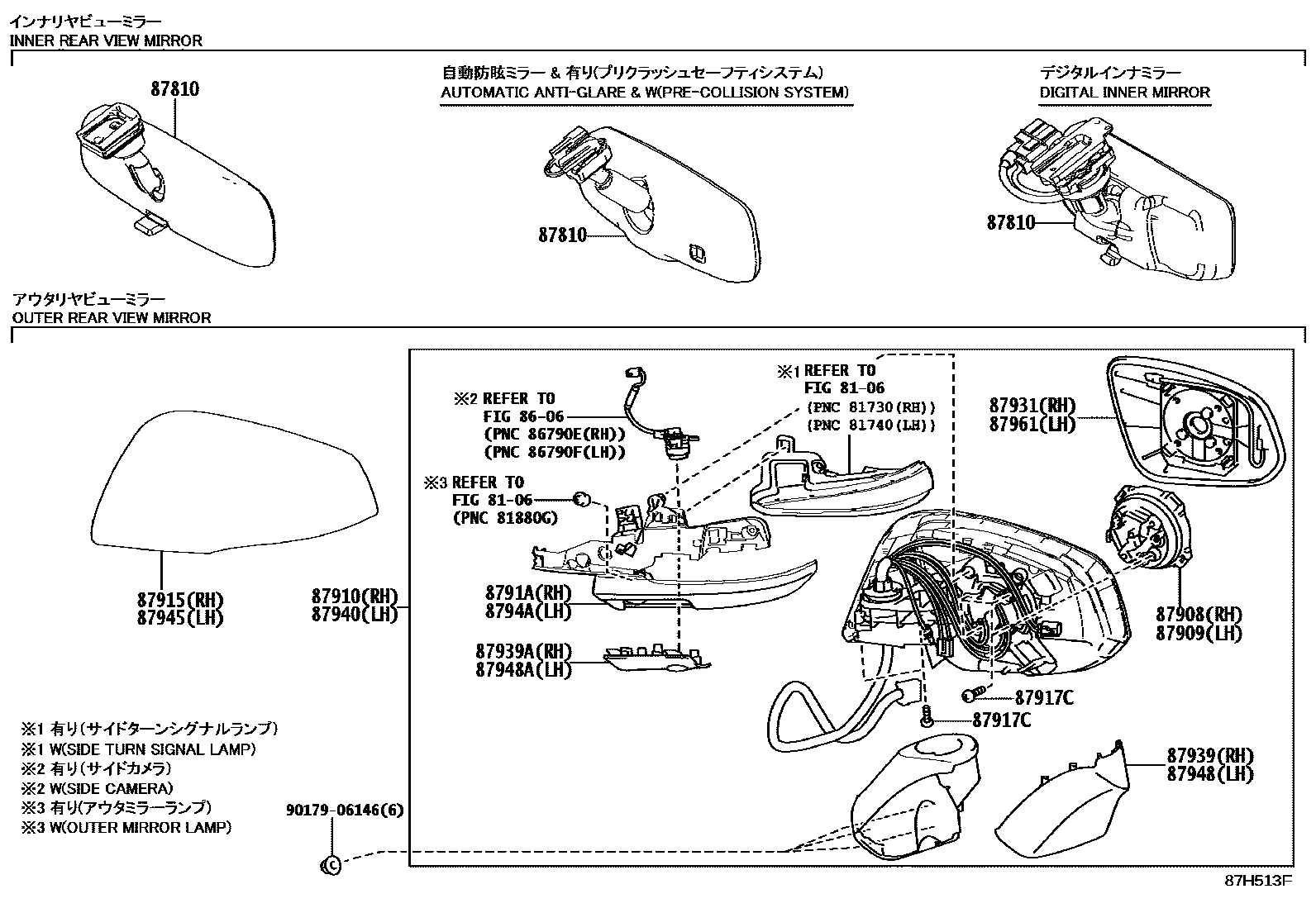

Toyota RAV4 后视镜 EPC diagram — 87H513F
后视镜 — 87H513F (201811 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0R110 · 87810-0R120 · 87810-0R190 · 87810-0R200 · 87810-0R250 · 87810-0WK00 · 87810-0WW70 · 87810-0WZ20 · 87810-28140 · 87840-0W140
87908Right exterior rearview mirror actuator assembly87908-42E71
87909Left exterior rearview mirror actuator assembly87908-42E71
87910Right exterior rearview mirror assembly87910-42E30 · 87910-42E31 · 87910-42E32 · 87910-42E40 · 87910-42E41 · 87910-42E42 · 87910-42E50 · 87910-42E51 · 87910-42E52 · 87910-42E60 · 87910-42E61 · 87910-42E70 · 87910-42E71 · 87910-42K50 · 87910-42K51 · 87910-42K90 · 87910-42L20 · 87910-42L21 · 87910-42L50 · 87910-42L60 · 87910-42L70 · 87910-42L80
87915Right exterior rearview mirror cover87915-42210
87917CExterior rearview mirror screws87917-15010
8791ARight exterior rearview mirror cover No. 28791B-42E30 · 8791B-42E40 · 8791B-42E50
87931Right exterior rearview mirror87931-42E30 · 87931-42E50
87939Right exterior rearview mirror hole cover87939-42E30
87939ARight exterior rearview mirror hole cover87939-42E50 · 87939-42E60 · 87939-42L20
87940Left exterior rearview mirror assembly87940-42E00 · 87940-42E01 · 87940-42E02 · 87940-42E10 · 87940-42E11 · 87940-42E12 · 87940-42E20 · 87940-42E21 · 87940-42E22 · 87940-42E30 · 87940-42E31 · 87940-42E40 · 87940-42E41 · 87940-42K40 · 87940-42K41 · 87940-42K80 · 87940-42L10 · 87940-42L11 · 87940-42L40 · 87940-42L50 · 87940-42L60 · 87940-42L70
87945Left exterior rearview mirror cap87945-42210
87948Left exterior rearview mirror hole cover87948-42E00
87948ALeft exterior rearview mirror hole cover87948-42E20 · 87948-42E30 · 87948-42L10
8794ANo. 2 left exterior rearview mirror cap8794B-42E00 · 8794B-42E10 · 8794B-42E20
87961Left exterior rearview mirror87961-42E00 · 87961-42E20 · 87961-42E40
