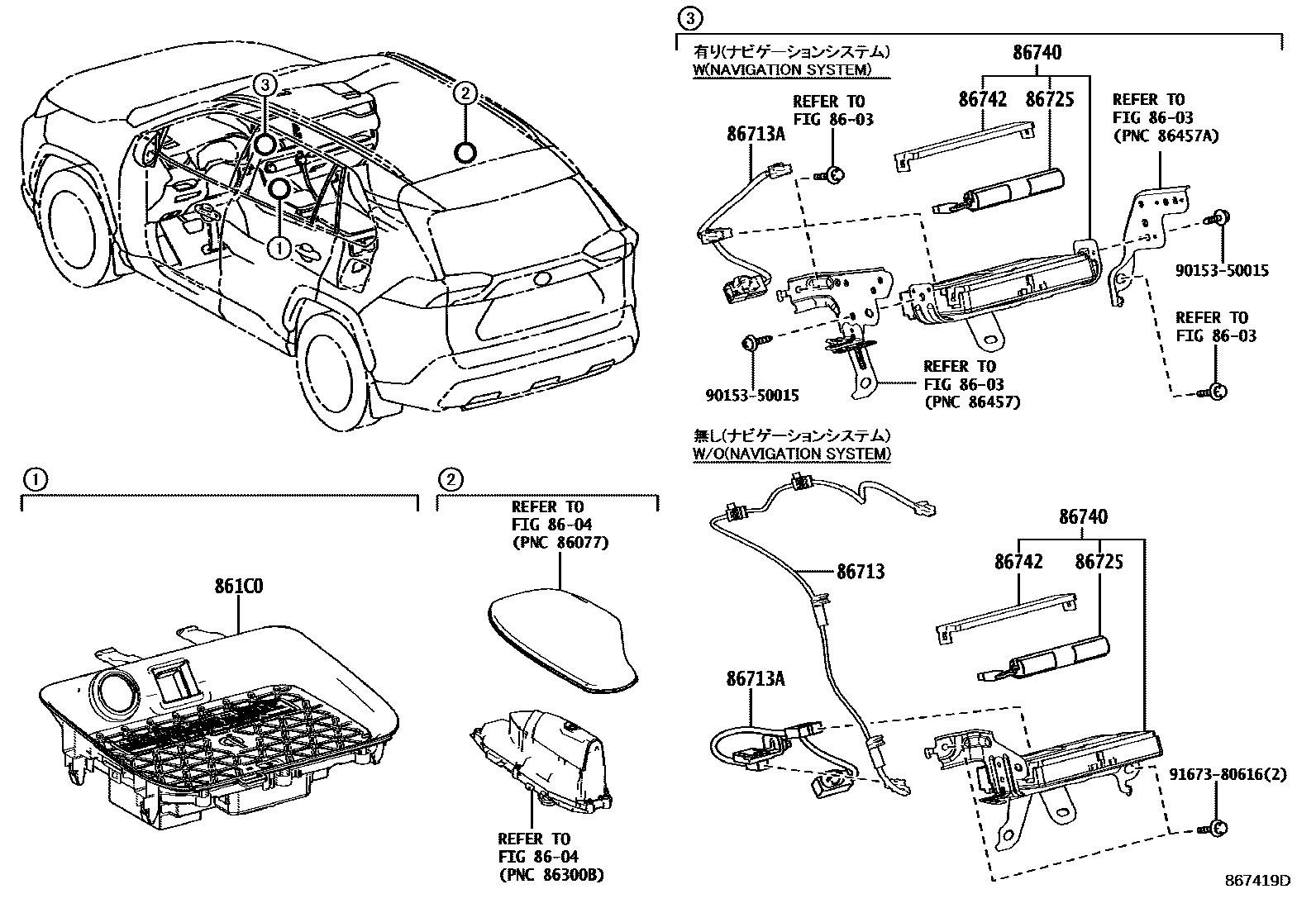

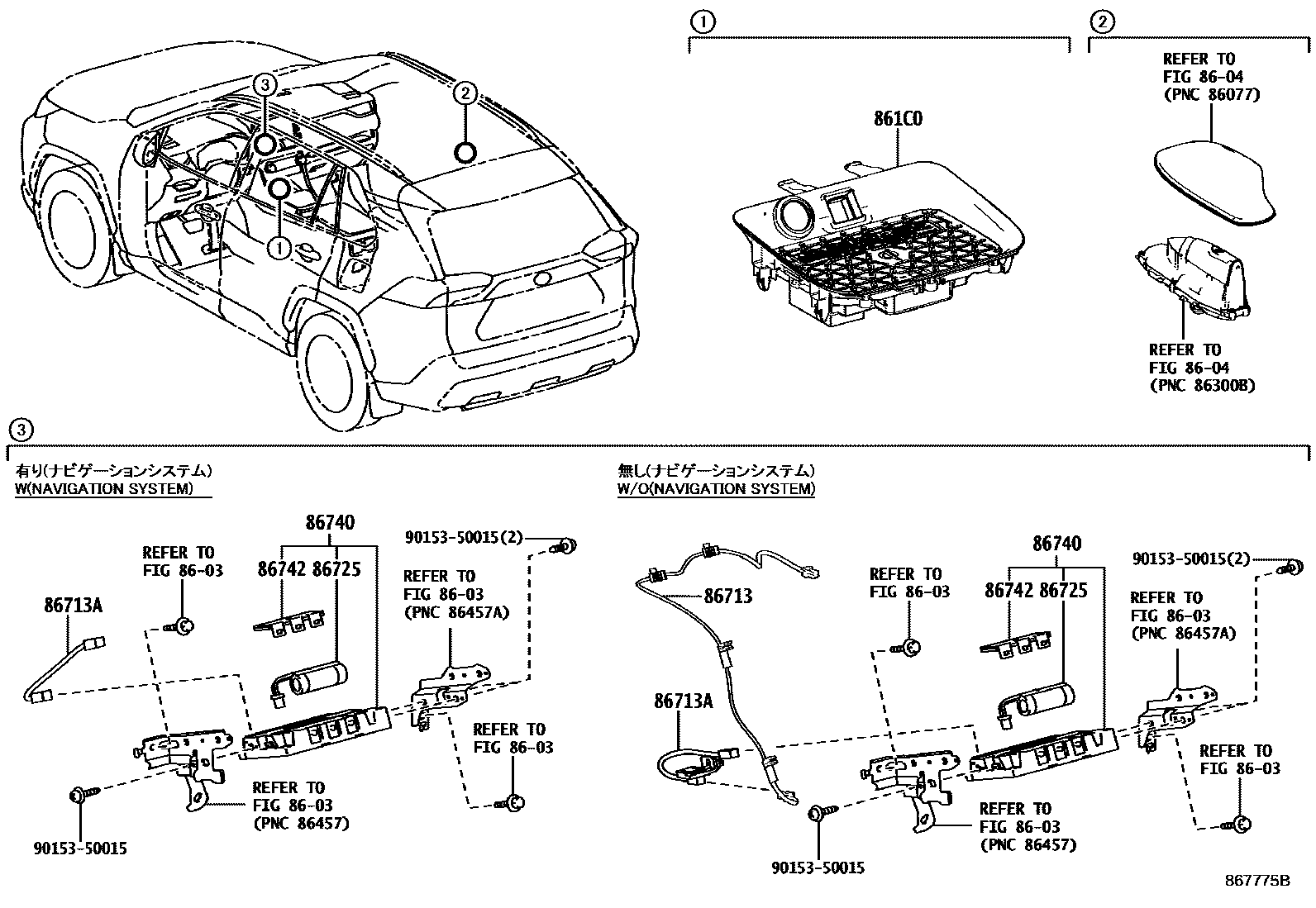

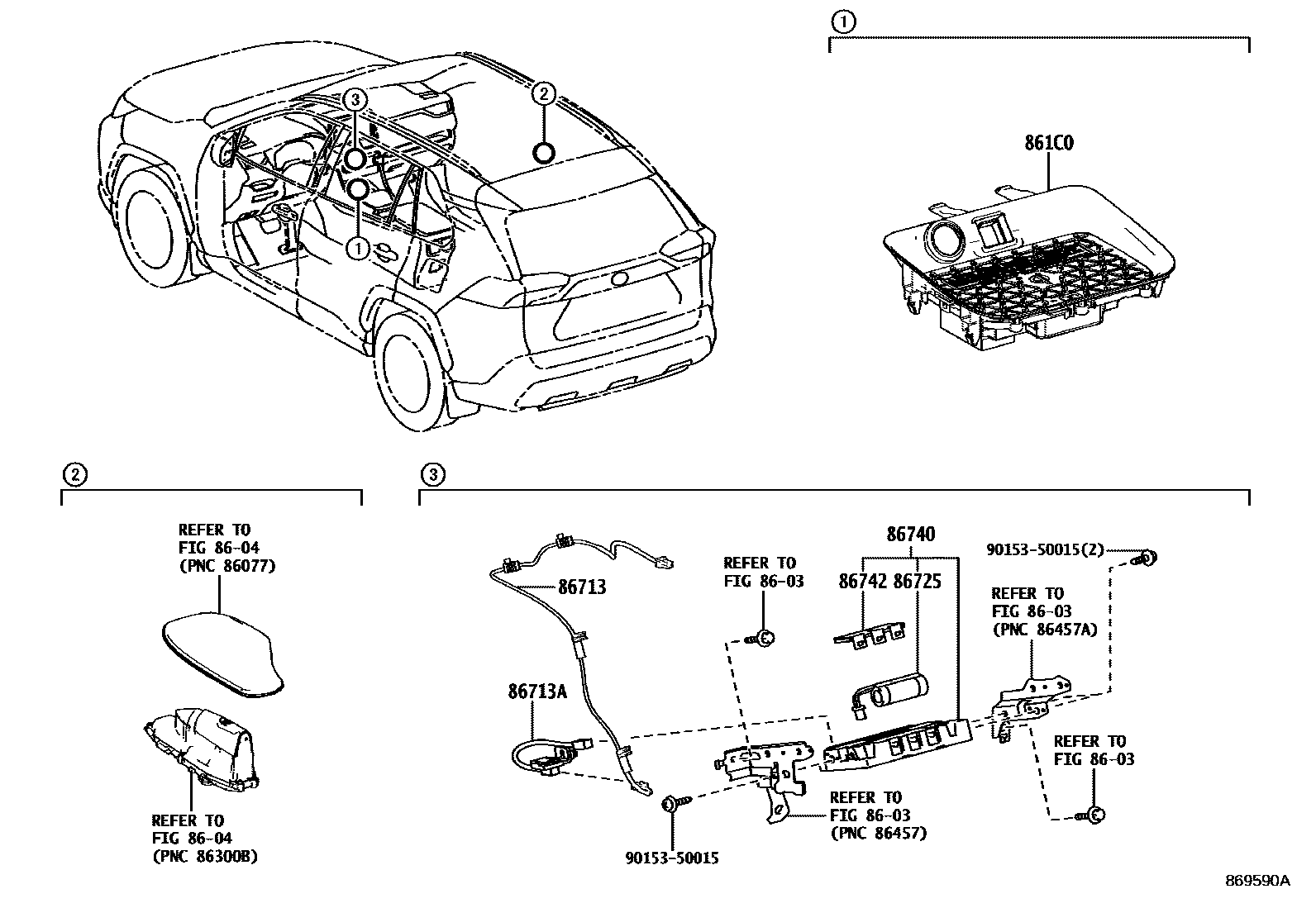

Toyota RAV4 车载电话和呼救装置 — Figure 8615
Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE | 861C0-42011 |
| 86713 | Telephone ECU wiring harness | 86713-42020 · 86713-42170 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-42030 · 86713-42040 · 86713-42080 · 86713-42090 |
| 86725 | mobile phone battery | 86725-06020 · 86725-78010 |
| 86740 | Telephone transceiver assembly | 86740-42040 · 86740-42170 · 86741-06091 · 86741-06092 · 86741-76050 · 86741-76090 |
| 86742 | transceiver cover | 86742-06020 · 86742-12010 · 86742-78010 |
