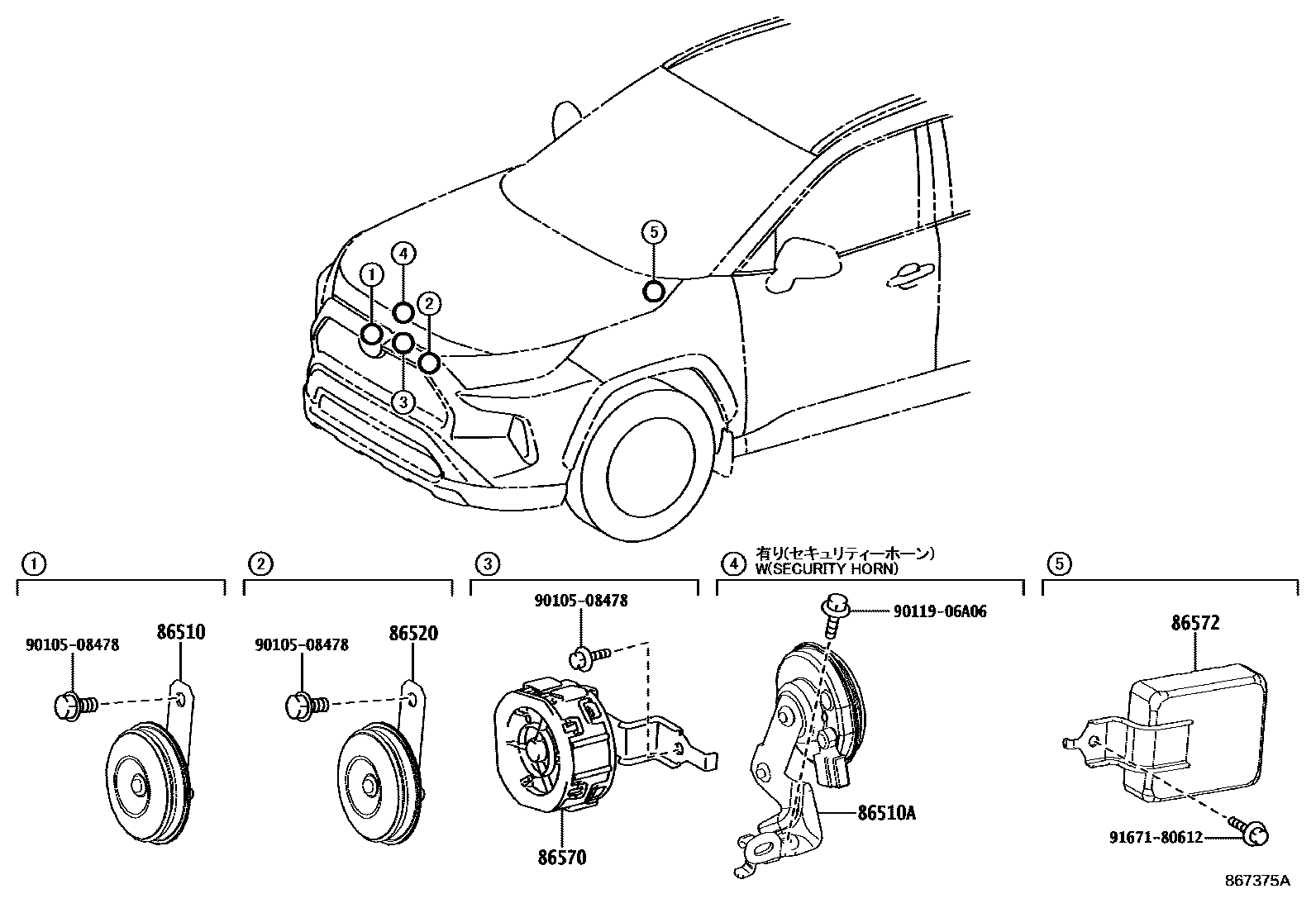

Toyota RAV4 喇叭 — Figure 8611
Toyota RAV4 EPC diagram 8611, 喇叭, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-20280 · 86510-22270 |
| 86510A | Alarm horn assembly | 86560-33060 |
| 86520 | Subwoofer assembly | 86520-20300 · 86520-22260 |
| 86570 | Vehicle intrusion speaker assembly | 86570-42030 |
| 86572 | vehicle hacking speaker controller | 86572-42030 · 86572-42051 · 86572-42160 · 86572-42170 |
