Toyota RAV4 倒车影像和摄像头 — Figure 8606

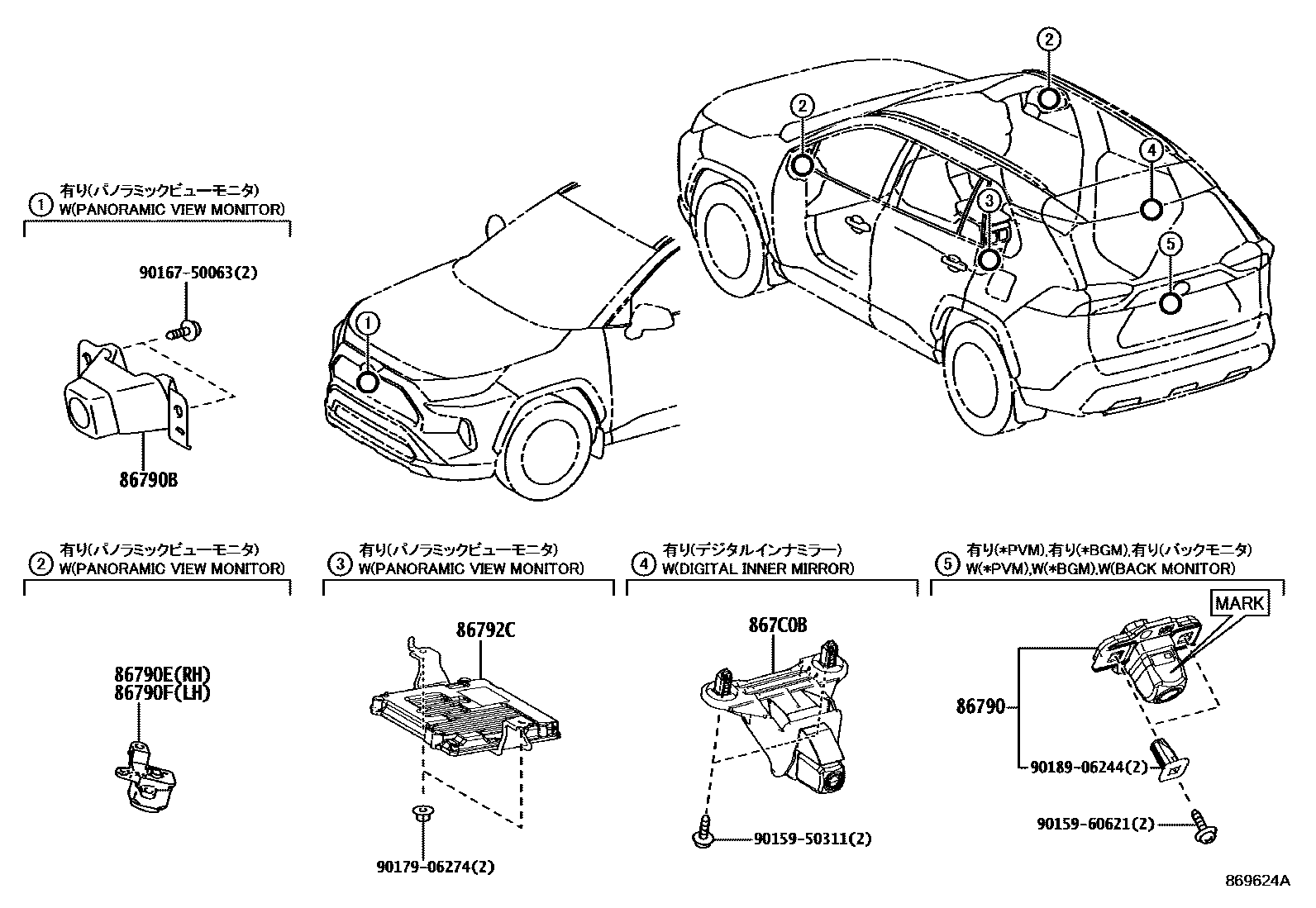

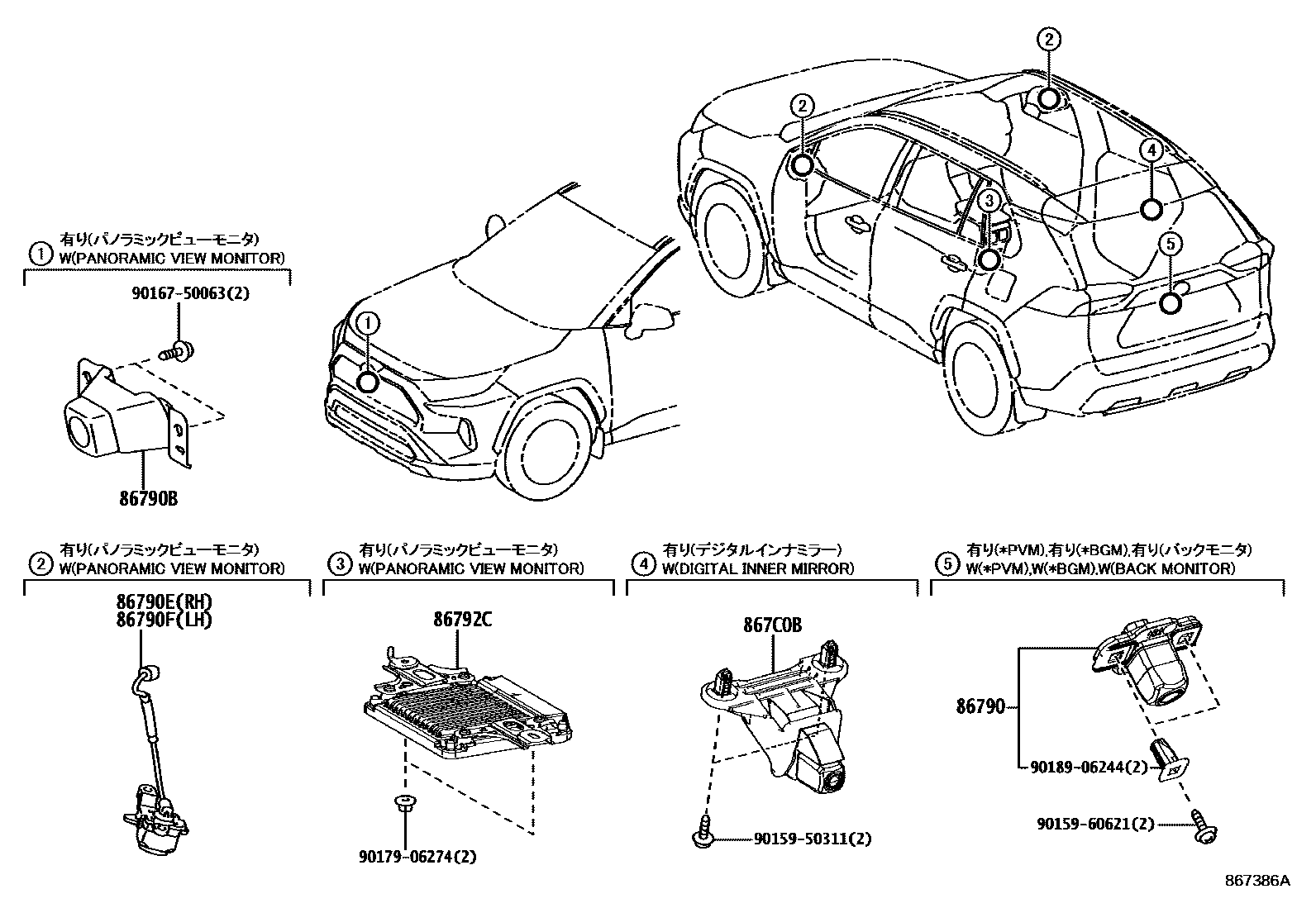

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-42120 · 86790-42250 · 86790-42320 · 86790-42480 · 86790-42481 · 867B0-42030 · 867B0-42090 · 867B0-42110 · 867B0-42111 · 867B0-42112 |
| 86790B | Front image camera assembly | 86790-42130 · 86790-42140 · 86790-42290 · 86790-42291 · 86790-42350 · 86790-42510 · 86790-42511 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-42270 · 86790-42271 · 86790-42370 · 86790-42500 · 86790-42501 · 86790-48160 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-42260 · 86790-42261 · 86790-42360 · 86790-42490 · 86790-42491 · 86790-48150 |
| 86792C | Parking assist ECU | 86792-42050 · 86792-42051 · 86792-42052 · 86792-42090 · 86792-42580 · 86792-42581 |
| 867C0B | ENS. CAMERA, RETROVISEUR INT, ARR | 867C0-42010 · 867C0-42030 |
