Toyota RAV4 扬声器 — Figure 8602

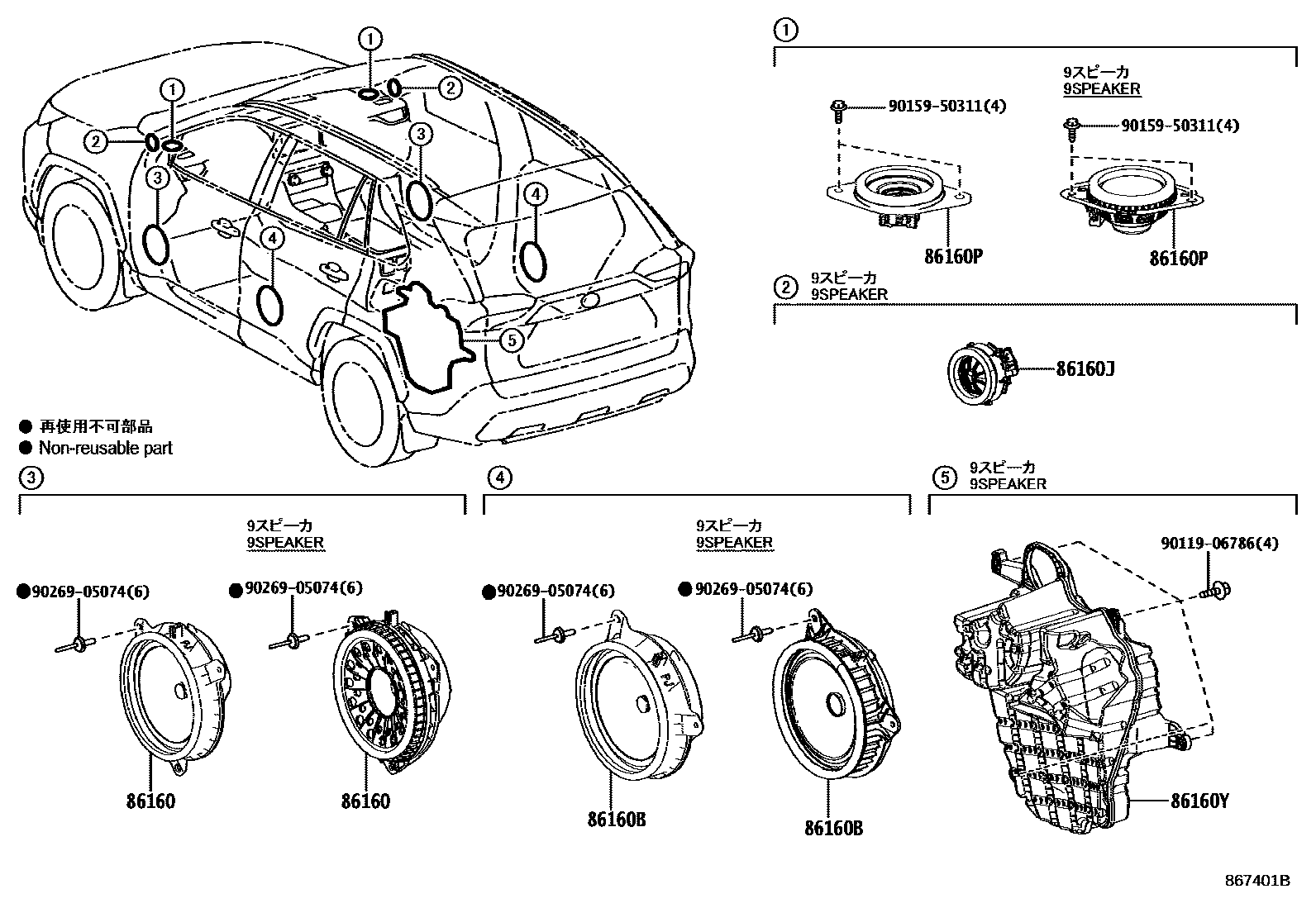

Toyota RAV4 EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0WS00 · 86160-1A210 · 86160-42160 |
| 86160B | Rear speaker assembly | 86160-0WY50 · 86160-1A210 · 86160-42170 |
| 86160J | No. 3 front speaker assembly | 86150-07100 · 86150-42080 |
| 86160P | No. 2 front speaker assembly | 86150-42010 · 86160-33A30 |
| 86160Y | No. 2 rear speaker assembly | 86150-0R060 · 86150-42070 |
