Toyota RAV4 HV控制ECU — Figure 8433

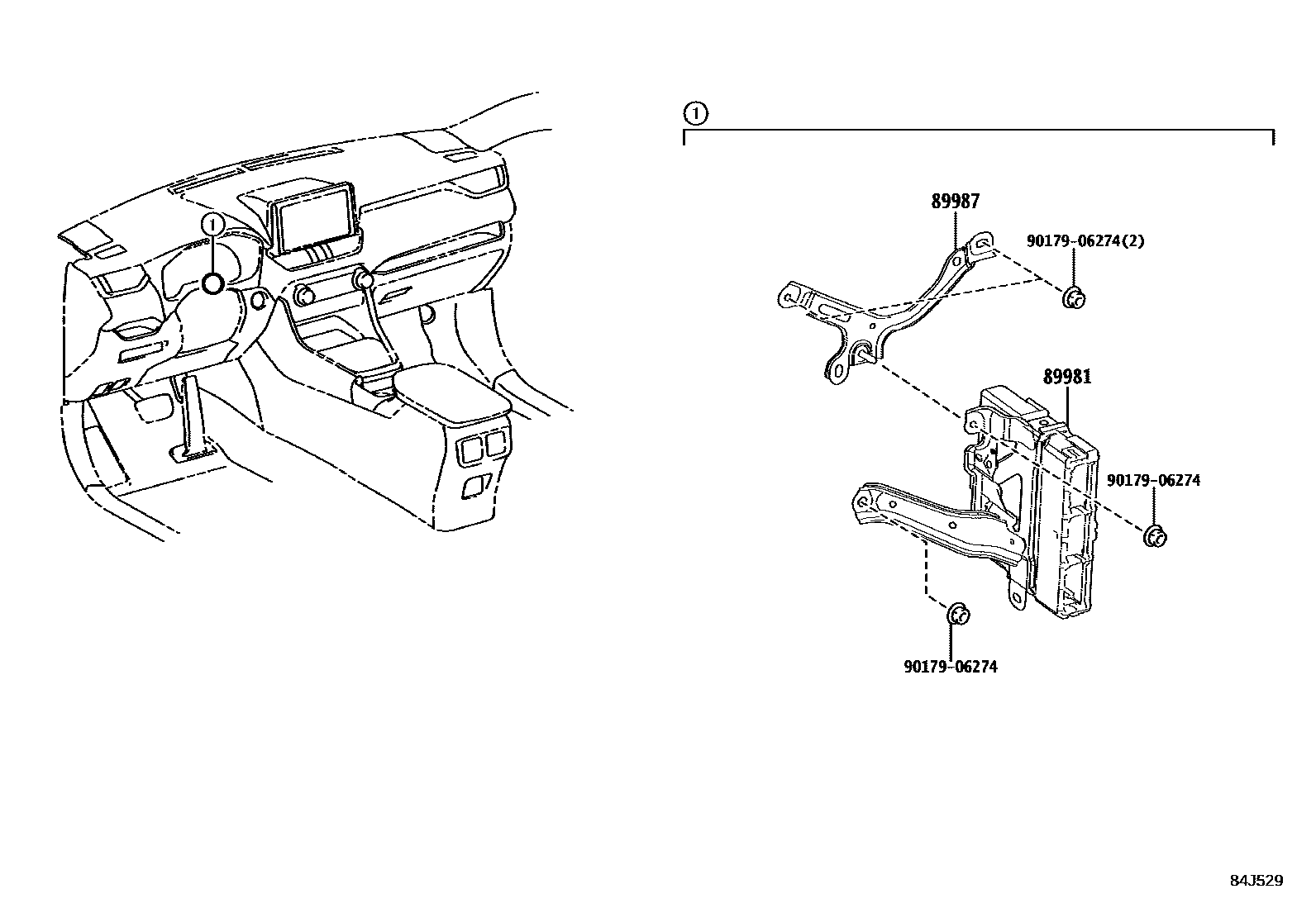

Toyota RAV4 EPC diagram 8433, HV控制ECU, with 1 images and 2 PNC and OE references.

PNC and OE references

PNC	Part name	OE numbers
89981	Hybrid vehicle control ECU	89980-42070 · 89980-42090 · 89980-42100 · 89980-42290 · 89980-42300 · 89980-42370 · 89980-42380 · 89980-42390 · 89980-42600 · 89980-42610 · 89980-42611 · 89980-42620 · 89980-42621 · 89980-42670 · 89980-42671 · 89980-42680 · 89980-42681 · 89980-42A40 · 89980-42A50 · 89980-42A80 · 89980-42A90 · 89980-42B00 · 89980-42G70 · 89980-42G80 · 89980-42G90 · 89980-42J00
89987	No.1 ECU bracket	89987-42030
