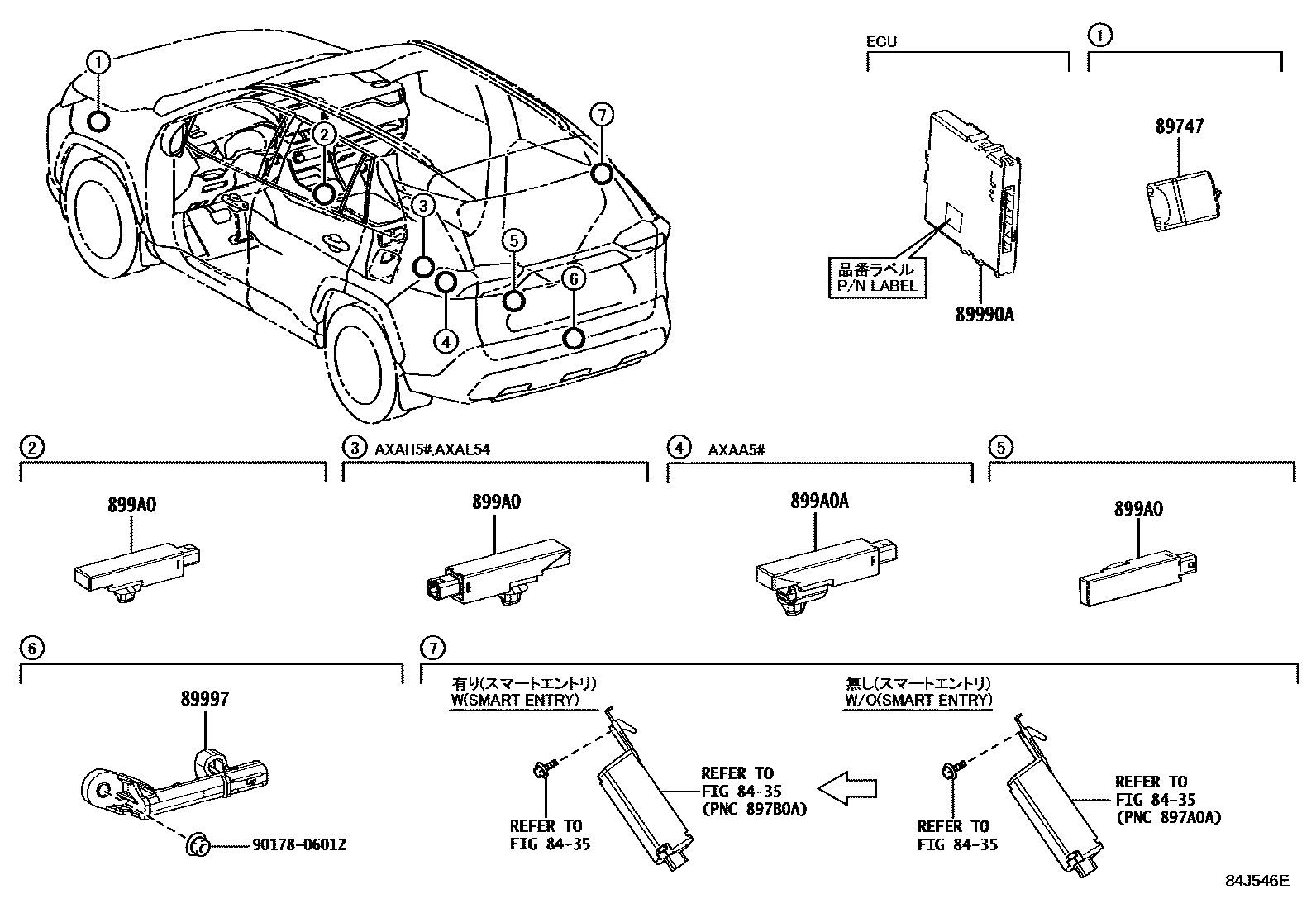

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-42020 · 899H0-42030 · 899H0-42050 · 899H0-42060 · 899H0-42080 · 899H0-42090 · 899H0-42110 · 899H0-42120 · 899H0-42140 · 899H0-42141 · 899H0-42142 · 899H0-42150 · 899H0-42151 · 899H0-42170 · 899H0-42171 · 899H0-42172 · 899H0-42180 · 899H0-42181 · 899H0-42280 · 899H0-42281 · 899H0-42290 · 899H0-42310 · 899H0-42311 · 899H0-42320 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-47010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-42010 |
