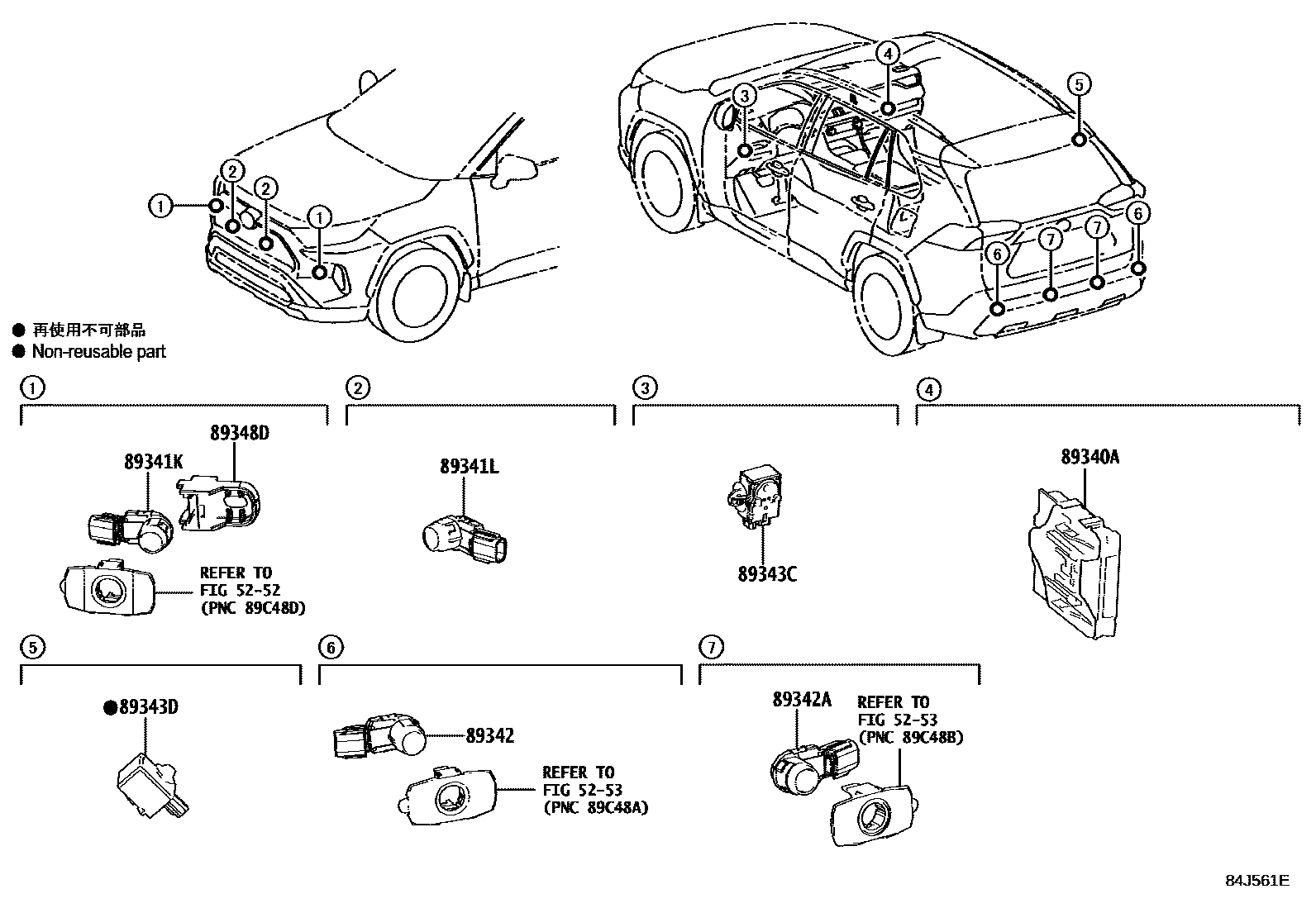

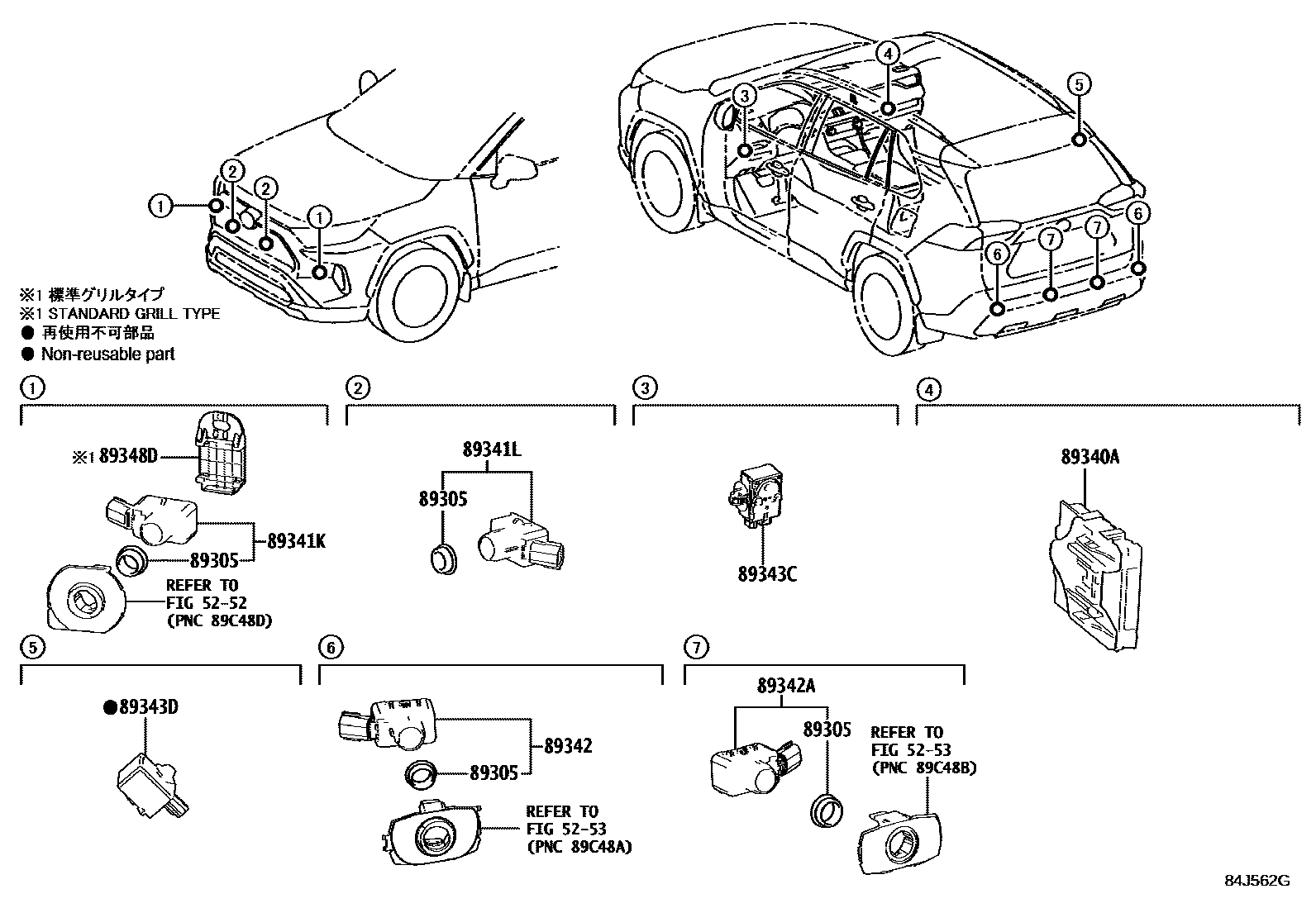

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | JEU COUSSIN, CAPTEUR ULTRASONS | 89305-47010 · 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-42060 · 89340-42070 · 89340-42071 · 89340-42260 · 89340-42420 |
| 89341K | CAPTEUR, A ULTRASONS, D'ANGLE AVANT | 89341-33220 |
| 89341L | CAPTEUR, A ULTRASONS, CENTRAL AVANT | 89341-33220 |
| 89342 | CAPTEUR, A ULTRASONS, D'ANGLE ARRIERE | 89341-33220 |
| 89342A | CAPTEUR, A ULTRASONS, CENTRAL ARRIERE | 89341-33220 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-30040 |
| 89348D | Ultrasonic sensor clip | 89348-33190 · 89348-58130 |
