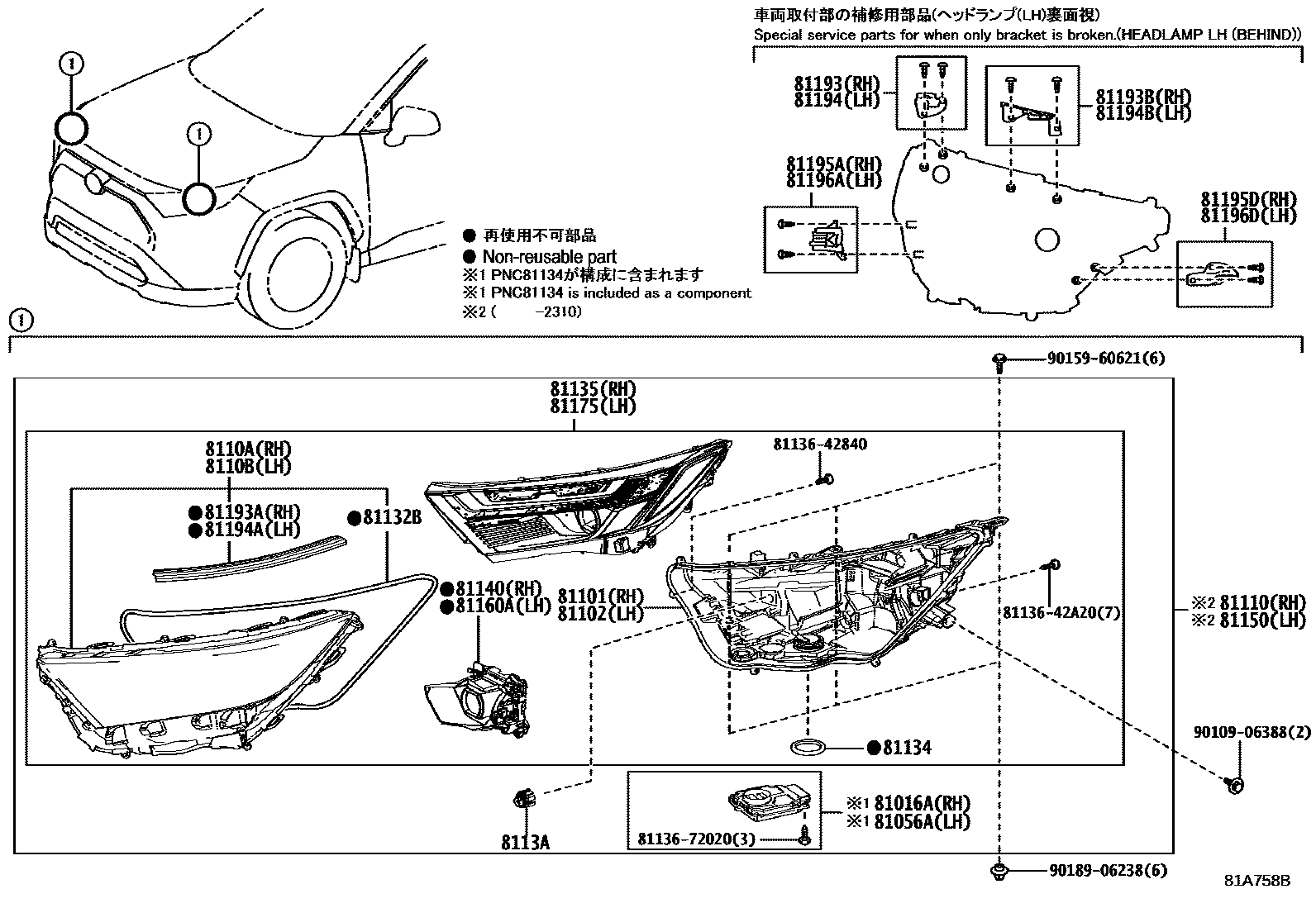

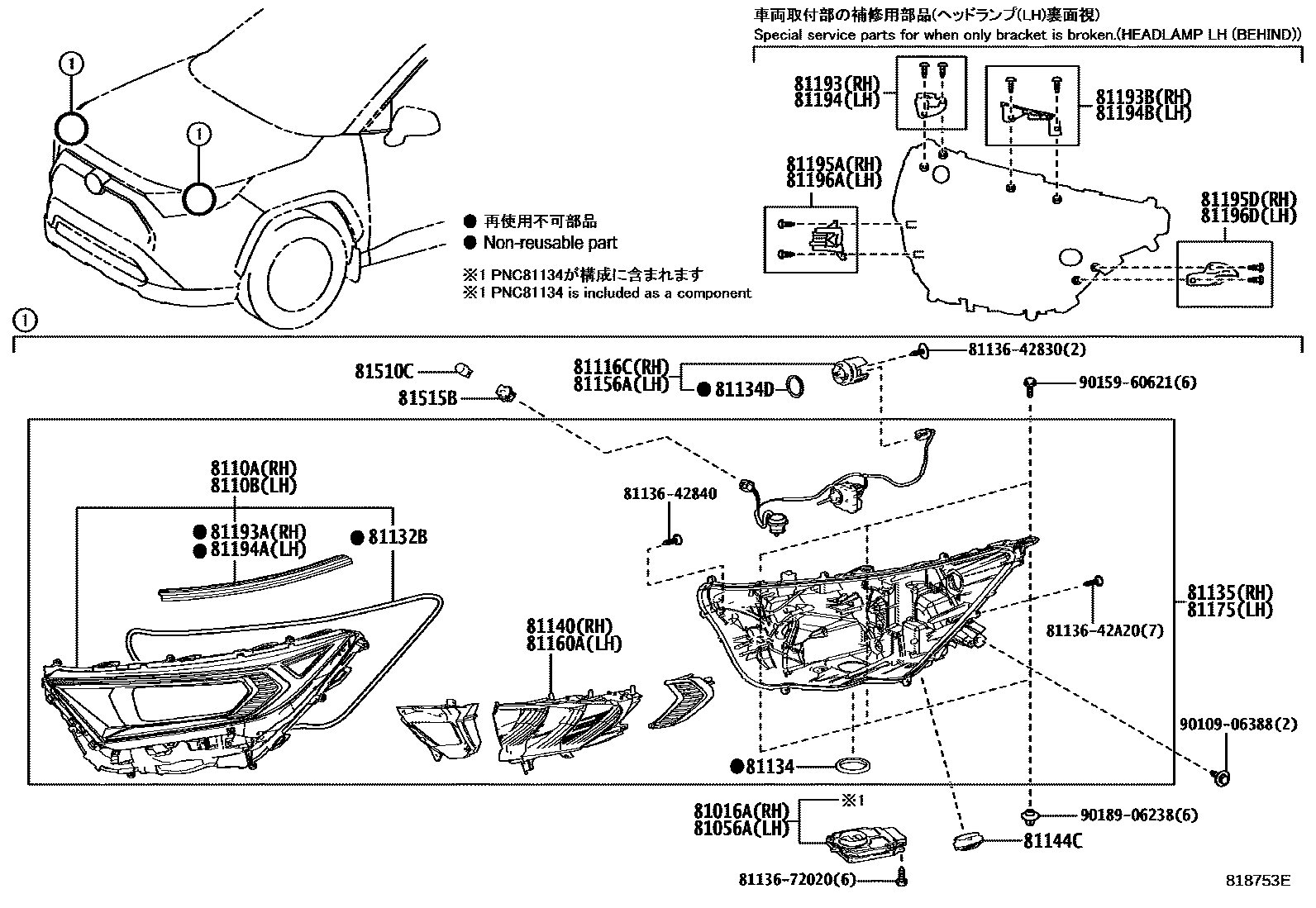

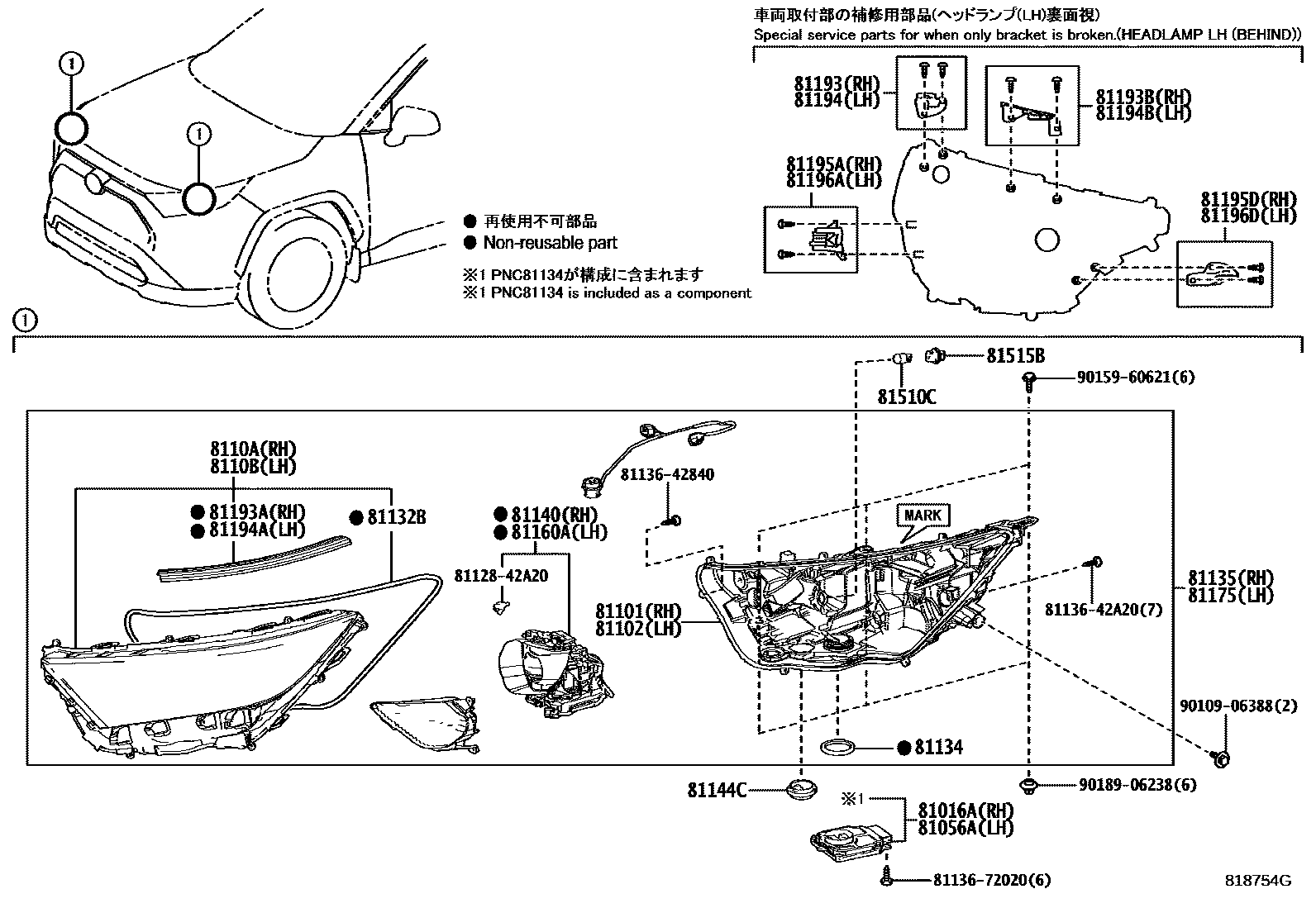

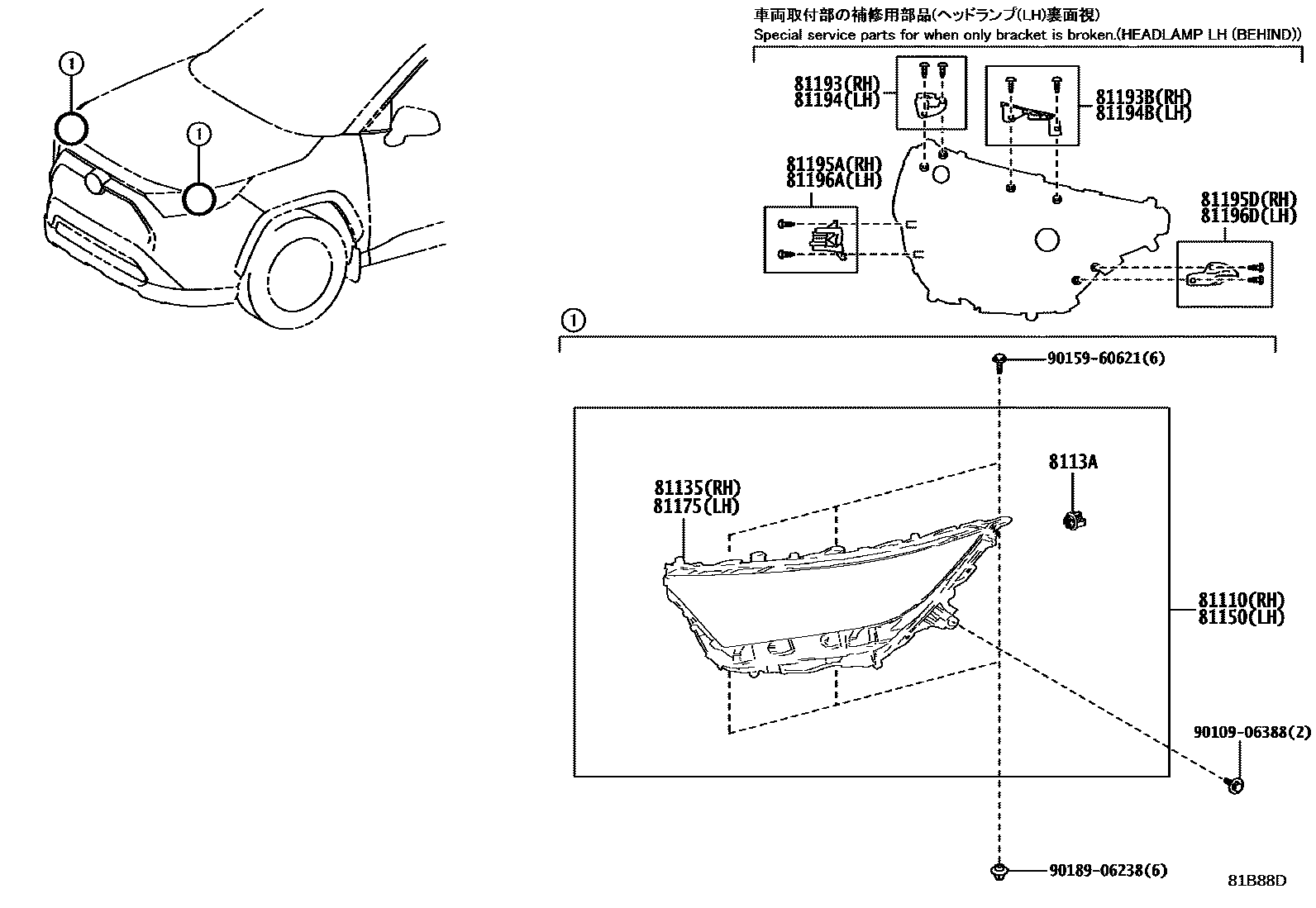

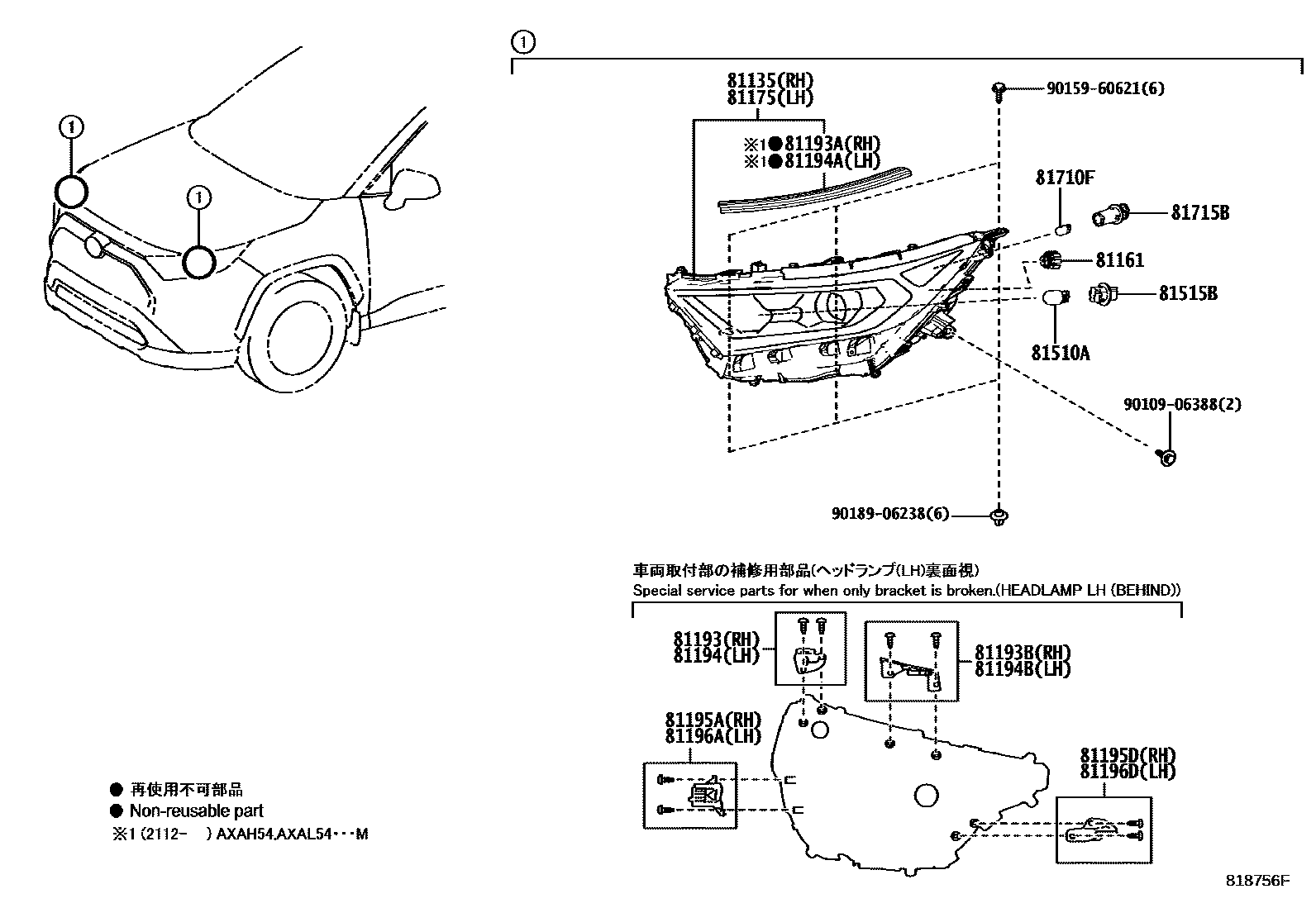

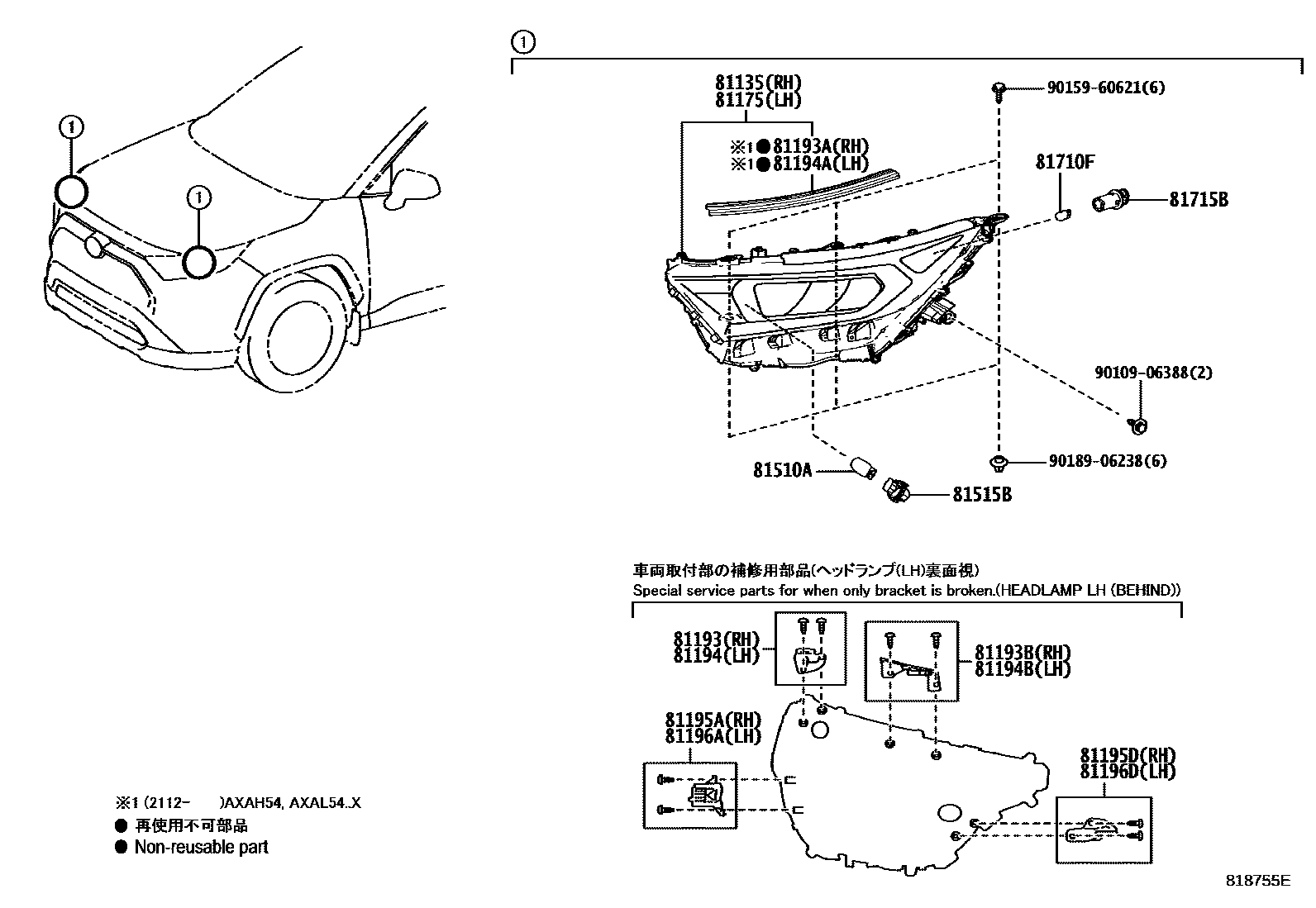

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 6 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, DROIT | 81016-42830 · 81016-42A20 · 81016-42A21 · 81016-42E00 |
| 81056A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, GAUCHE | 81056-42830 · 81056-42A20 · 81056-42A21 · 81056-42E00 |
| 81101 | SS-ENS. LOGEMENT, PHARE, MD | 8111B-42A20 · 8111B-42E00 |
| 81102 | SS-ENS. LOGEMENT, PHARE, MG | 8115B-42A20 · 8115B-42E00 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-42840 · 8110A-42842 · 8110A-42A30 · 8110A-42A33 · 8110A-42E10 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-42840 · 8110B-42842 · 8110B-42A30 · 8110B-42A33 · 8110B-42E10 |
| 81110 | Right headlight assembly | 81110-42D90 |
| 81116C | Right headlight bracket | 81116-42830 |
| 81132B | Headlight cover gasket | 81132-42830 |
| 81134 | headlight gasket | 81134-42830 |
| 81134D | No. 2 headlight gasket | 81134-42840 |
| 81135 | Right headlight assembly | 81130-42810 · 81130-42811 · 81130-42812 · 81130-42820 · 81130-42821 · 81130-42822 · 81130-42A00 · 81130-42A01 · 81130-42A02 · 81130-42D80 · 81130-42D90 · 81130-42E70 · 81130-42E80 · 81145-42840 · 81145-42841 · 81145-42842 · 81145-42A30 · 81145-42A31 · 81145-42A32 · 81145-42A33 · 81145-42E10 |
| 8113A | LED, CLIGNOTANT AV PHARE | 81532-48010 · 81965-42010 |
| 81140 | Right headlight LED assembly assembly | 81140-42840 · 81140-42A30 · 81140-42A31 · 81140-42E10 |
| 81144C | Headlight lamp holder cover | 81135-42830 |
| 81150 | Left headlight assembly | 81150-42D90 |
| 81156A | Left headlight bracket | 81156-42830 |
| 81160A | Left headlight LED assembly assembly | 81160-42840 · 81160-42A30 · 81160-42A31 · 81160-42E10 |
| 81161 | LED, FEU DE GABARIT | 81542-48010 |
| 81175 | Left headlight assembly | 81170-42810 · 81170-42811 · 81170-42812 · 81170-42820 · 81170-42821 · 81170-42822 · 81170-42A00 · 81170-42A01 · 81170-42A02 · 81170-42D80 · 81170-42D90 · 81170-42E70 · 81170-42E80 · 81185-42840 · 81185-42841 · 81185-42842 · 81185-42A30 · 81185-42A31 · 81185-42A32 · 81185-42A33 · 81185-42E10 |
| 81193 | Right headlight upper protective ring | 81193-42050 |
| 81193A | Right headlight protective cover | 81117-42830 · 81117-42831 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-42060 |
| 81194 | Left headlight upper protective ring | 81194-42050 |
| 81194A | Left headlight protective cover | 81157-42830 · 81157-42831 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-42060 |
| 81195A | Right headlight lower protection ring | 81195-42050 |
| 81195D | Right No. 2 headlight lower protection ring | 81195-42060 |
| 81196A | Left headlight lower protection ring | 81196-42050 |
| 81196D | No. 2 left headlight lower protection ring | 81196-42060 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-15025 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-60083 |
| 81710F | Front width light bulb | 90981-11064 |
| 81715B | Front width light lamp holder and wiring harness | 81138-22680 |
