Toyota RAV4 徽标和铭牌 — Figure 7551

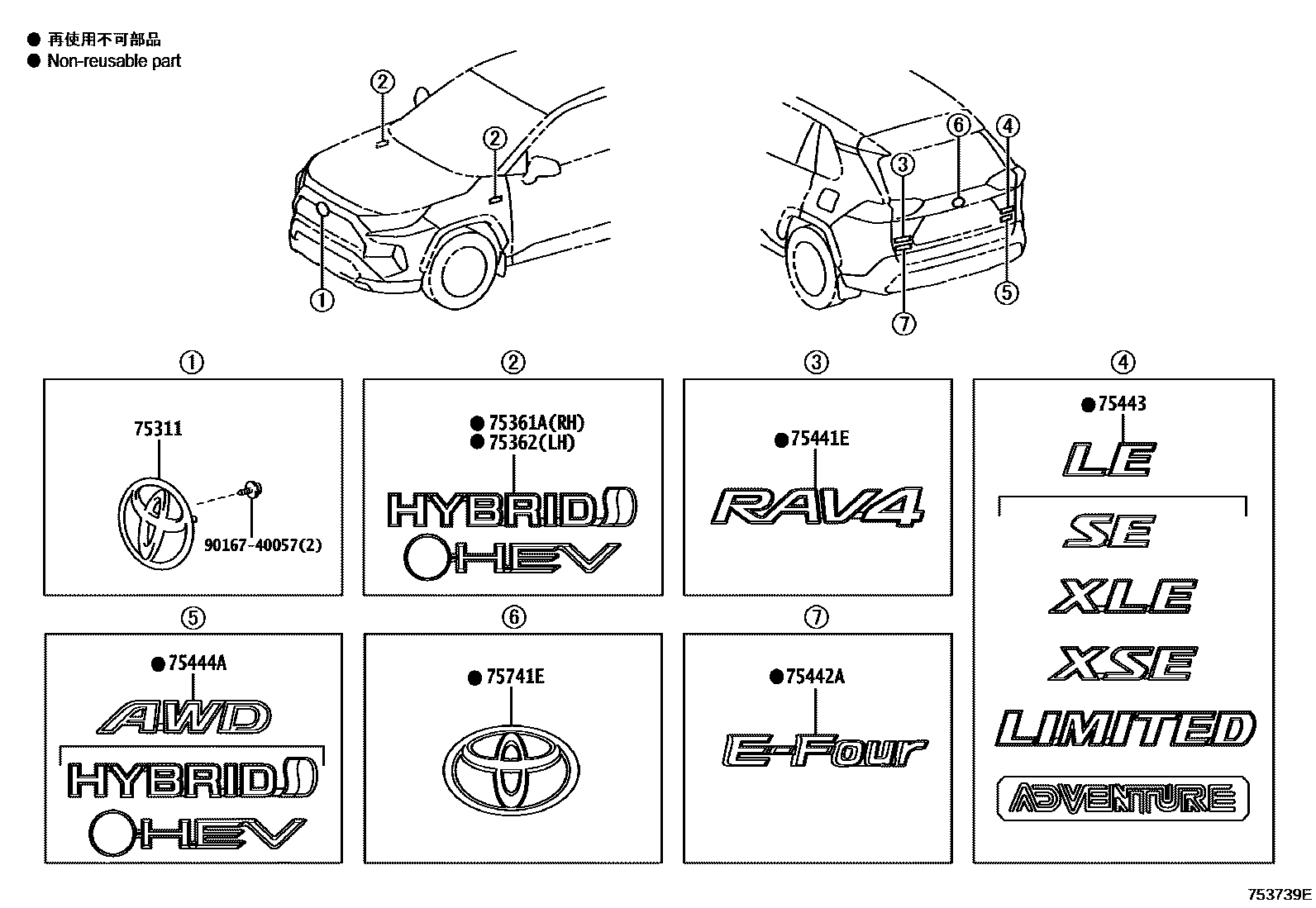

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-33130 · 53141-33140 · 53141-42030 |
| 75361A | Front fender No. 1 nameplate | 75361-42050 · 75440-47010 |
| 75362 | Front fender No. 2 nameplate | 75362-42050 · 75440-47010 |
| 75441E | Back door No. 1 nameplate | 75431-42180 · 75431-42220 |
| 75442A | No. 2 nameplate on back door | 75444-42180 |
| 75443 | No. 3 nameplate on back door | 75440-42110 · 75443-42080 · 75443-42090 · 75443-42100 · 75443-42110 · 75443-42120 · 75443-42130 |
| 75444A | No. 4 nameplate on back door | 75440-42110 · 75444-42170 · 75445-42030 |
| 75741E | logo | 75403-42060 · 90975-02070 |
