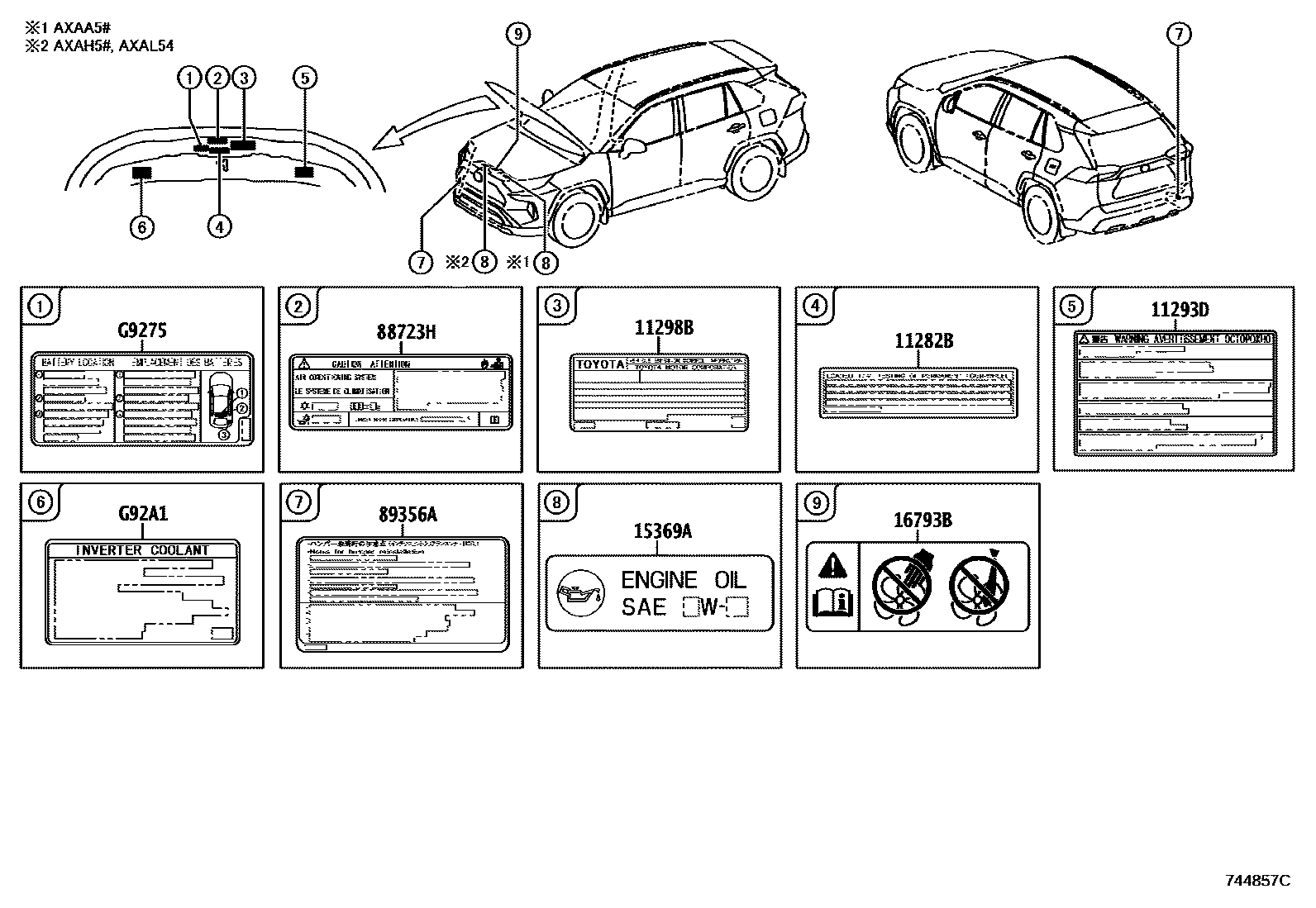

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-25070 · 11298-25071 · 11298-25072 · 11298-25073 · 11298-25074 · 11298-25075 · 11298-25076 · 11298-25080 · 11298-25081 · 11298-25082 · 11298-25083 · 11298-25084 · 11298-25085 · 11298-25086 · 11298-25280 · 11298-25281 · 11298-25282 · 11298-25283 |
| 15369A | Engine oil information label | 15369-25010 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-48020 |
| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-42030 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74514-47010 · 74514-48020 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74528K | Door closer warning label | 74528-42011 |
| 74535F | Back door auxiliary mechanism information label | 74535-42100 |
| 74541B | Small spare tire warning plate | 42668-42020 · 42668-42030 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559B | fuel information label | 74559-20140 · 74559-48010 |
| 74559C | ETIQUETTE, INFORMATIONS CARB, NO.2 | 74559-30070 |
| 74596A | Side air bag warning label | 74596-74020 · 74596-78010 |
| 74599D | Driver and passenger air bag information labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-42A10 · 42661-42A20 · 42661-42A30 · 42661-42A40 · 42661-42A50 · 42661-42A60 · 42661-42A70 · 42661-42A90 · 42661-42C30 · 42661-42C40 · 42661-42C60 · 42661-42D10 · 42661-42J70 · 42661-42J80 · 42661-42J90 |
| 88723H | Cooler maintenance warning label | 88723-11010 · 88723-11020 · 88723-11050 · 88723-33170 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-12010 · G9275-48120 |
| G92A1 | HV coolant system information label | G92A1-76010 |
