Toyota RAV4 battery holder — Figure 7454

Toyota RAV4 EPC diagram 7454, battery holder, with 3 images and 5 PNC and OE references.

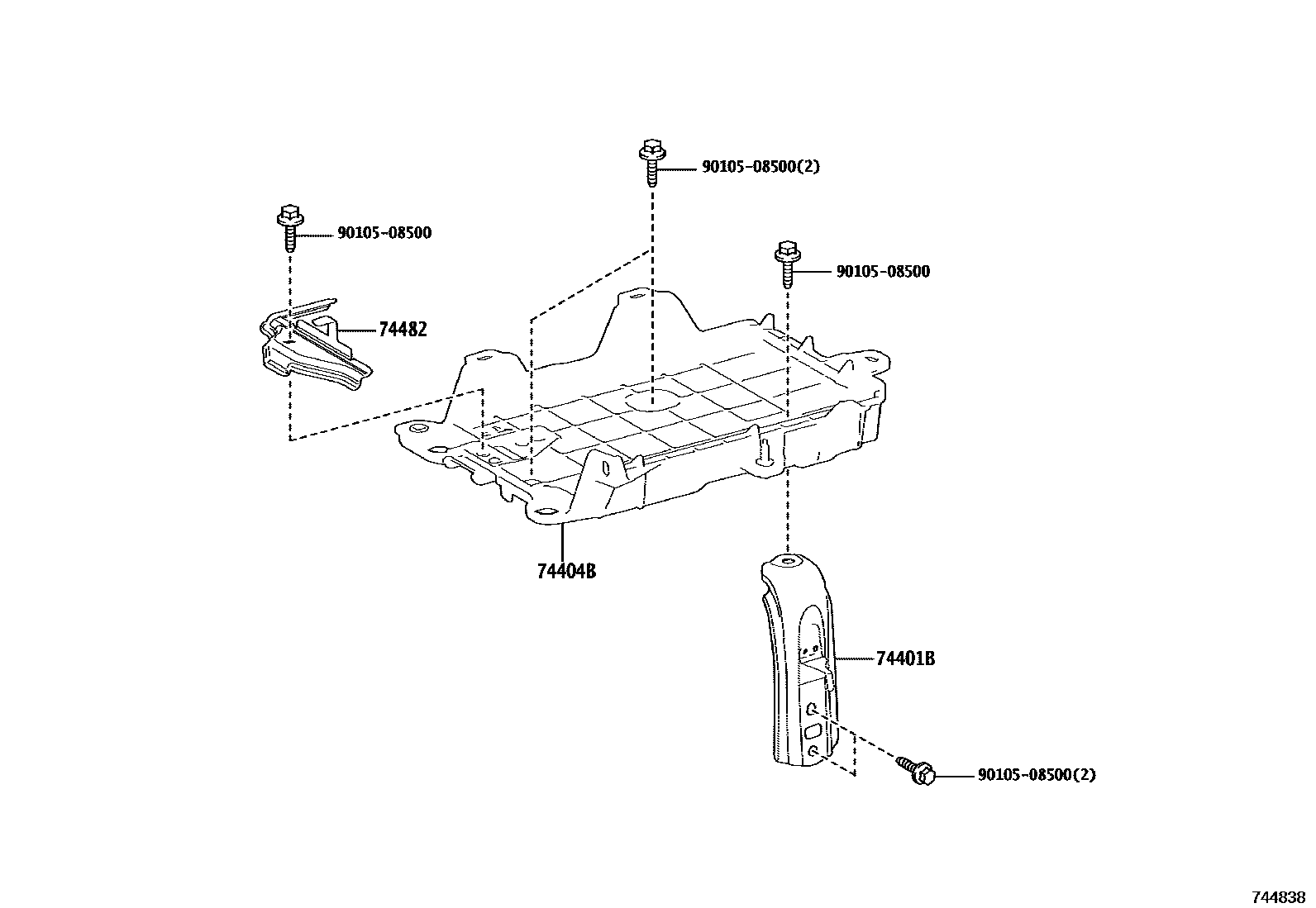

Toyota RAV4 battery holder EPC diagram — 744838
battery holder — 744838 (201811 – 999999)

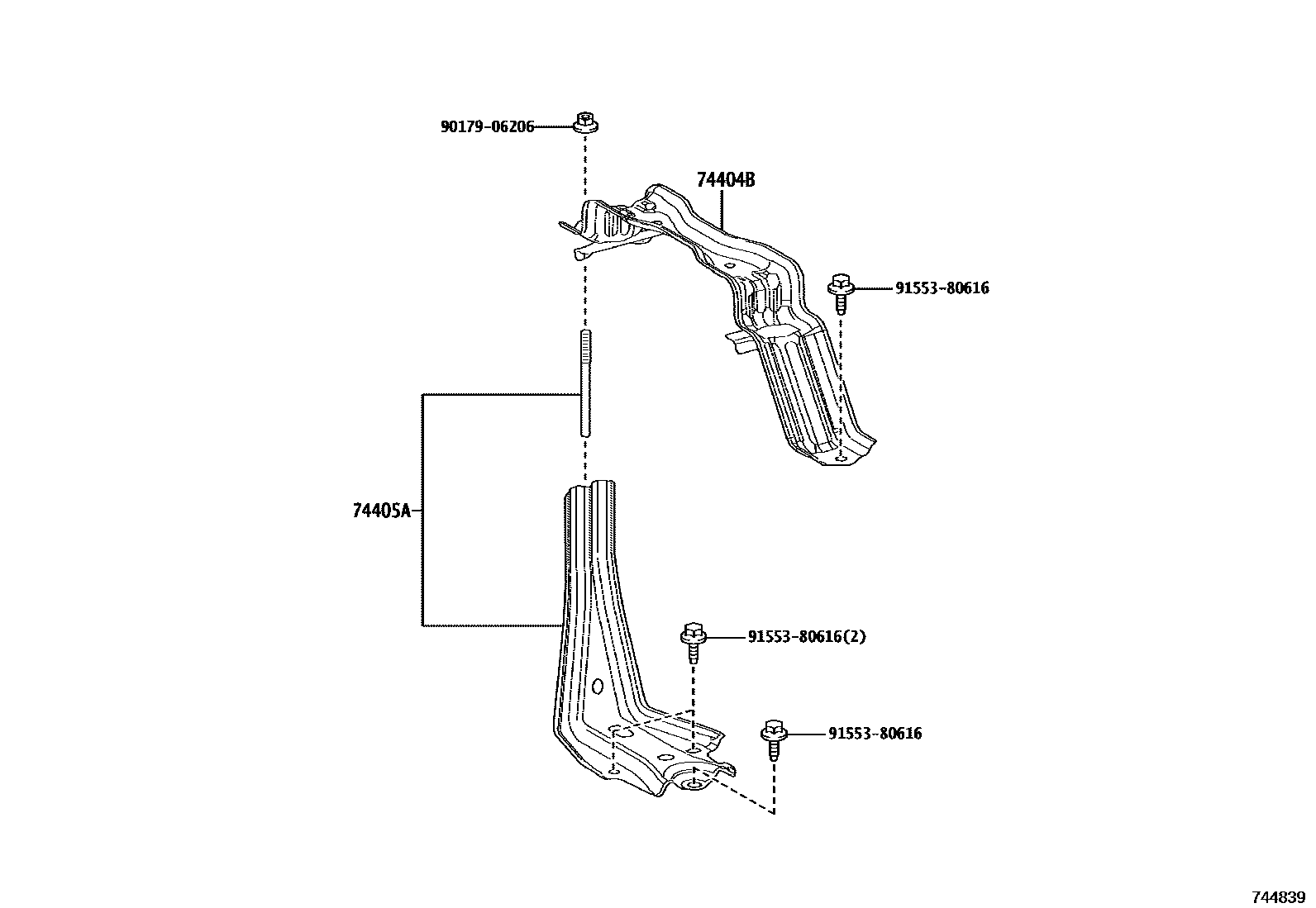

Toyota RAV4 battery holder EPC diagram — 744839
battery holder — 744839 (201811 – 999999)

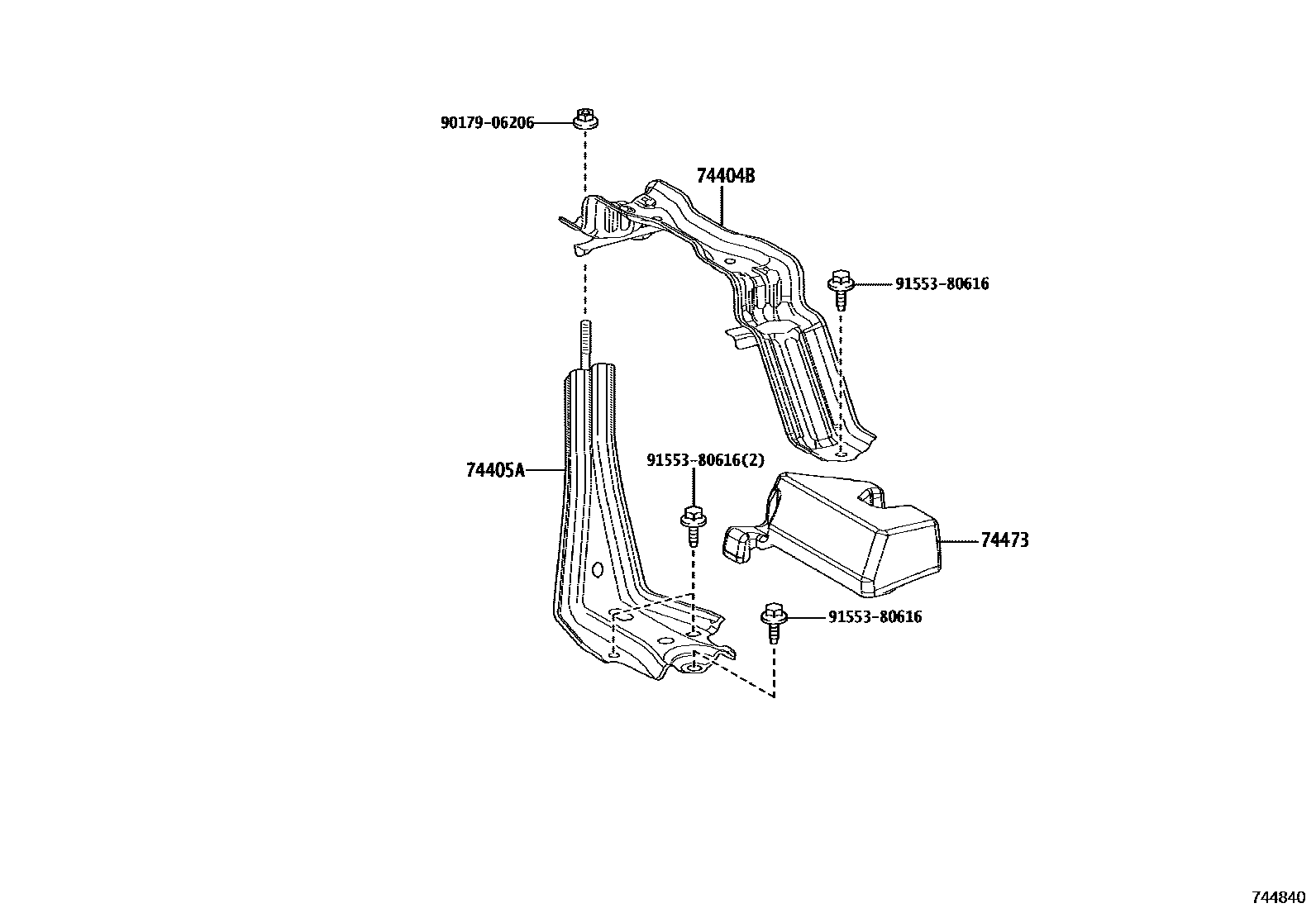

Toyota RAV4 battery holder EPC diagram — 744840
battery holder — 744840 (201902 – 999999)

PNC and OE references

PNCPart nameOE numbers
74401BSOUS-ENS. SUPPORT, PORTE-BATTERIE74401-33010
74404BBattery clip sub-assembly74404-33160 · 74440-42010
74405ABattery upper right bracket sub-assembly74405-42020
74473Battery separator74473-42030
74482No. 2 battery clip74482-33020
