Toyota RAV4 锁芯组件 — Figure 6765

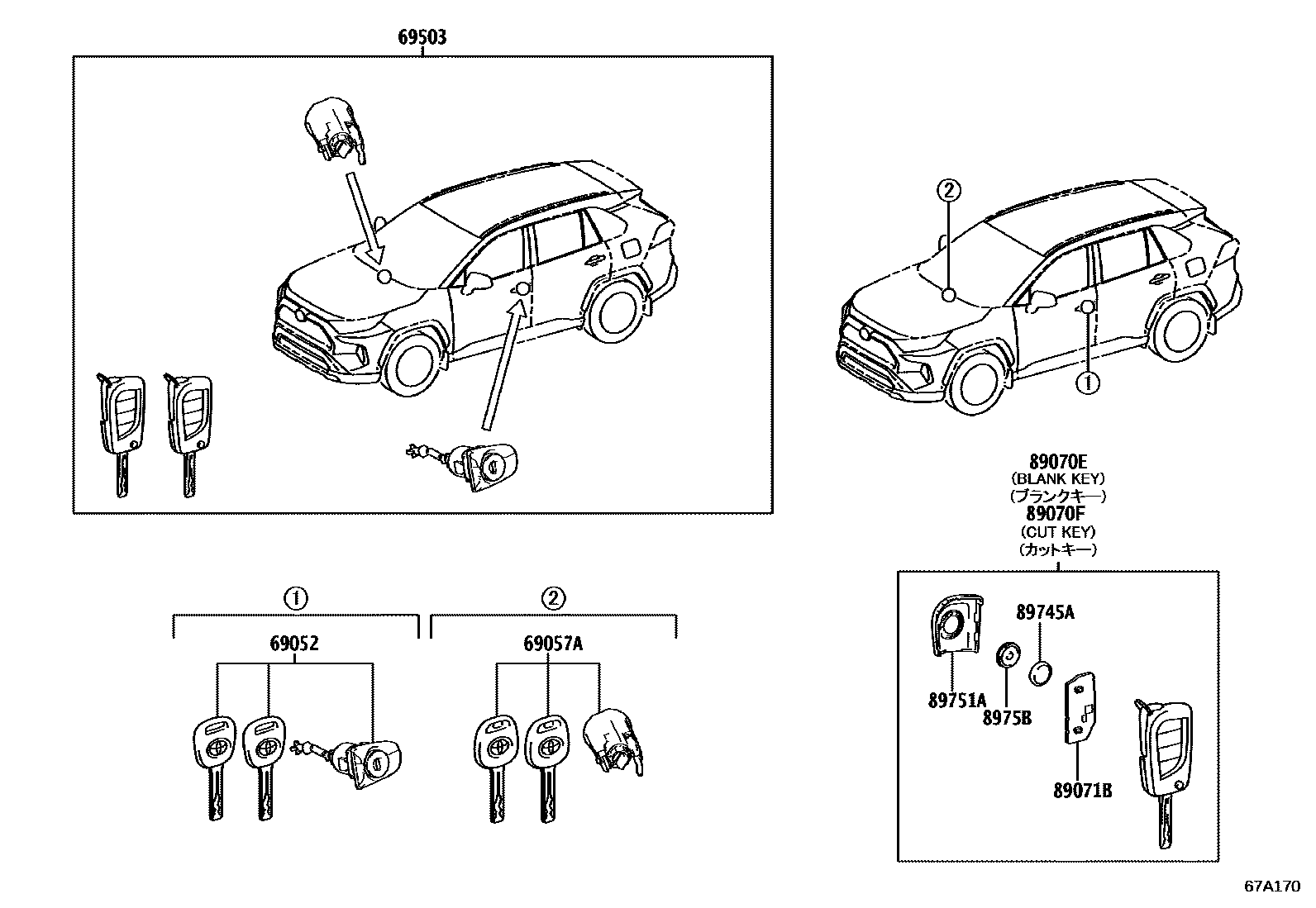

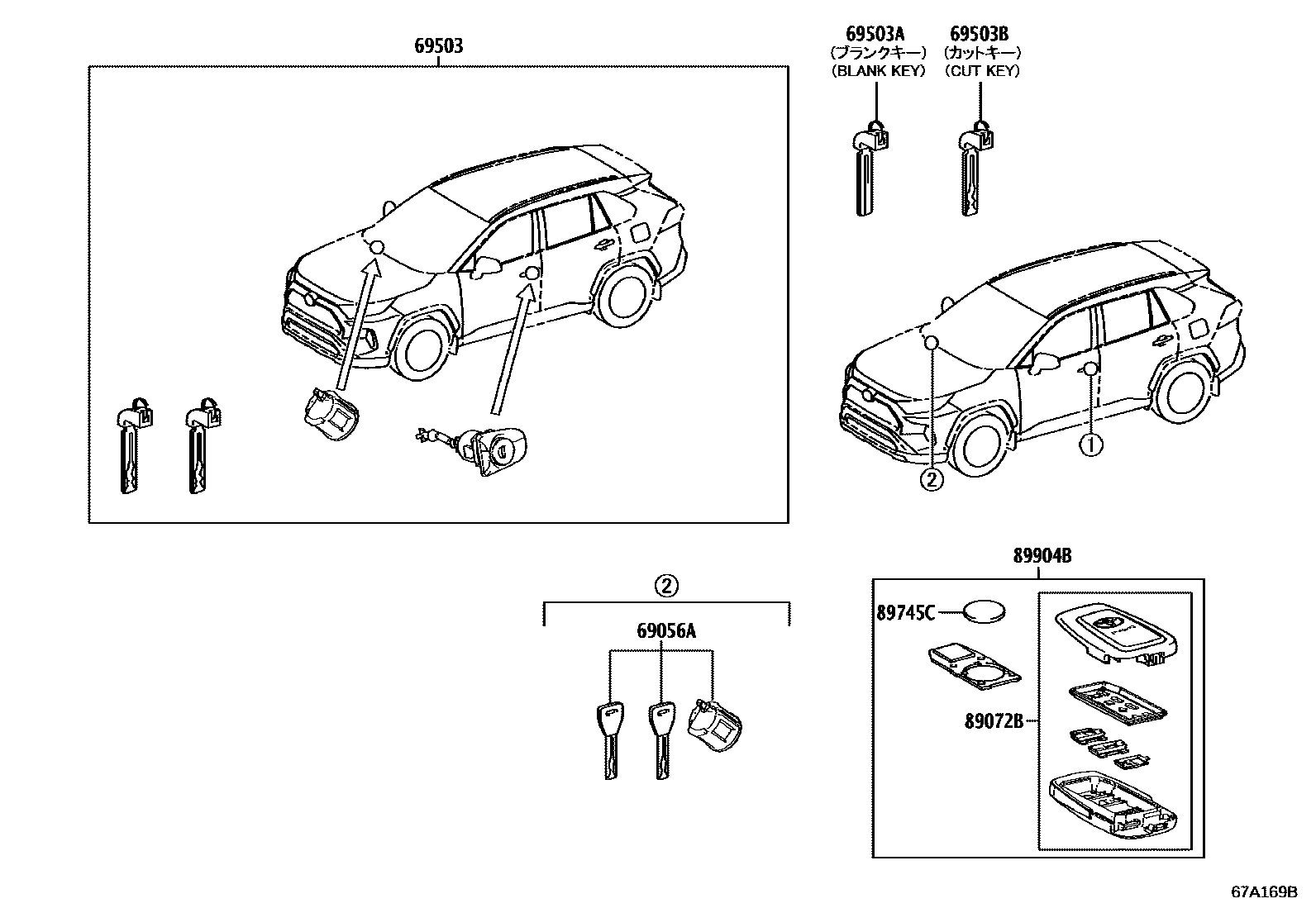

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-42230 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-50160 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33410 |
| 69503 | Door lock cylinder components | 69005-42810 · 69005-42B10 · 89704-42C10 · 89704-42G00 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 89070E | Remote key assembly | 89070-42G00 |
| 89070F | Remote key assembly (internal tooth key) | 89070-42G70 |
| 89071B | Remote key sub-assembly module assembly | 89071-42260 · 89071-42420 |
| 89072B | Remote key shell assembly (for smart key) | 89072-42690 · 89072-42700 · 89072-42710 · 89072-42720 · 89072-42770 · 89072-42780 · 89072-42790 · 89072-42800 · 89072-42C20 · 89072-42C30 · 89072-42C40 · 89072-42C50 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-42010 · 8990H-42020 · 8990H-42030 · 8990H-42040 · 8990H-42250 · 8990H-42260 · 8990H-42270 · 8990H-42280 · 8990H-42670 · 8990H-42680 · 8990H-42690 · 8990H-42700 · 8990H-42810 · 8990H-42820 |
