Toyota RAV4 后门板和后门玻璃 — Figure 6755

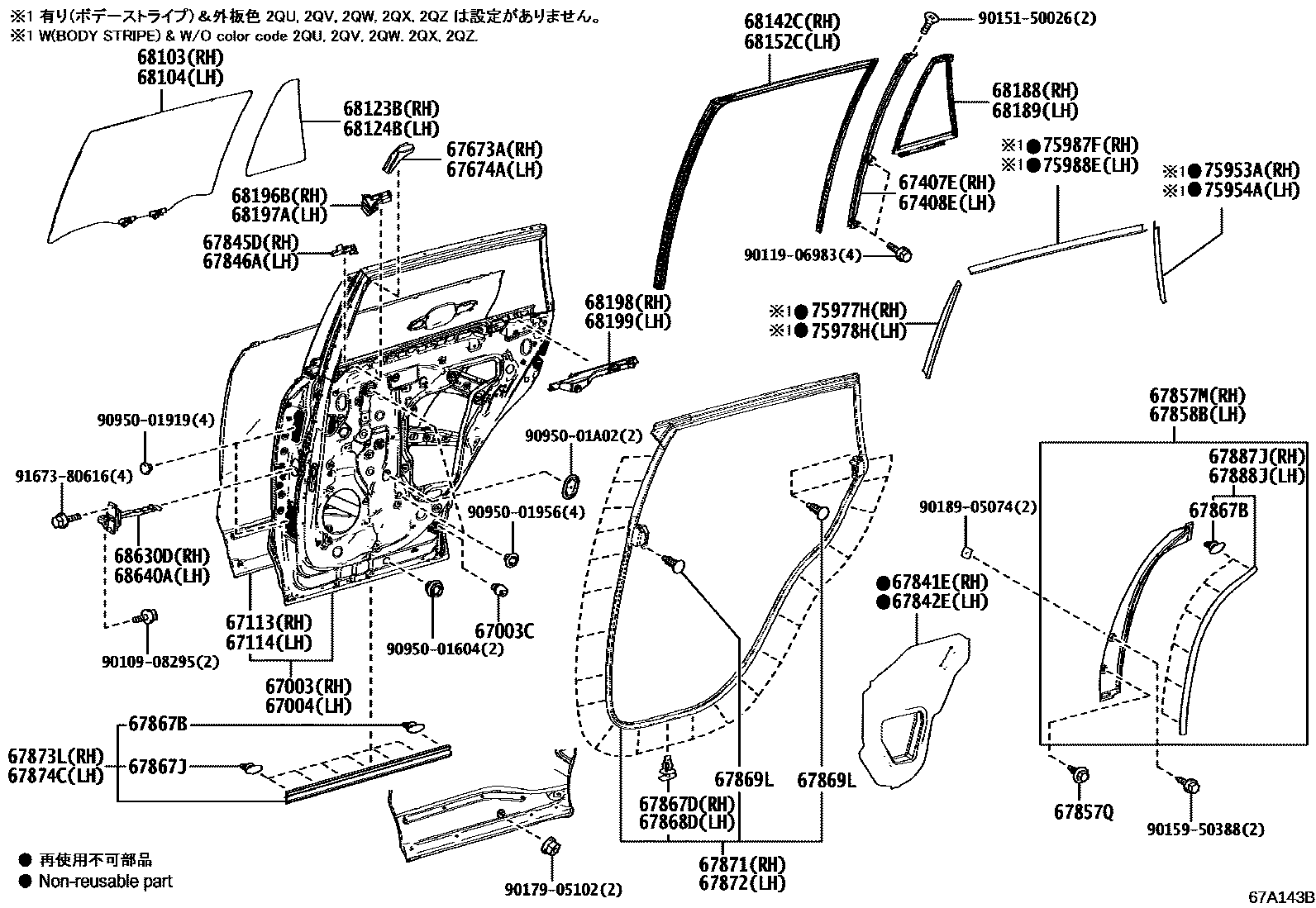

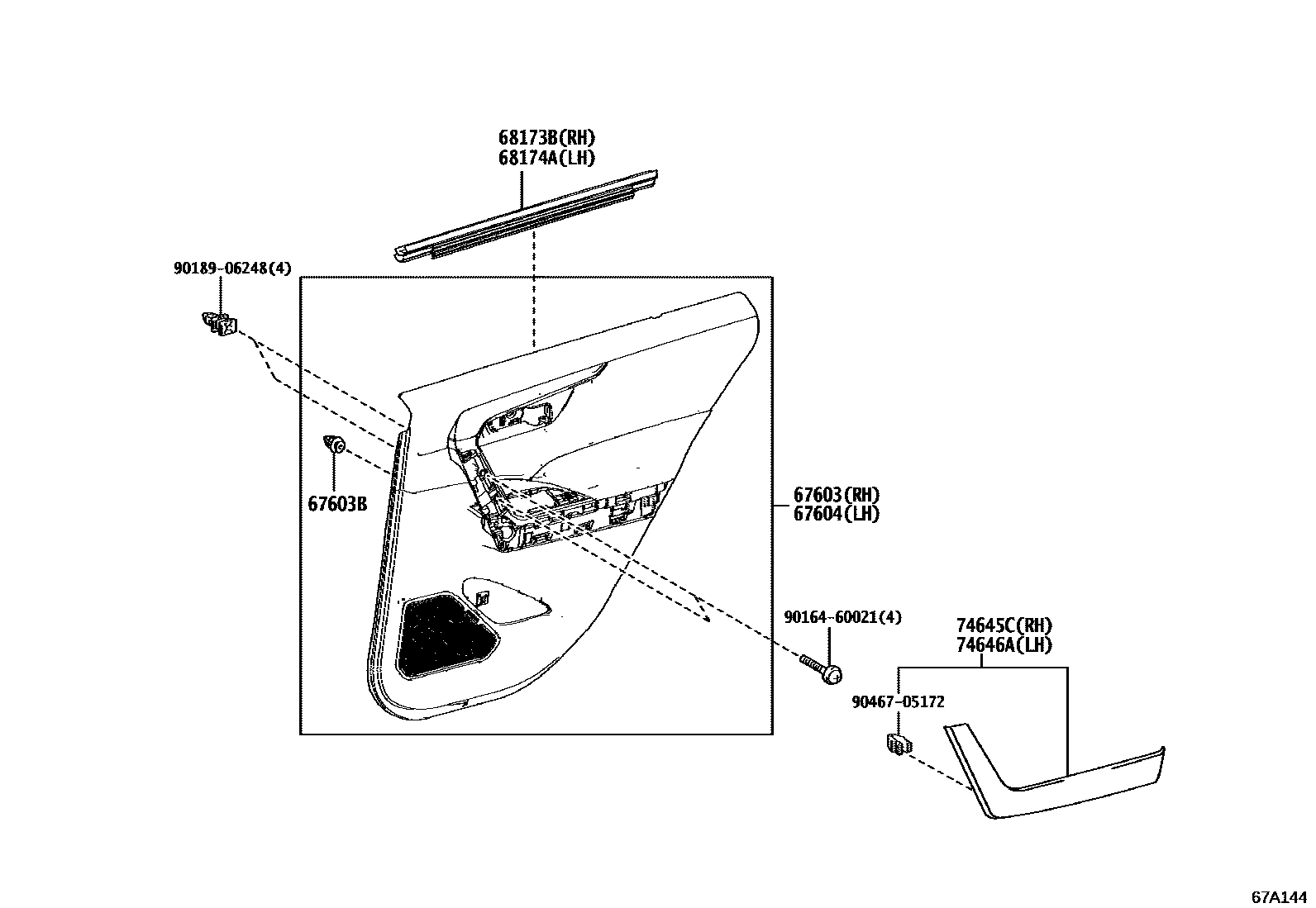

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-42190 · 67003-42191 · 67003-42200 |
| 67003C | Rear door panel cushion | 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-42190 · 67004-42191 · 67004-42200 |
| 67113 | Right rear door outer panel | 67113-42120 |
| 67114 | Left rear door outer panel | 67114-42120 |
| 67407E | Right rear door window divider sub-assembly | 67407-42050 |
| 67408E | Left rear door window divider sub-assembly | 67408-42050 |
| 67603 | Right rear door decorative panel sub-assembly | 67630-42661 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67604 | Left rear door decorative panel sub-assembly | 67640-42661 |
| 67673A | Right rear door frame decorative strip | 67673-42010 |
| 67674A | Left rear door frame decorative strip | 67674-42010 |
| 67841E | Right rear door access hole cover | 67841-42070 |
| 67842E | Left rear door access hole cover | 67842-42050 |
| 67845D | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MD | 67845-42010 |
| 67846A | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MG | 67846-42010 |
| 67857M | Right rear door panel protector | 67857-42100 · 67857-42110 |
| 67858B | Left rear door panel protector | 67858-42030 · 67858-42040 |
| 67867B | Door seal strip clip (for rear door) | 53145-60030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67867J | Right door seal strip clip (for rear door) | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869L | Rear door seal strip clip | 67869-26050 |
| 67871 | Right rear door sealing strip | 67871-42140 |
| 67872 | Left rear door sealing strip | 67872-42140 |
| 67873L | PROFILE ETANCH., PORTE ARRIERE, NO.5 DROIT | 67873-42030 |
| 67874C | PROFILE ETANCH., PORTE ARRIERE, NO.5 GAUCHE | 67874-42030 |
| 67887J | Entry door panel No. 2 right side sealing strip | 67887-42010 |
| 67888J | Entry door panel No. 2 left side seal | 67888-42010 |
| 68103 | Right rear door glass sub-assembly | 68103-42190 · 68103-42200 · 68103-42250 |
| 68104 | Left rear door glass sub-assembly | 68104-42190 · 68104-42200 · 68104-42250 |
| 68123B | Right rear door corner window glass | 68123-42190 · 68123-42200 · 68123-42240 |
| 68124B | Left rear door corner window glass | 68124-42190 · 68124-42200 · 68124-42240 |
| 68142C | Right rear door glass lift slot | 68142-42060 · 68142-42061 |
| 68152C | Left rear door glass lift slot | 68152-42060 · 68152-42061 |
| 68173B | Right rear door glass inner sealing strip | 68173-42060 |
| 68174A | Left rear door glass inner sealing strip | 68174-42050 |
| 68188 | Right rear door corner window seal | 68188-42070 |
| 68189 | Left rear door corner window seal | 68189-42070 |
| 68196B | Right rear door beltline front seal | 68196-42010 |
| 68197A | Left rear door beltline front seal | 68197-42010 |
| 68198 | Right rear door beltline rear seal | 68198-42010 |
| 68199 | Left rear door waistline rear seal | 68199-42010 |
| 68630D | Right rear door opening limiter assembly | 68630-42050 |
| 68640A | Left rear door opening limiter assembly | 68630-42050 |
| 75953A | Inner right rear light-shielding film | 75953-42010 |
| 75954A | Inner left rear light-shielding film | 75954-42010 |
| 75977H | Right rear door outer lower trim strip | 75977-42050 |
| 75978H | Left rear door outer lower trim strip | 75978-42050 |
| 75987F | Right rear door outer trim | 75987-42060 |
| 75988E | Left rear door outer trim | 75988-42060 |
