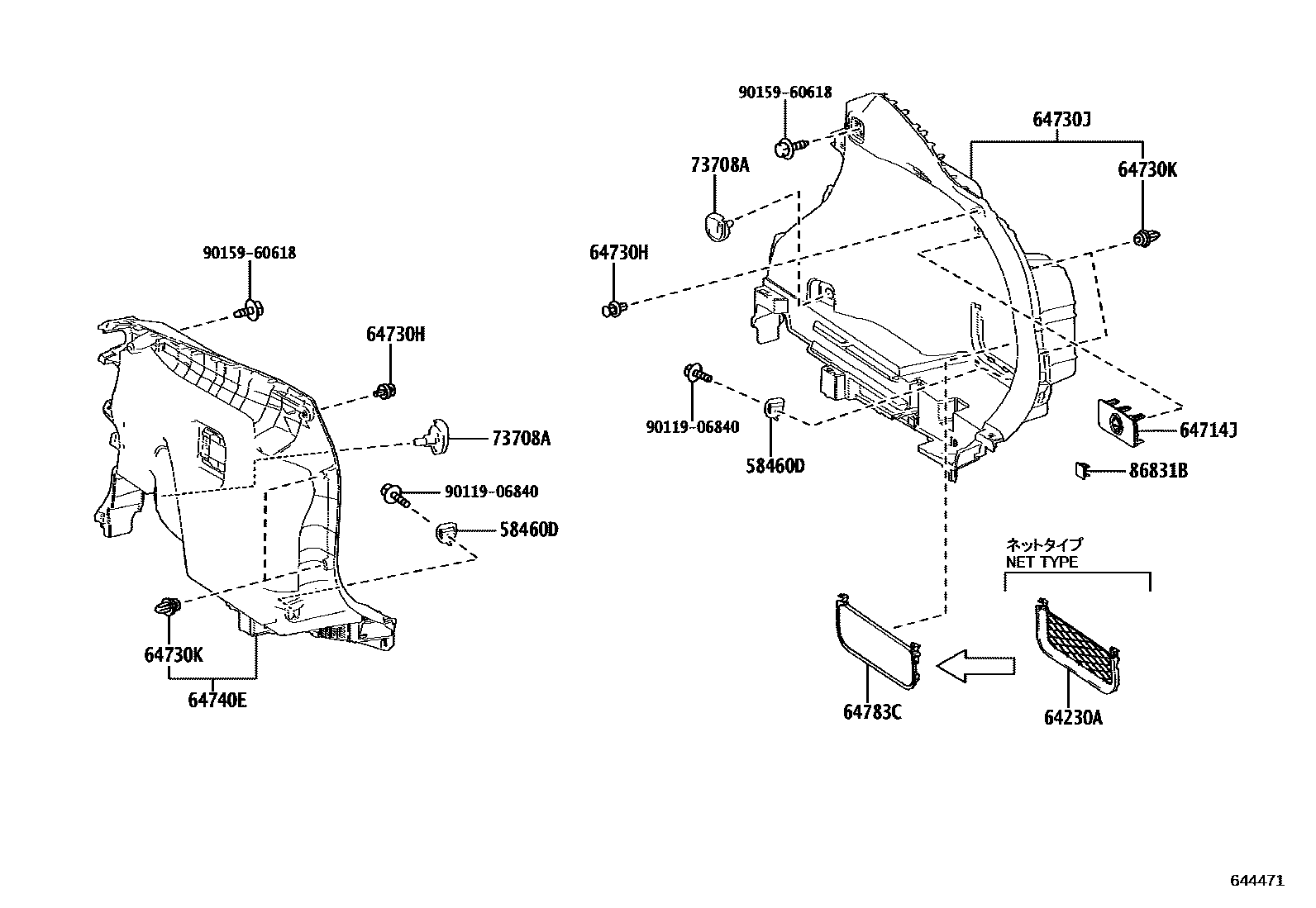

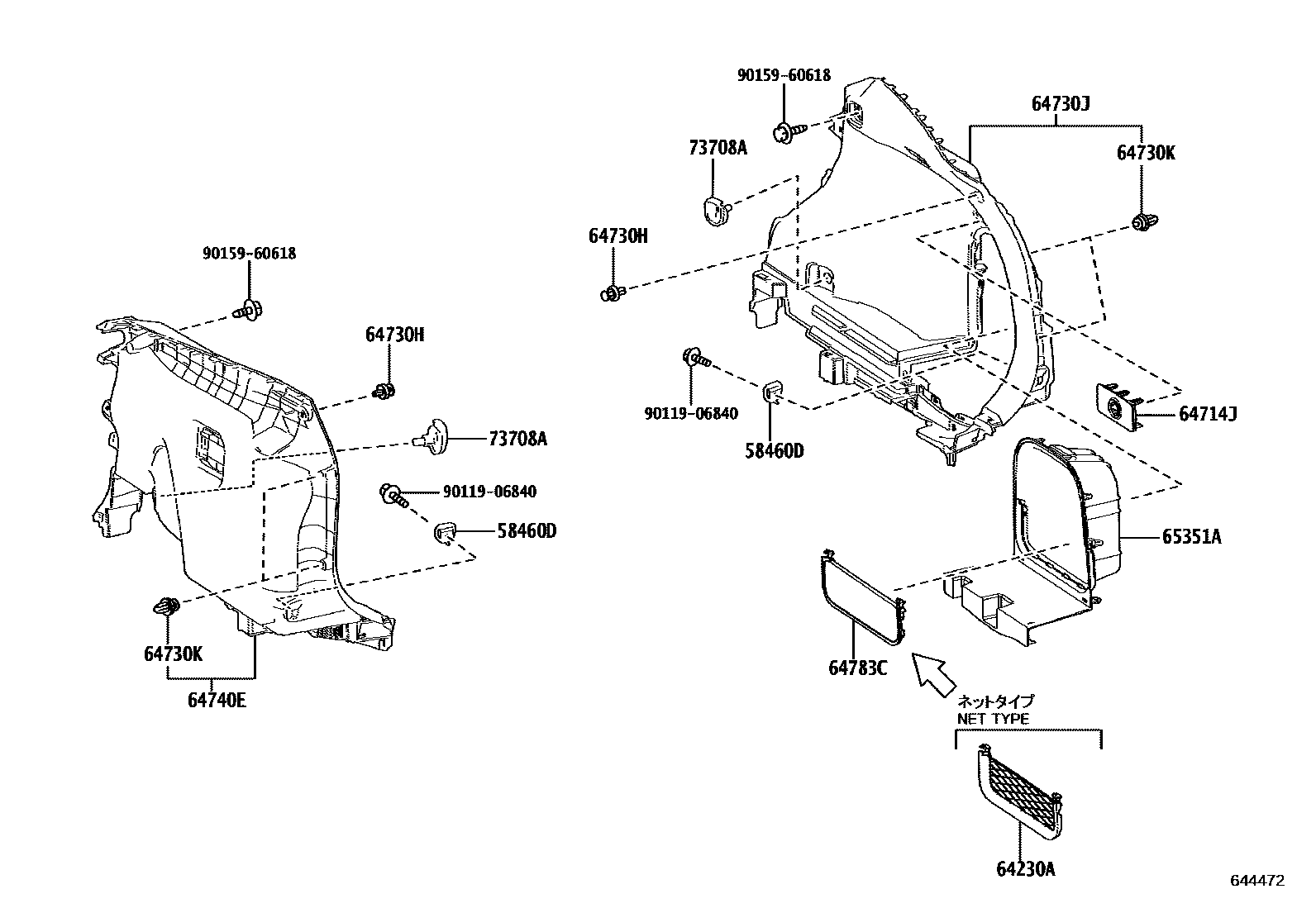

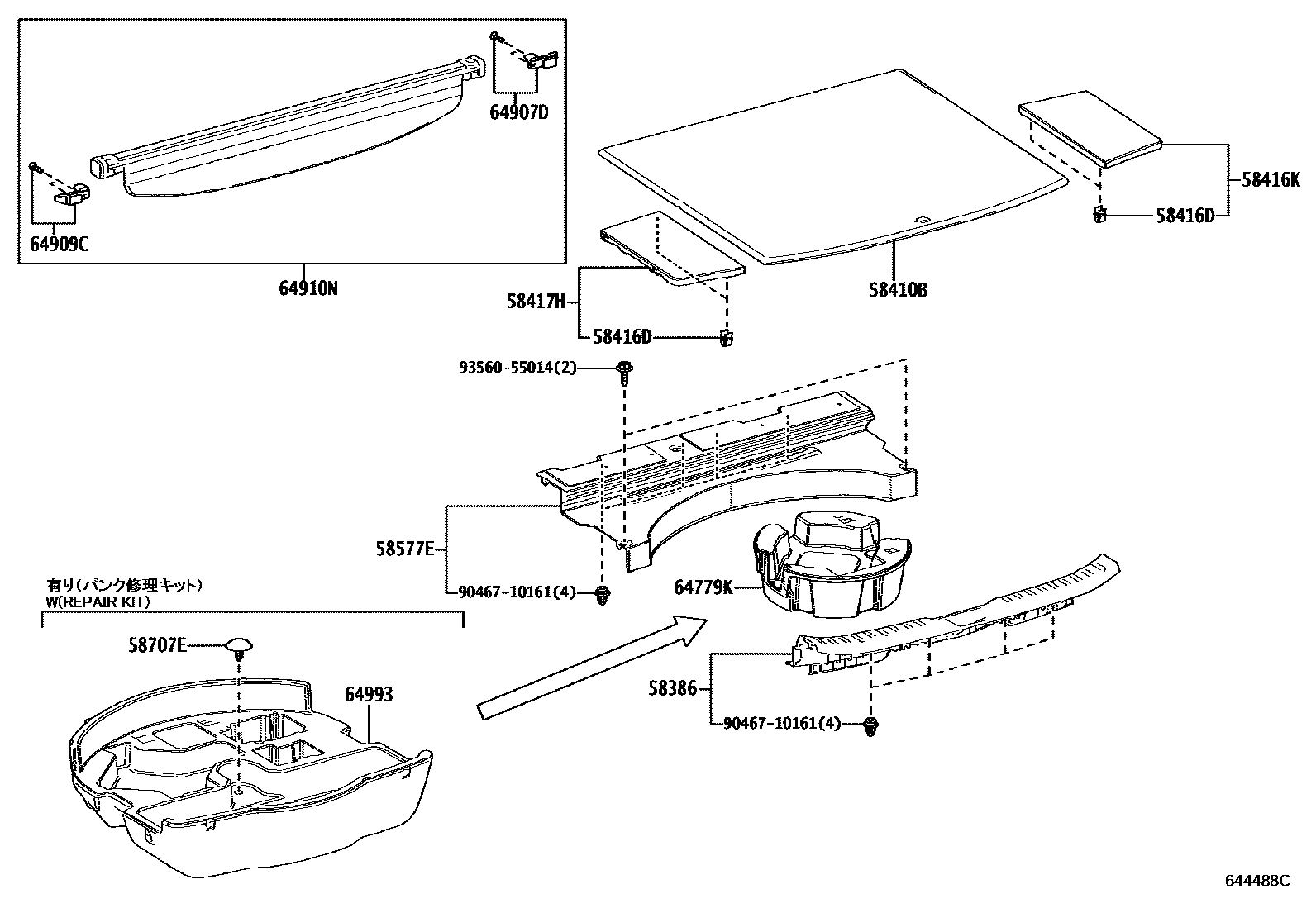

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58416D | Rear floor clip | 90467-10201 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58707E | JEU BOUCHON TROU | 58707-50060 |
| 64730H | Clip (for bottom panel side decorative panel) | 65487-53020 · 90467-09242 |
| 64730K | ATTACHE(POUR PANNEAU DE GARNITURE DE COTE DU PLANCHER) | 90467-10161 |
| 64779K | BUTEE, COUVERCLE ROUE SECOURS | 64779-42020 · 64779-42030 |
| 64907D | SOUS-ENS. BUTEE, COUV. TONNEAU, DROIT | 64907-42030 |
| 64909C | SOUS-ENS. BUTEE, COUV. TONNEAU, GAUCHE | 64909-42030 |
| 64993 | Bottom floor box | 64993-42011 |
