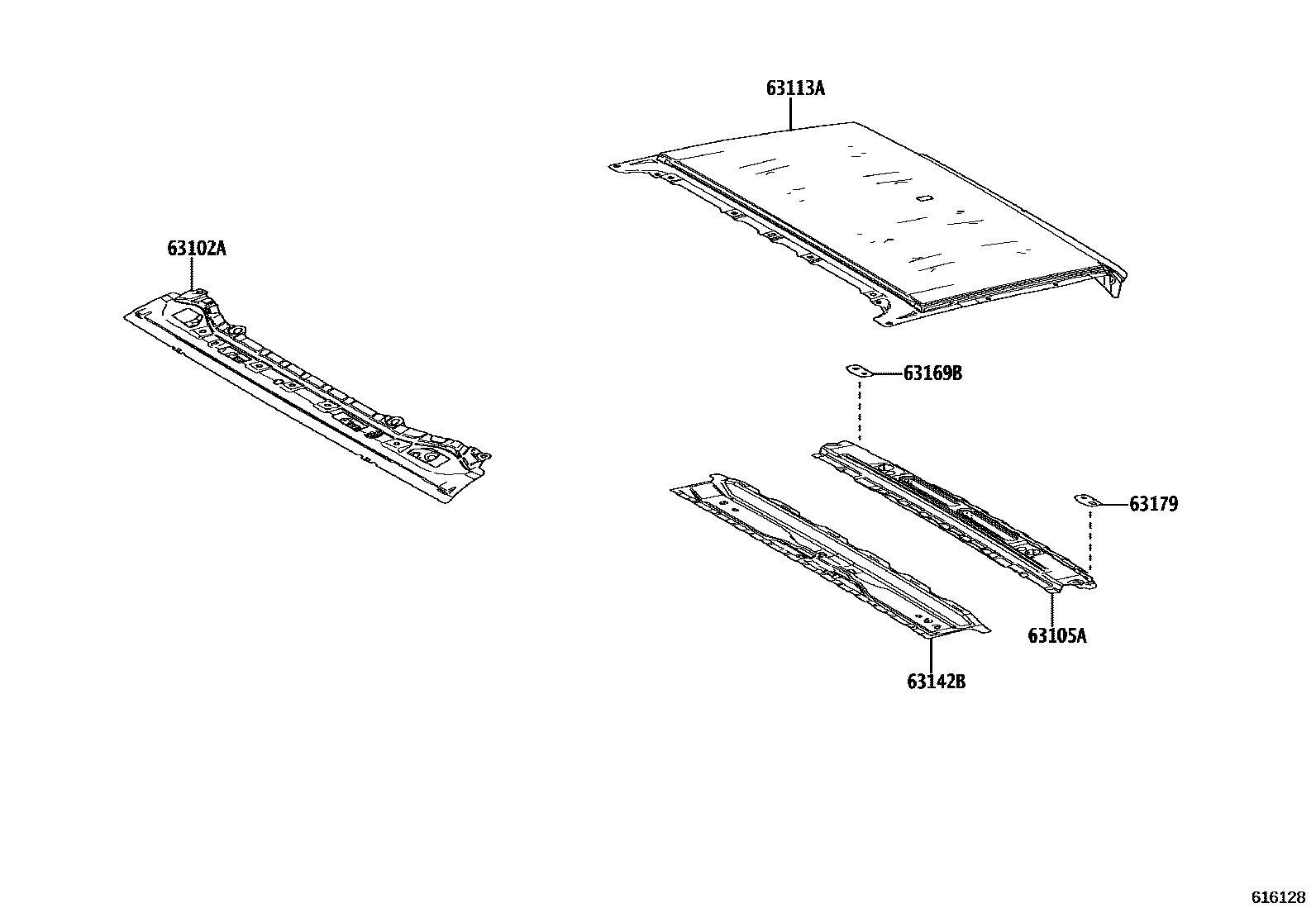

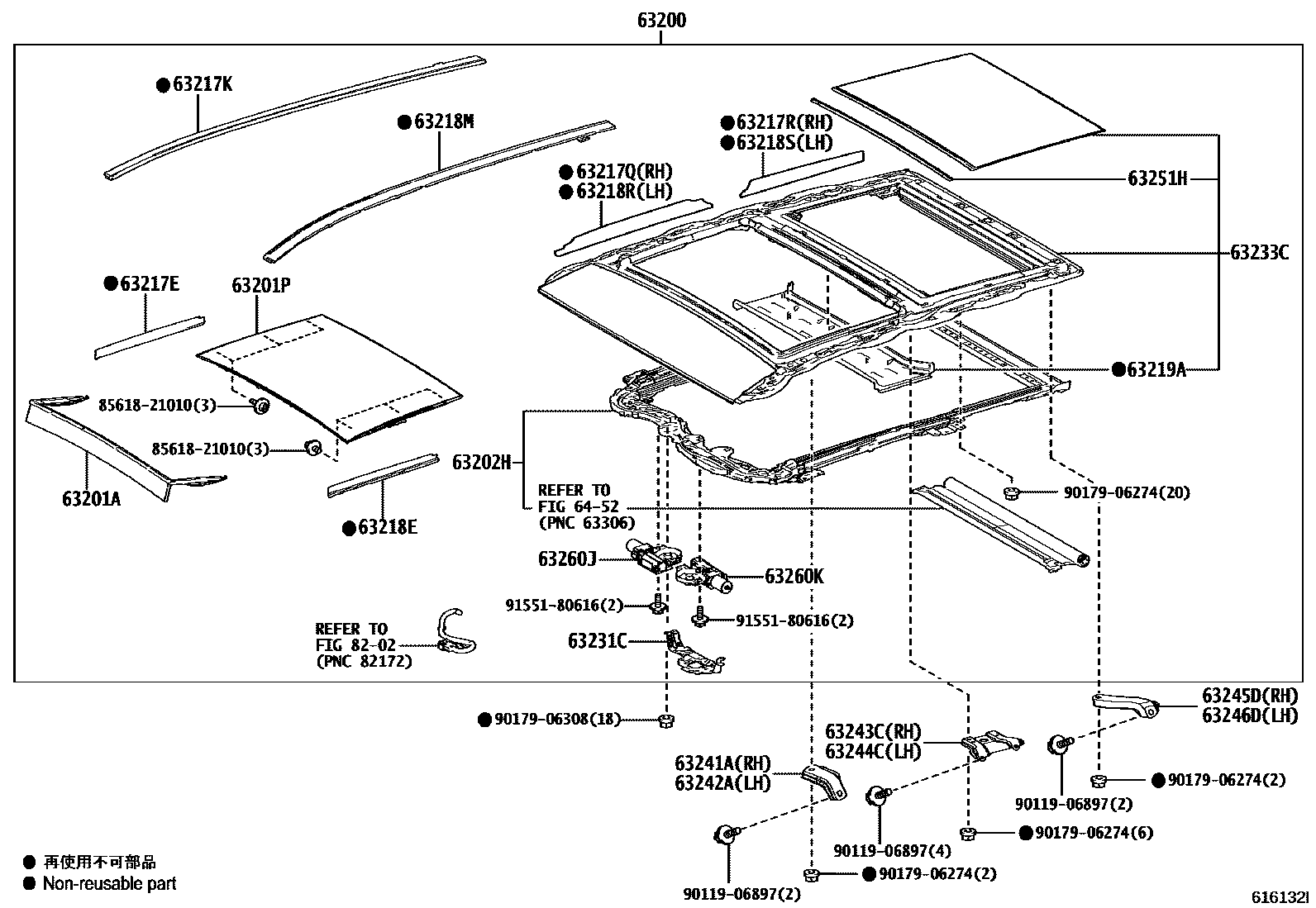

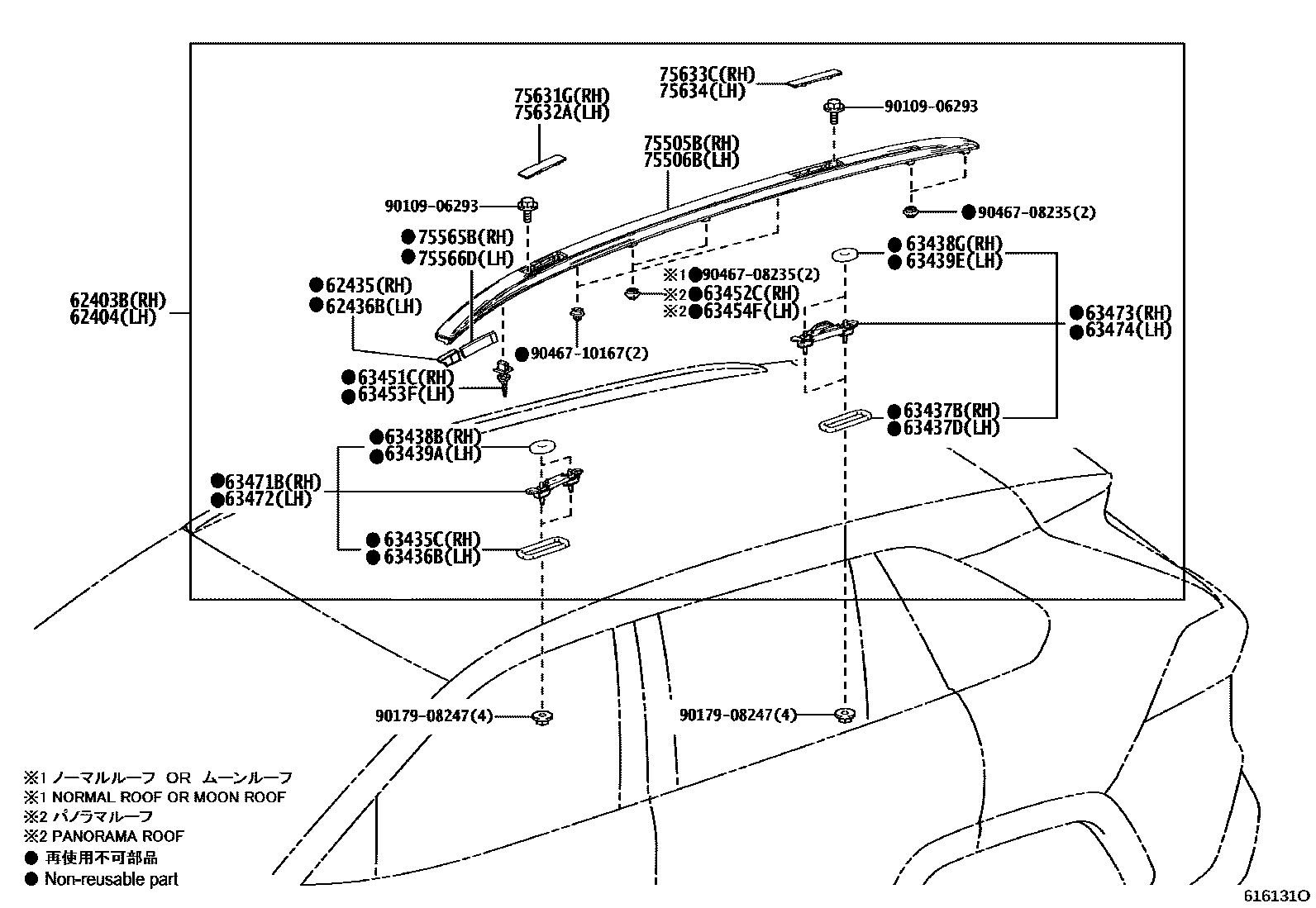

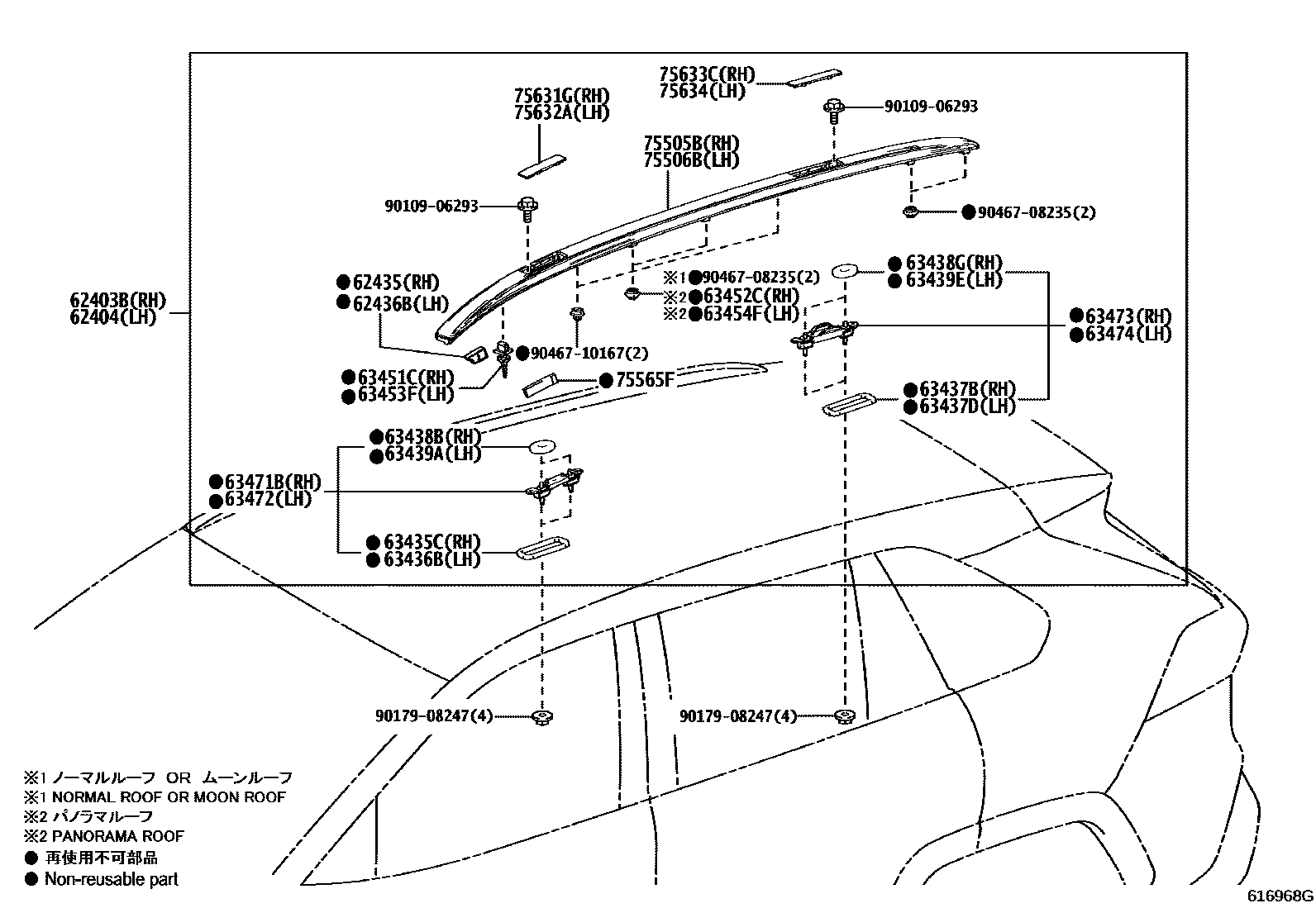

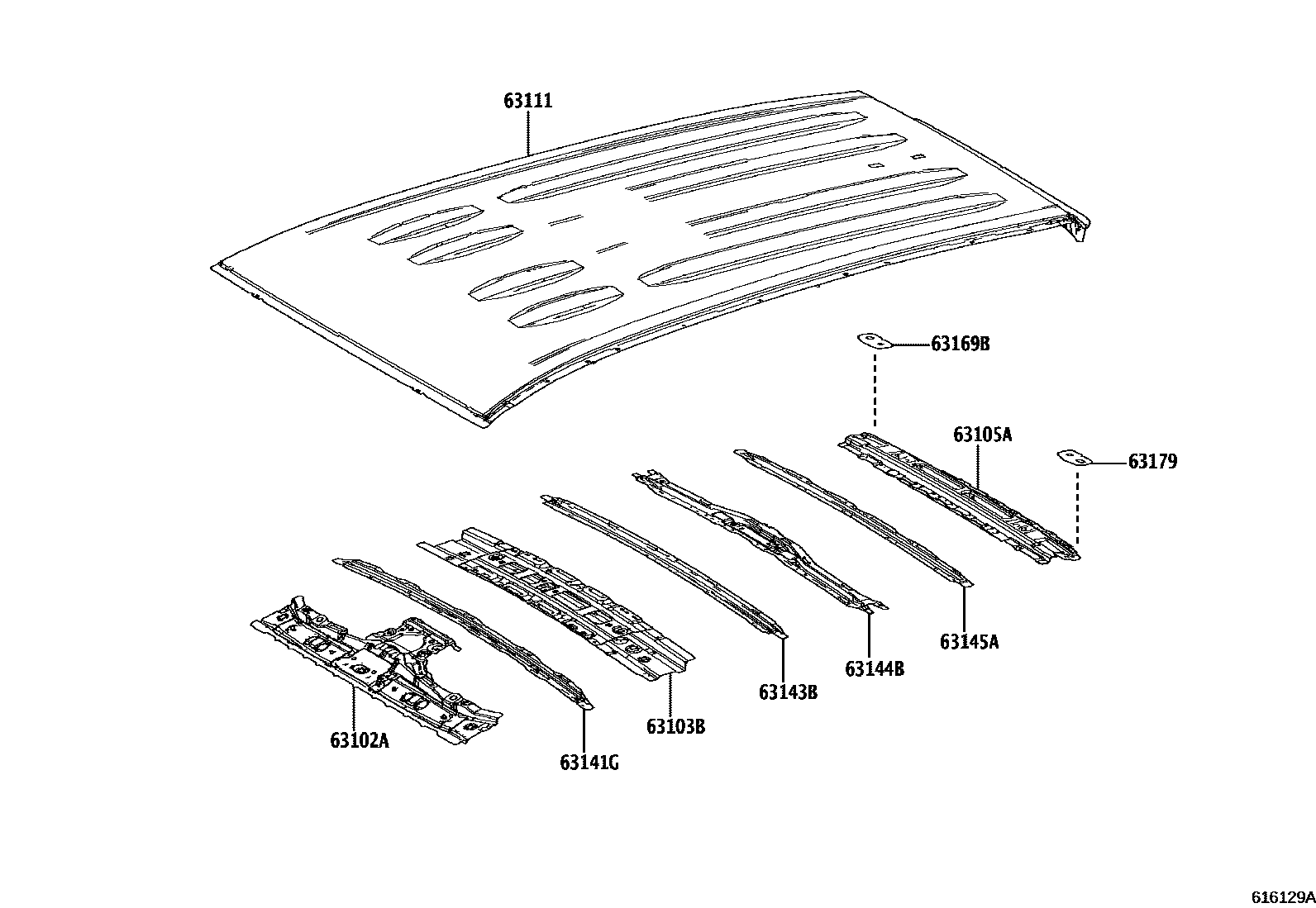

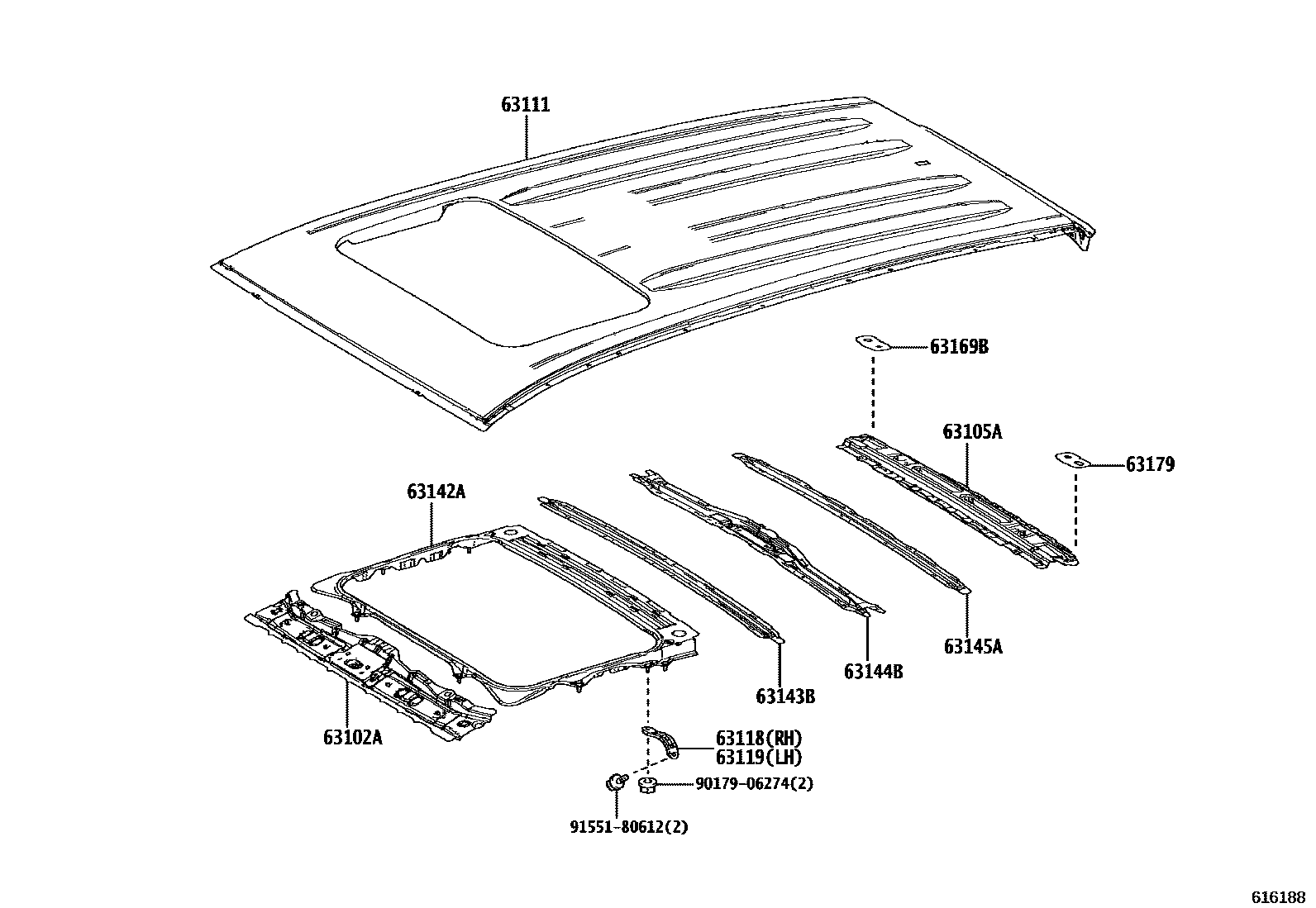

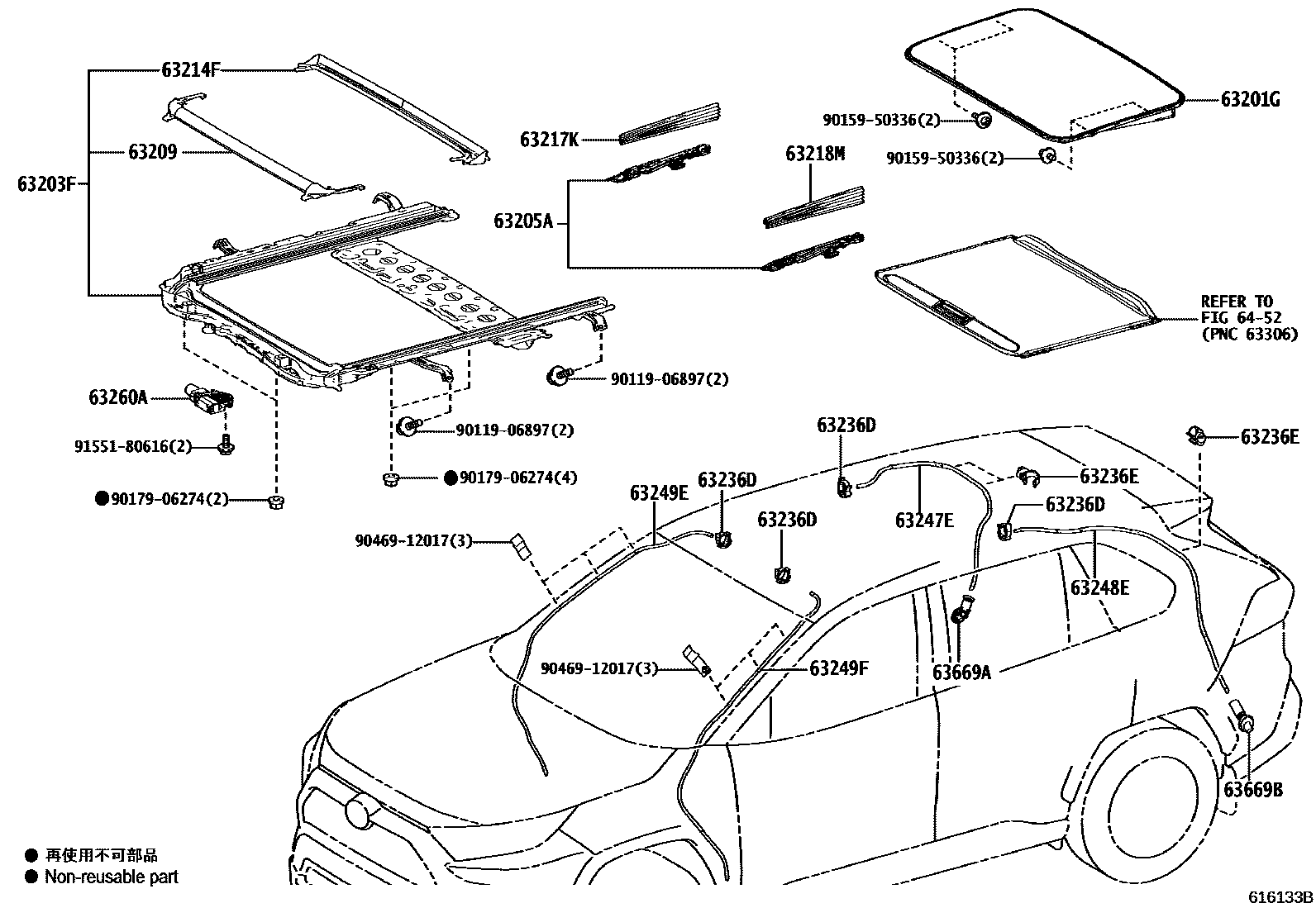

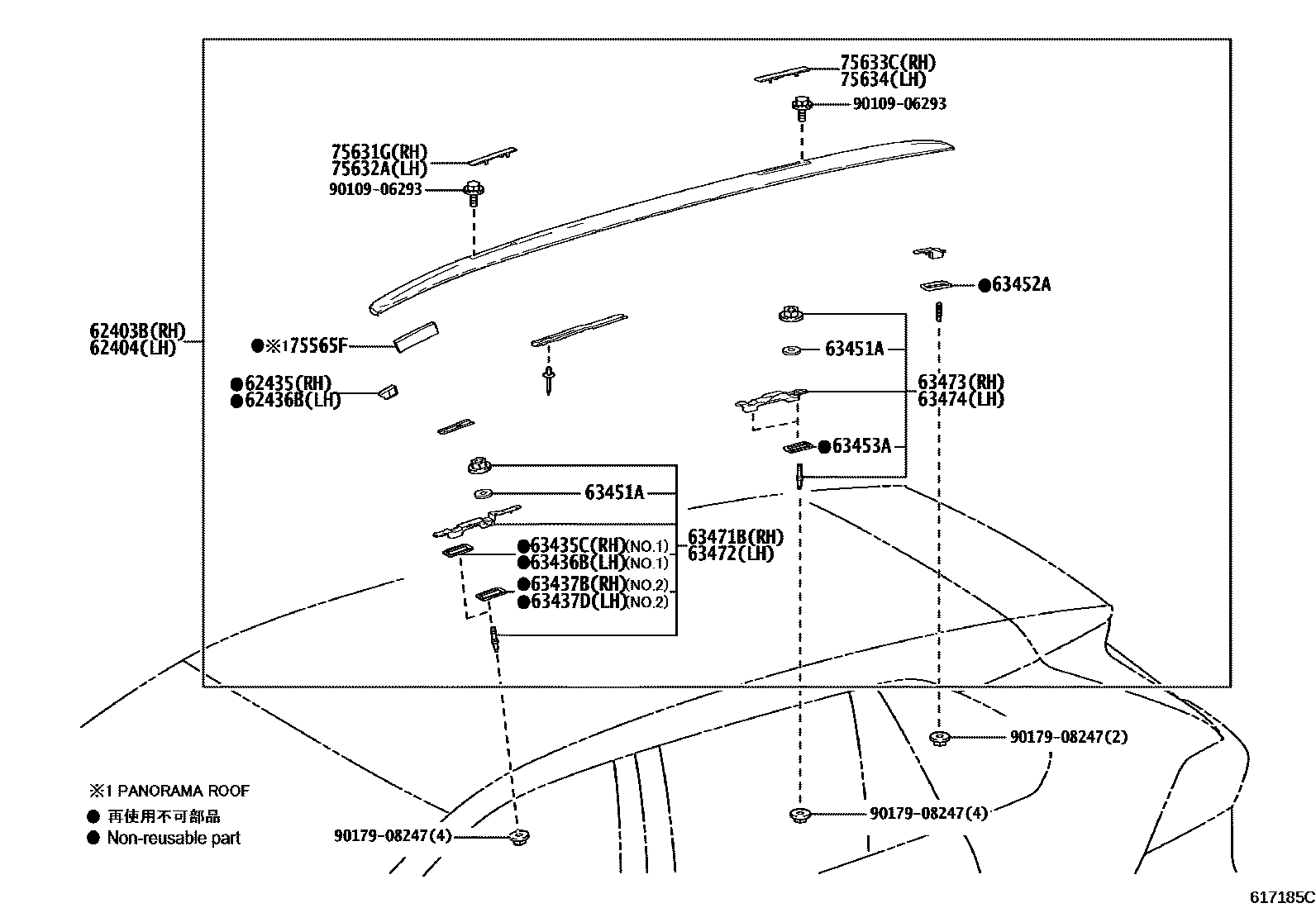

Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 8 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435 | REMB., DOUBLURE BRANCARD PAVILLON, DROIT | 62435-42010 |
| 62436B | REMB., DOUBLURE BRANCARD DE PAVILLON , GAUCHE | 62436-42010 |
| 63102A | Windshield roof sub-assembly | 63102-42130 · 63102-42160 · 63102-42907 · 63102-42908 · 63102-42910 · 63102-42911 · 63102-42912 · 63102-42913 |
| 63103B | Center roof panel reinforcement sub-assembly | 00000-00000 · 63103-42040 |
| 63105A | Back door opening frame sub-assembly | 63105-42050 |
| 63111 | roof panel | 00000-00000 · 63111-42250 · 63111-42260 · 63111-42261 · 63111-42280 · 63111-42281 |
| 63113A | No. 3 roof panel | 63113-42020 · 63113-42021 |
| 63118 | Right roof panel bracket | 63118-42080 |
| 63119 | Left roof panel bracket | 63118-42080 |
| 63141G | No. 1 roof panel reinforcement | 00000-00000 · 63143-42070 |
| 63142A | No. 2 roof panel reinforcement | 63142-42060 |
| 63142B | Rear roof panel reinforcement | 63142-42070 |
| 63143B | No. 3 roof panel reinforcement | 00000-00000 · 63144-42050 |
| 63144B | No. 4 roof panel reinforcement | 00000-00000 · 63108-42010 |
| 63145A | No. 5 roof panel reinforcement | 00000-00000 · 63149-42080 |
| 63169B | Right roof panel reinforcement panel | 63169-47010 |
| 63179 | Left roof panel reinforcement panel | 63179-47010 |
| 63200 | Skylight frame assembly | 63200-42151 · 63200-42152 · 63200-42153 · 63200-42154 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-42150 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-42130 · 63201-42190 |
| 63201P | Sliding sunroof glass sub-assembly | 63201-42160 · 63201-42161 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-42110 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-12170 |
| 63209 | Roof deflector sub-assembly | 63209-42080 |
| 63214F | Roof rear drain channel | 63214-47010 |
| 63217E | Right front sliding sunroof trim | 63217-42010 |
| 63217K | Right sliding sunroof trim | 63217-42040 · 63217-47020 |
| 63217Q | GARNITURE, LAT TOIT COULISSANT, MD | 63217-42020 |
| 63217R | GARNITURE, LAT TOIT COULISSANT, MD | 63217-42030 |
| 63218E | Left front sliding sunroof trim | 63218-42020 |
| 63218M | Sliding sunroof trim, left | 63217-47020 · 63218-42050 |
| 63218R | GARNITURE, LAT TOIT COULISSANT, MG | 63218-42030 |
| 63218S | GARNITURE, LAT TOIT COULISSANT, MG | 63218-42040 |
| 63219A | Rear sliding sunroof trim | 63219-42010 |
| 63231C | Interior light bracket | 63231-42050 |
| 63233C | Sliding skylight shelf | 63233-42050 · 63233-42051 · 63233-42052 |
| 63236D | Sliding skylight drain hose clamp | 63236-33030 |
| 63236E | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 63236-42010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-42100 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-42100 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-42050 · 63243-42051 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-42030 · 63244-42031 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-42070 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-42040 |
| 63247E | Right rear sliding sunroof drain hose | 63247-42040 |
| 63248E | Left rear sliding sunroof drain hose | 63248-42020 |
| 63249E | Sliding skylight drain hose | 63249-42160 |
| 63249F | Sliding skylight drain hose | 63249-42170 |
| 63251H | Sliding skylight seal | 63251-42050 · 63251-42051 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-42120 · 63260-42170 |
| 63260J | Sliding sunroof driving gear assembly | 63260-42130 |
| 63260K | Sliding sunroof driving gear assembly | 63260-42140 |
| 63435C | Roof right storage rack No. 1 seal | 63437-42110 · 63437-48030 · 63437-48040 |
| 63436B | Roof left storage rack No. 1 seal | 63437-42110 · 63437-48030 · 63437-48040 |
| 63437B | JOINT, SUPPORT DE TOIT, NO.2 MD | 63437-48030 · 63437-48040 |
| 63437D | JOINT, SUPPORT DE TOIT, NO.2 MG | 63437-48030 · 63437-48040 |
| 63438B | Roof right storage rack No. 3 seal | 63438-20010 |
| 63438G | JOINT, SUPPORT DE TOIT, NO.4 MD | 63438-20010 |
| 63439A | Roof left storage rack No. 3 seal | 63438-20010 |
| 63439E | JOINT, SUPPORT DE TOIT, NO.4 MG | 63438-20010 |
| 63451A | Roof rack No. 1 bracket seal | 63438-20010 |
| 63451C | Right front roof rack fixing | 63451-42010 · 63451-42020 |
| 63452A | Roof rack No. 2 bracket seal | 63437-48030 |
| 63452C | Right rear roof rack fixing | 63451-42030 · 63451-42060 |
| 63453A | Roof rack No. 3 bracket seal | 63437-48030 · 63437-48040 |
| 63453F | Left front roof rack fixing | 63451-42010 · 63451-42020 |
| 63454F | Left rear roof rack fixing | 63451-42030 · 63451-42060 |
| 63471B | Right front roof rack support | 63471-42050 · 63471-42070 |
| 63472 | Left front roof rack support | 63472-42050 · 63472-42060 |
| 63473 | Right rear roof rack support | 63473-42050 · 63473-42060 |
| 63474 | Left rear roof rack support leg | 63474-42050 · 63474-42060 |
| 63669A | Sliding skylight drain seal | 63669-30040 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
| 75565B | Right front roof side trim protector | 75565-42010 |
| 75565F | No. 1 roof side panel protector | 75565-42010 |
| 75566D | Left front roof side trim protector | 75565-42010 |
