Toyota RAV4 侧梁 — Figure 6151

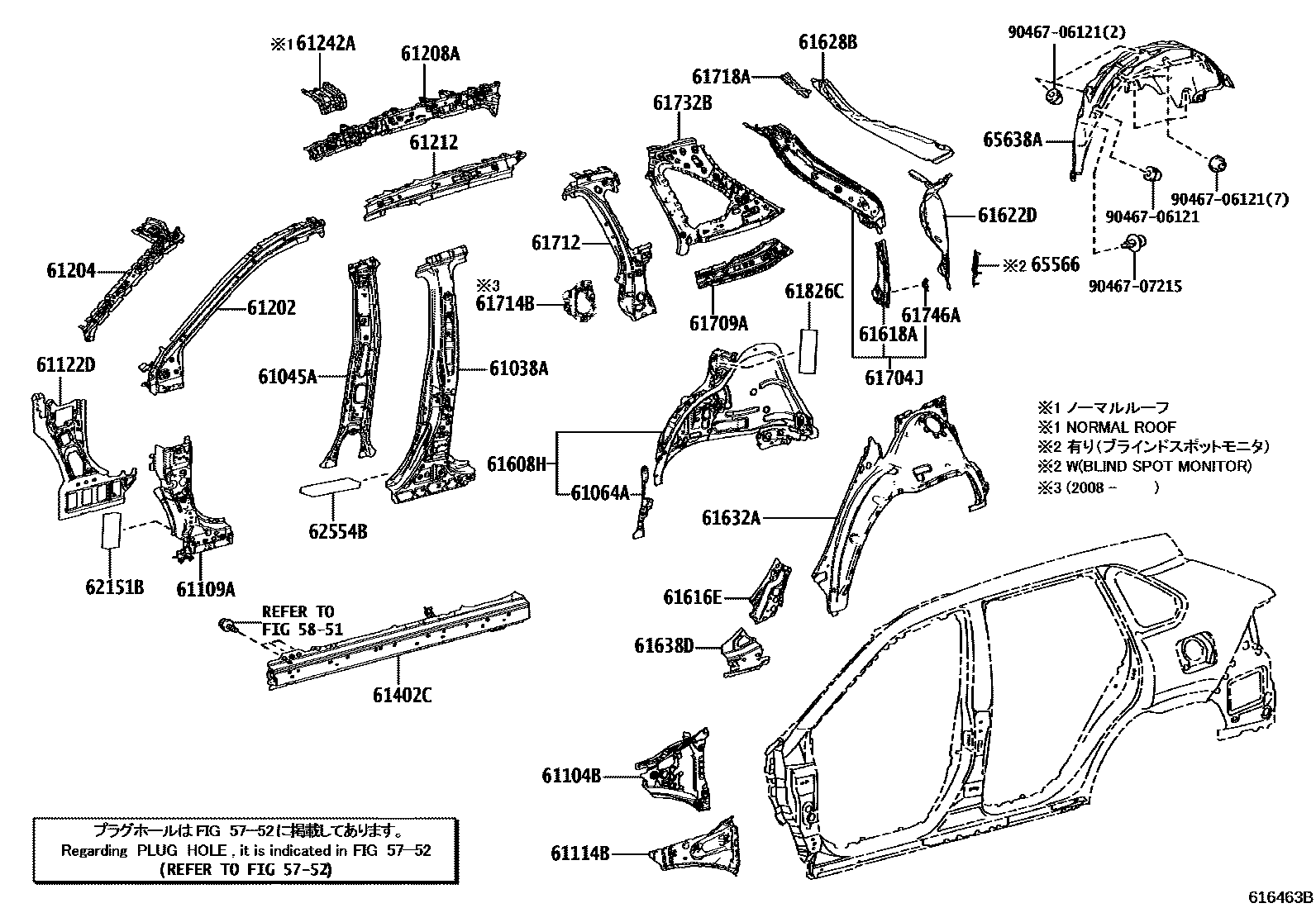

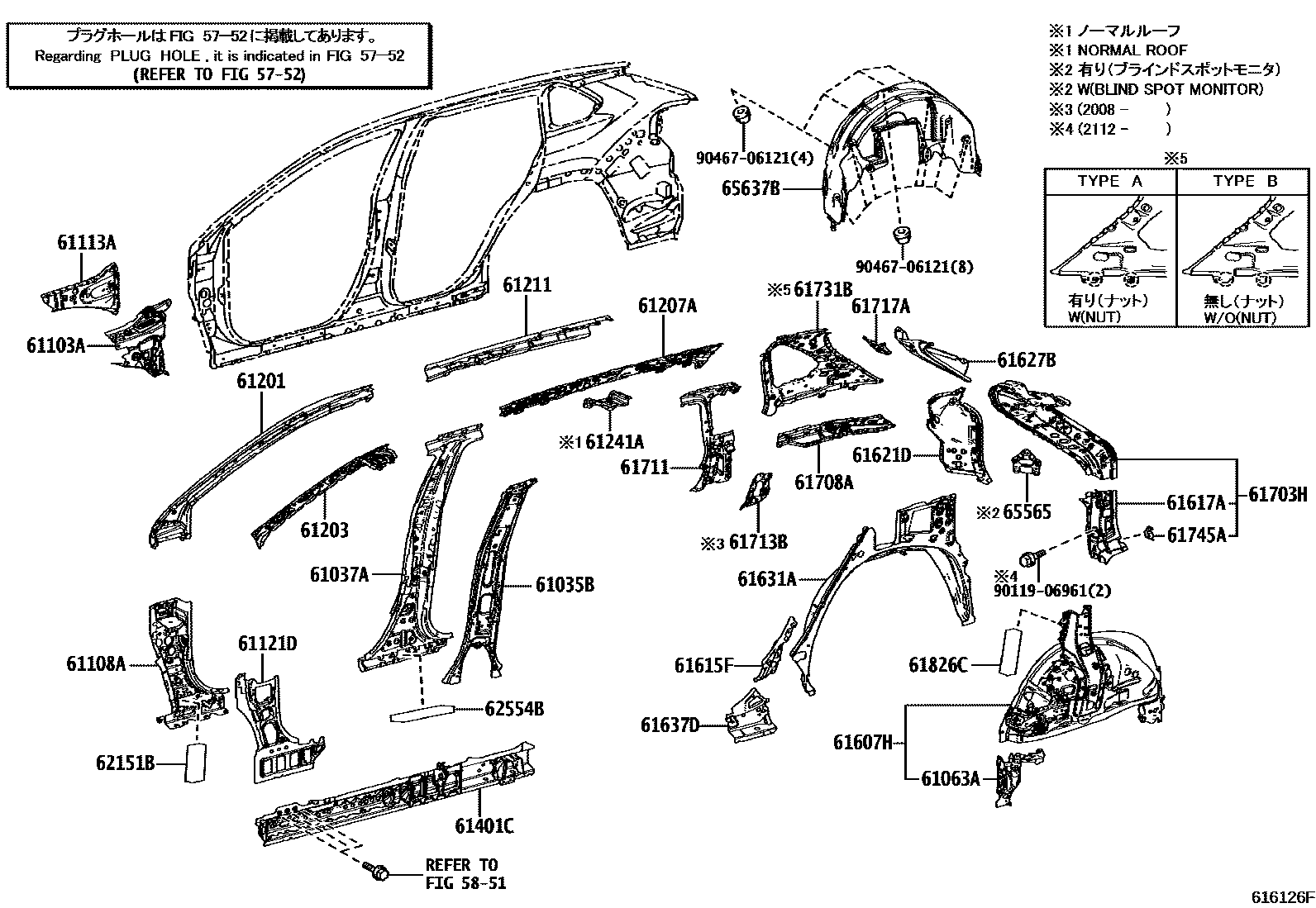

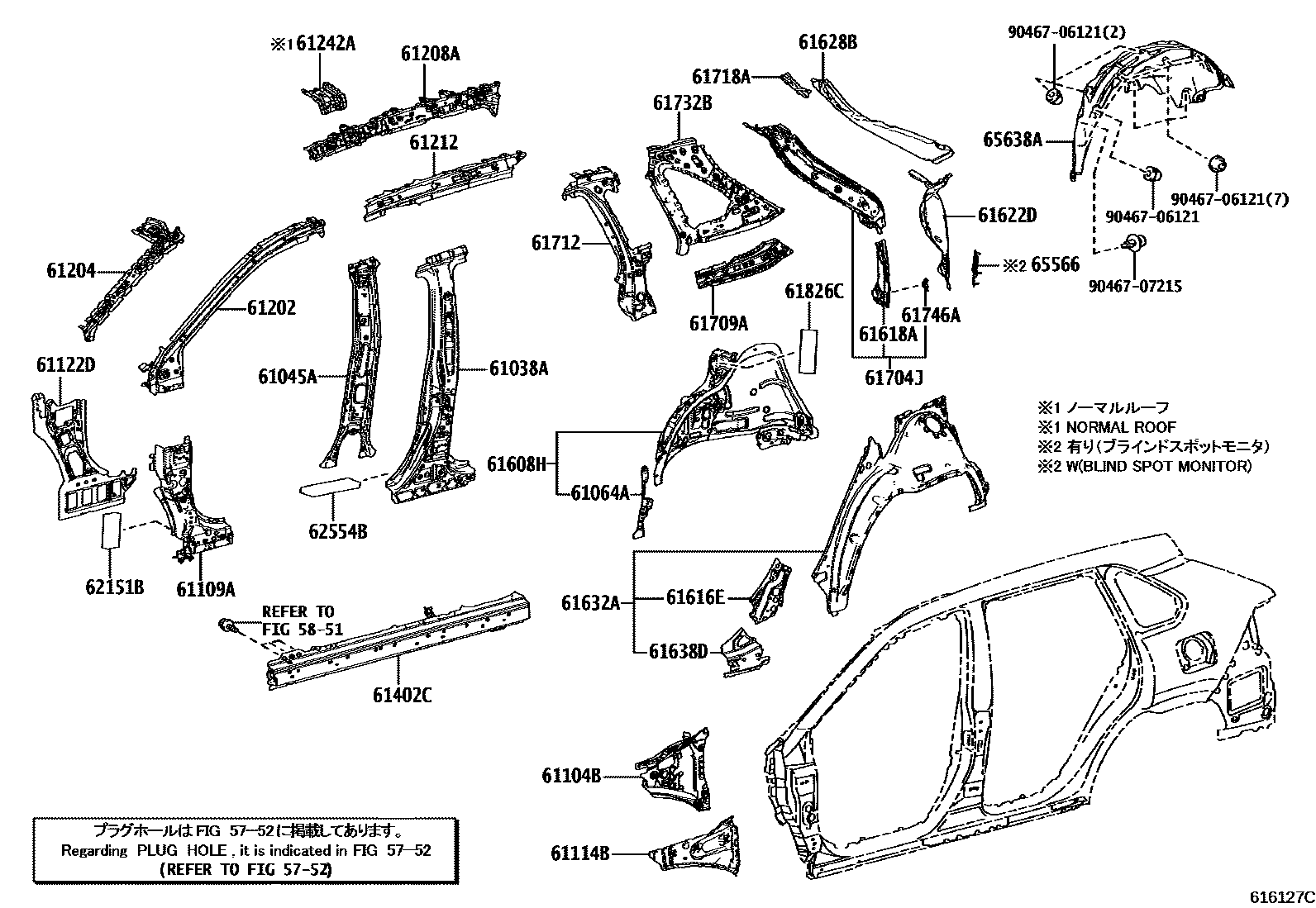

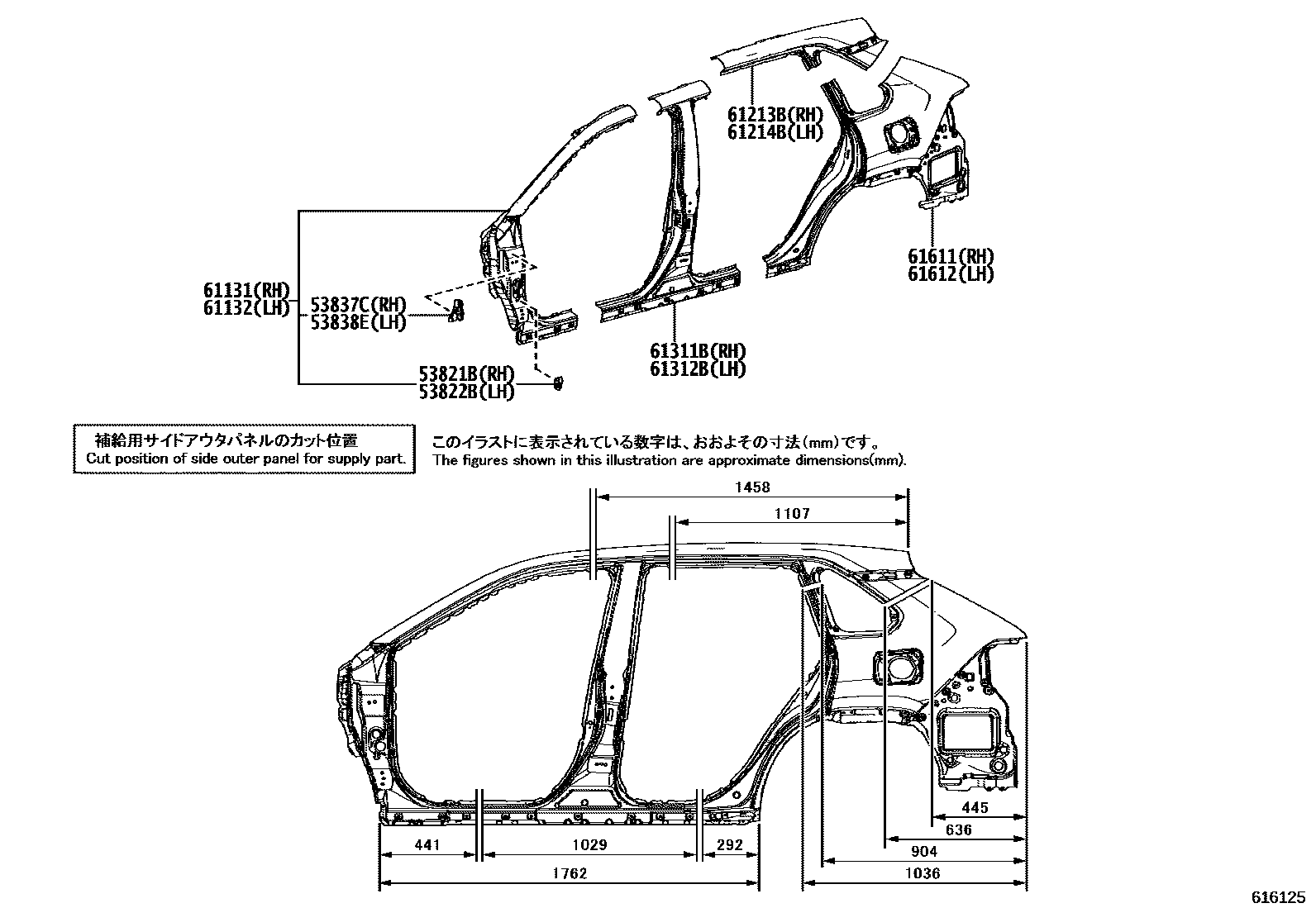

Toyota RAV4 EPC diagram 6151, 侧梁, with 4 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-42030 |
| 53822B | Left front fender rear support | 53821-42030 |
| 53837C | No. 2 right front side panel bracket | 53837-42020 |
| 53838E | No. 2 left front side panel bracket | 53838-42020 |
| 61035B | No. 4 right inner column sub-assembly | 61035-42050 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-42902 · 61037-42905 · 61037-42906 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-42902 · 61038-42905 · 61038-42906 |
| 61045A | No. 4 left inner column sub-assembly | 61045-42050 |
| 61063A | Right rear No. 2 fender external panel sub-assembly | 61063-42020 |
| 61064A | Left rear No. 2 fender external panel sub-assembly | 61064-42020 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-42040 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-42040 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42080 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42090 |
| 61113A | No. 2 right outer panel | 61113-42020 |
| 61114B | No. 2 left outer panel | 61114-42020 |
| 61121D | Right front panel | 61121-42060 |
| 61122D | Left front panel | 61122-42070 |
| 61131 | Right body outer front upper pillar | 61010-42020 · 61010-42021 |
| 61132 | Left body outer front upper pillar | 61020-42020 · 61020-42021 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-42900 · 61201-42901 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-42900 · 61202-42901 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-42030 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-42020 |
| 61207A | No. 3 longitudinal beam sub-assembly on the inner right side of the roof | 61207-42010 |
| 61208A | No. 3 longitudinal beam sub-assembly on the left inner side of the roof | 61208-42010 |
| 61211 | Roof right outer longitudinal beam | 61077-42010 |
| 61212 | Roof left outer longitudinal beam | 61087-42010 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61210-42010 · 61210-42011 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61220-42010 · 61220-42011 |
| 61241A | Right rear roof rail corner panel | 61241-42020 |
| 61242A | Left rear roof rail corner panel | 61242-42010 |
| 61311B | Right body outer center pillar | 61311-42050 · 61311-42051 |
| 61312B | Left body outer center pillar | 61312-42050 · 61312-42051 |
| 61401C | Right door outer sill panel sub-assembly | 61401-42010 · 61401-42020 |
| 61402C | Left door outer sill sub-assembly | 61402-42020 · 61402-42030 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-42110 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-42110 |
| 61611 | Right side hoarding | 61601-42130 · 61601-42160 |
| 61612 | left side panel | 61602-42130 · 61602-42140 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-42030 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-42010 |
| 61617A | Right rear side panel inner panel | 61617-42050 · 61617-42051 · 61617-42100 |
| 61618A | Left rear side panel inner panel | 61618-42050 |
| 61621D | Back door right opening slot | 61621-42060 |
| 61622D | Rear door left opening slot | 61622-42060 |
| 61627B | Right rear side panel extension | 61627-42060 |
| 61628B | Extension on left rear side panel | 61628-42080 |
| 61631A | Right wheel cover outer panel | 61631-42110 |
| 61632A | Left side wheel cover outer panel | 61632-42900 · 61632-42901 |
| 61637D | Right side enclosure inner panel reinforcement | 61637-42040 |
| 61638D | Left side enclosure inner panel reinforcement | 61638-42030 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-42100 · 61703-42900 · 61703-42901 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-42900 |
| 61708A | Right seat belt anchor reinforcement sub-assembly | 61708-42090 |
| 61709A | Left seat belt anchor reinforcement sub-assembly | 61709-42030 |
| 61711 | Roof right side outer panel | 61711-42040 · 61711-42050 |
| 61712 | Roof left outer panel | 61712-42040 · 61712-42050 |
| 61713B | Roof right outer reinforcement | 61713-42050 |
| 61714B | Roof left outer reinforcement | 61714-42050 |
| 61717A | Right side panel extension reinforcement | 61717-42030 |
| 61718A | Left side bulkhead extension reinforcement | 61718-42030 |
| 61731B | Roof right inner panel | 61731-42140 · 61731-42141 · 61731-42150 · 61731-42151 |
| 61732B | Roof left inner panel | 61732-42150 · 61732-42151 |
| 61745A | Back door opening lower right reinforcement | 61745-42040 |
| 61746A | Rear door opening lower left reinforcement | 61745-42040 |
| 61826C | No. 3 silencer panel gasket | 61826-42020 |
| 62151B | Front cowl side silencer pads | 62151-42030 |
| 62554B | No. 4 column pad | 62554-42100 |
| 65565 | Right side panel rear end lining | 65565-33050 |
| 65566 | Left side panel rear end lining | 65565-33050 |
| 65637B | Right rear wheel house lining | 65637-42030 |
| 65638A | Left rear wheel house lining | 65638-42020 |
