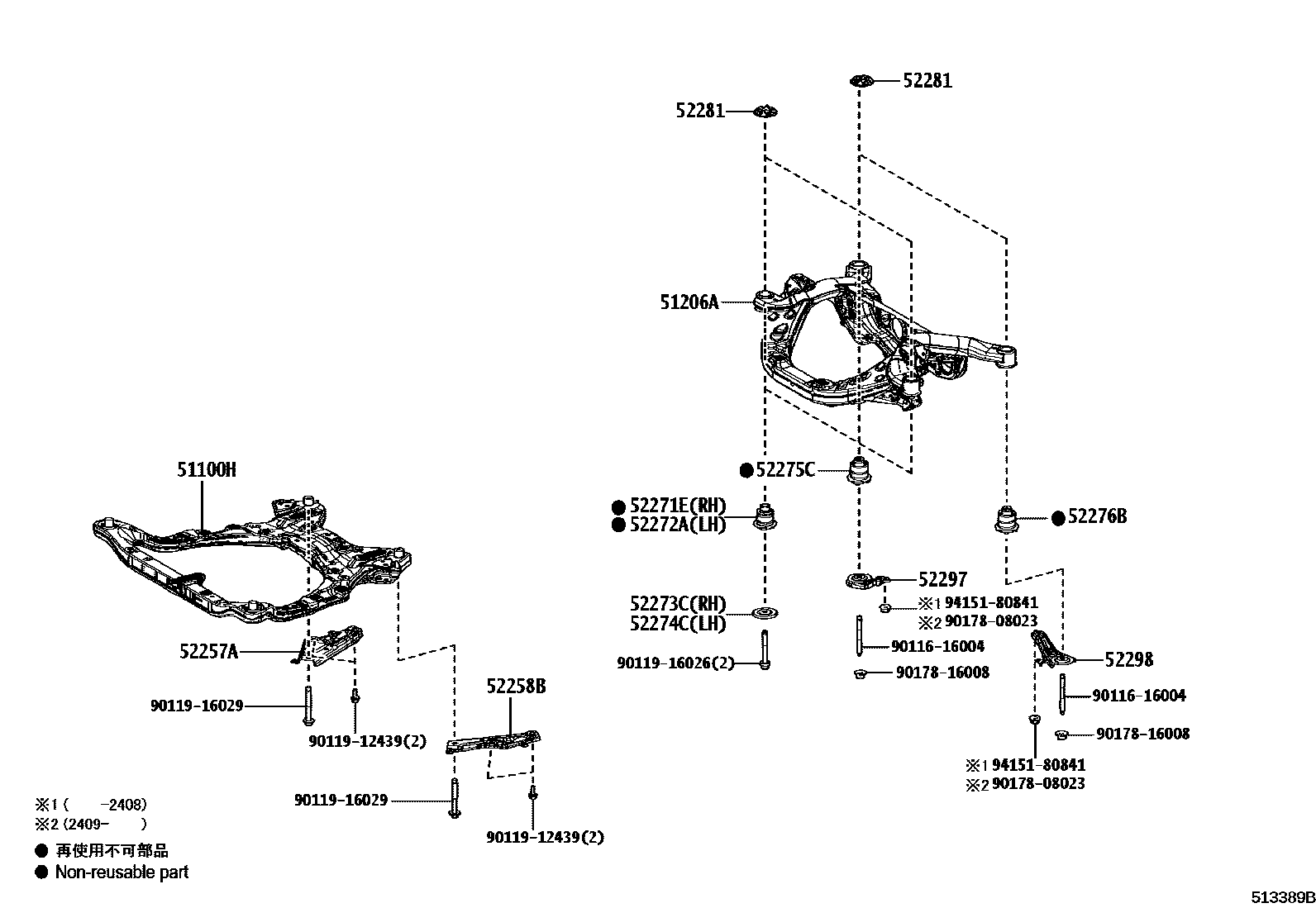

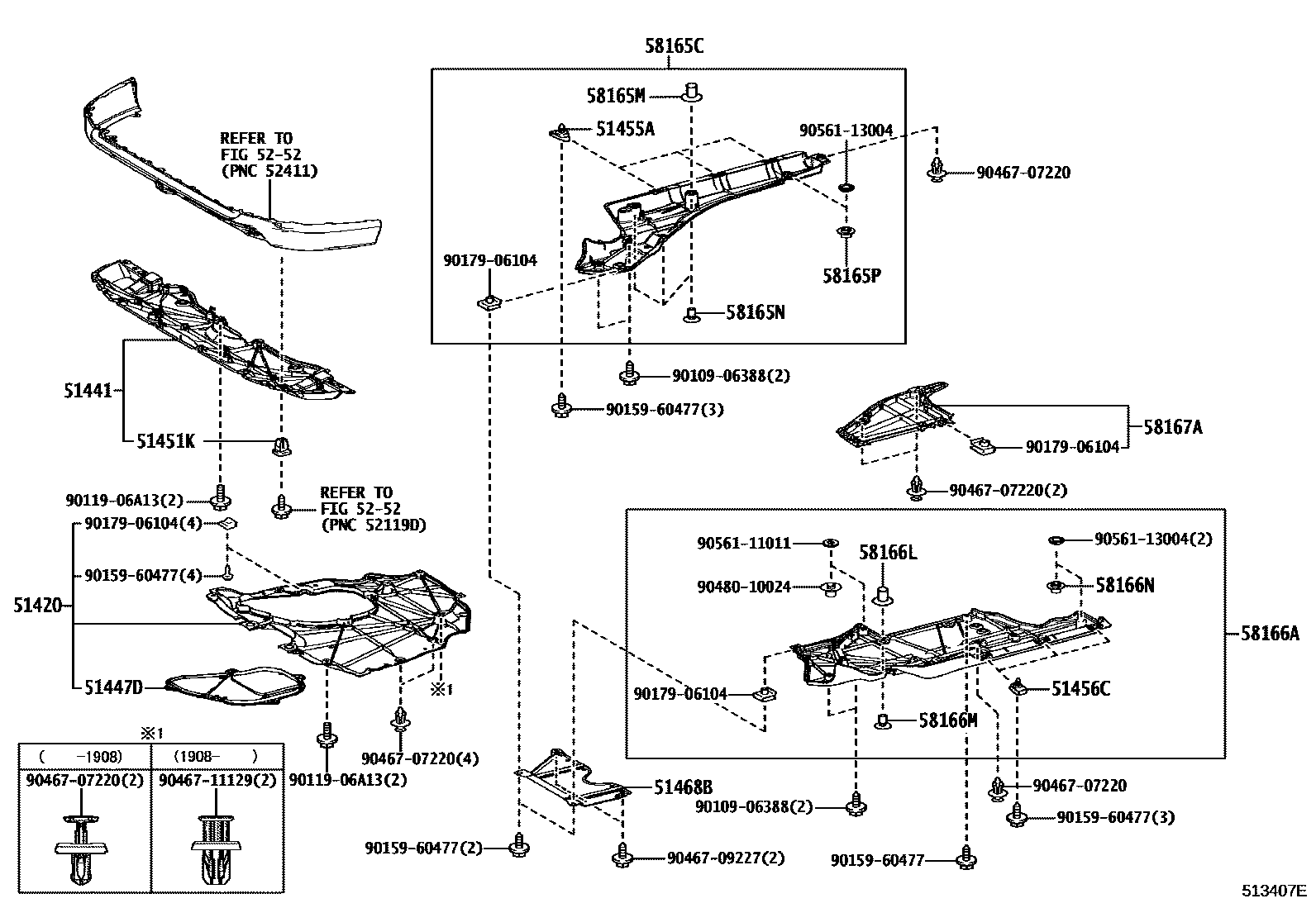

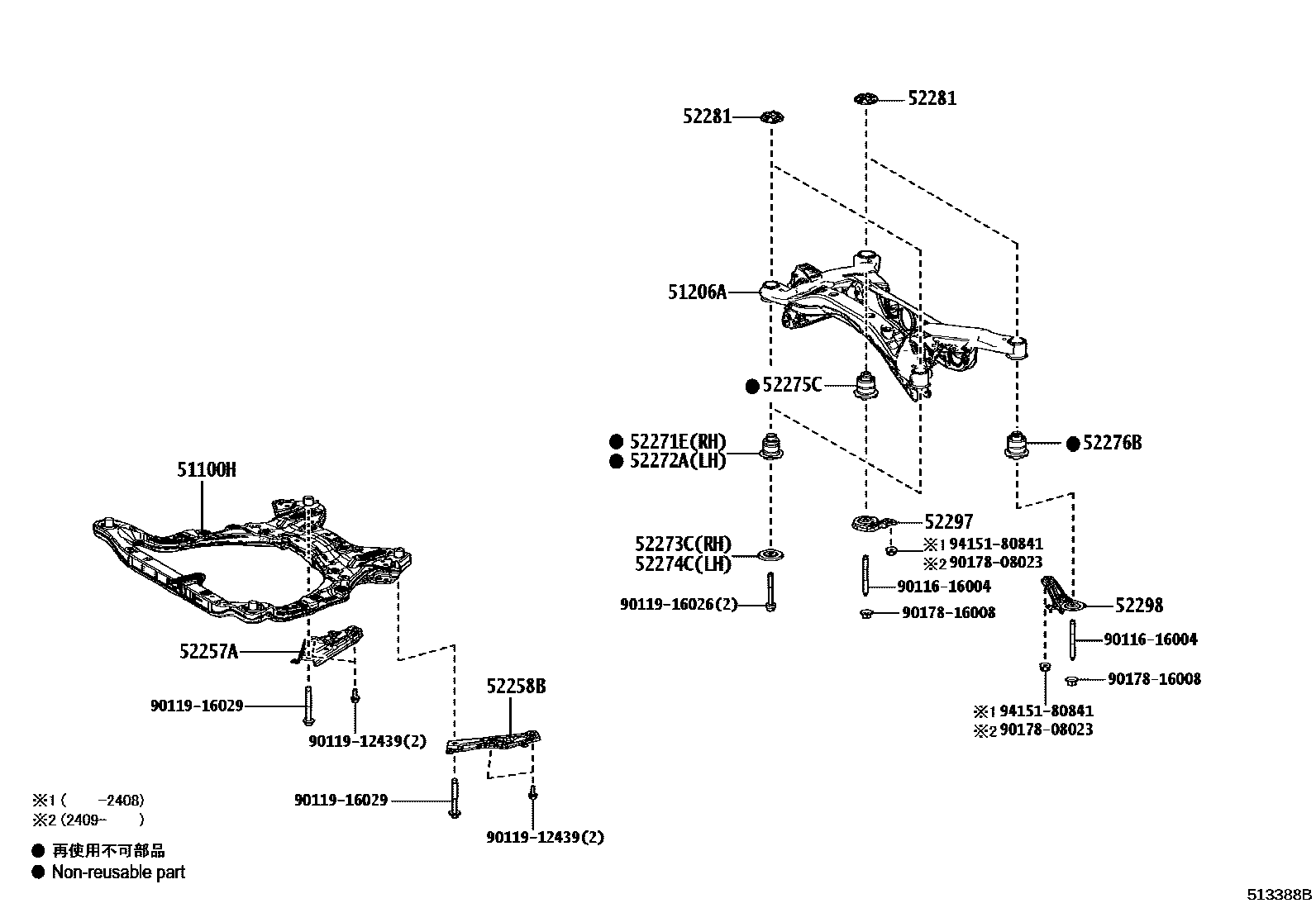

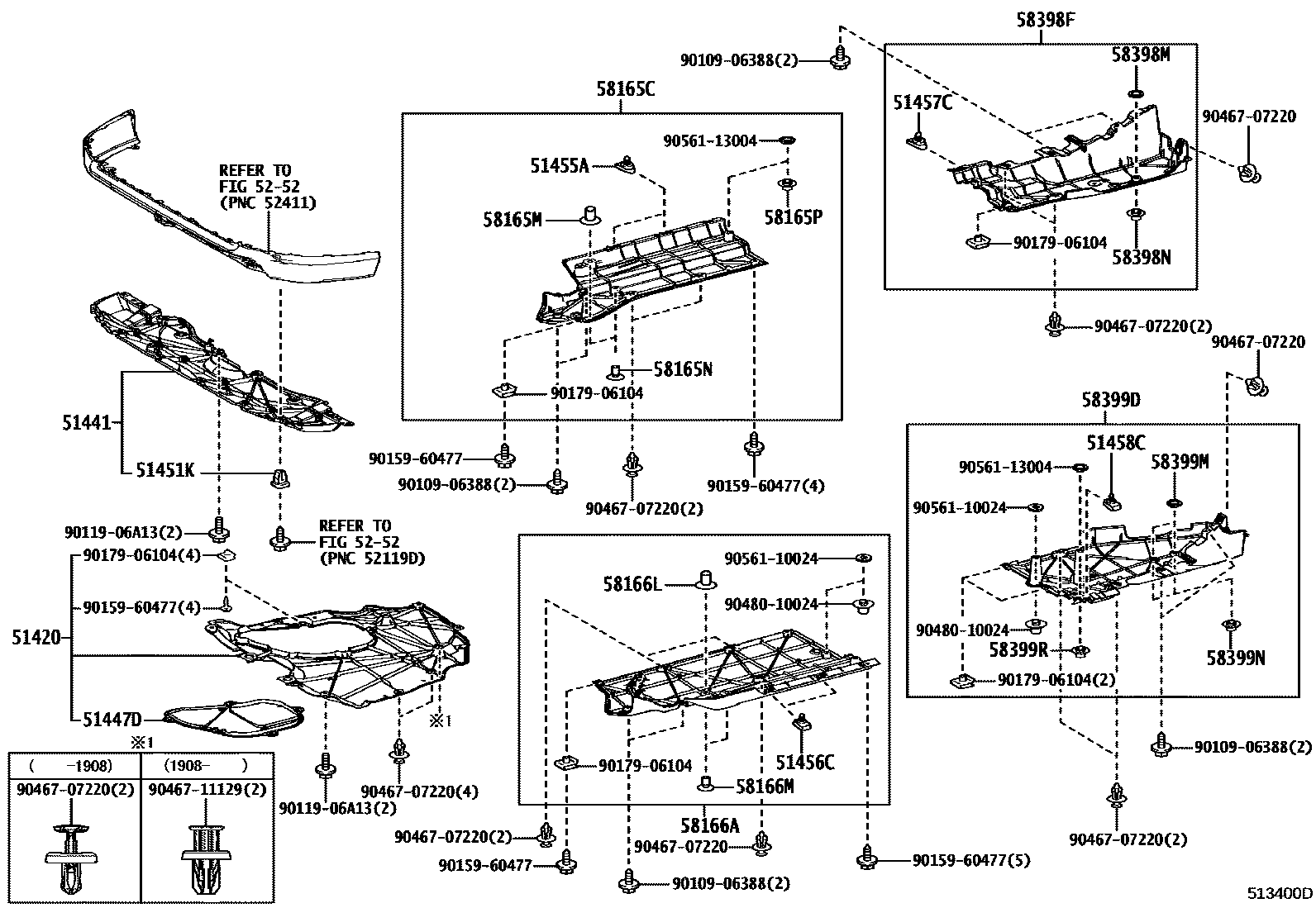

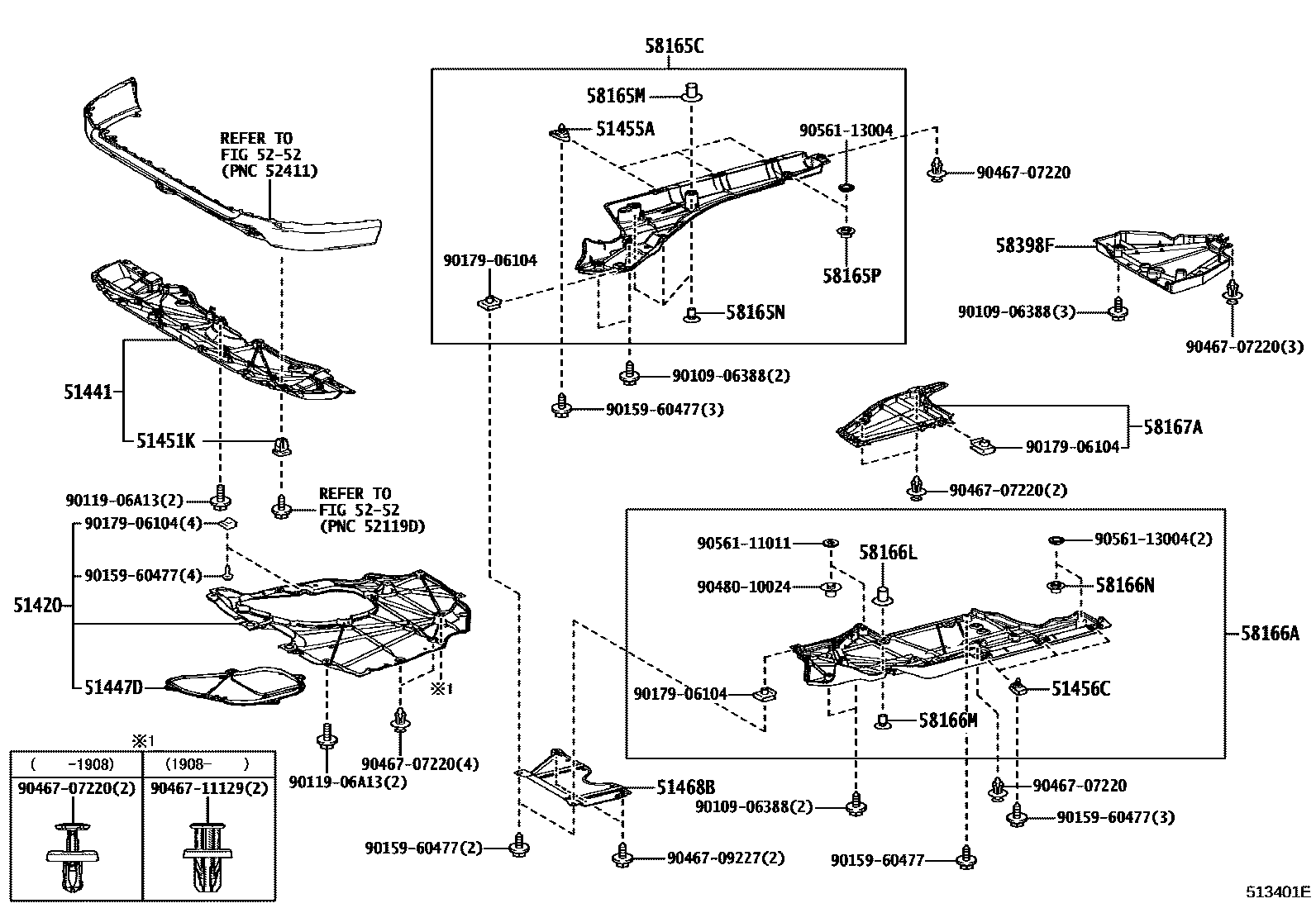

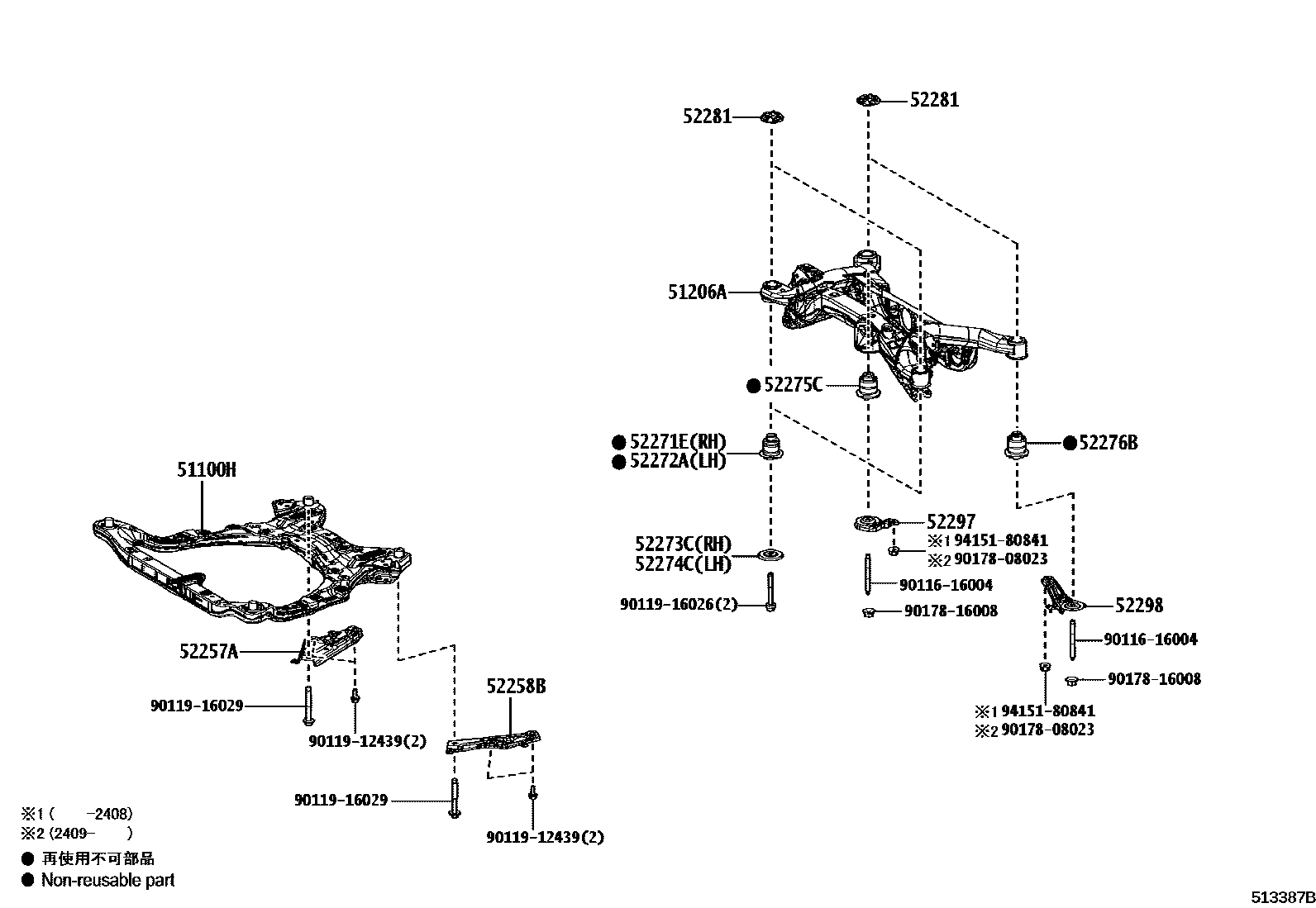

Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152
Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 6 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100H | ENS. CADRE, AVANT | 51100-30880 · 51100-42010 · 51100-42011 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42070 · 51206-42080 · 51206-42090 |
| 51420 | COUV ASS, SOUS MOT, NO.2 | 51420-42030 · 51420-42031 · 51420-48040 |
| 51441 | No. 1 engine bottom cover | 51441-42200 |
| 51447D | No. 4 engine center bottom cover | 51447-42080 |
| 51451K | RONDELLE, VIS, NO.1 | 90189-06237 |
| 51455A | Engine undercover seal No. 1 | 51455-48020 |
| 51456C | Engine undercover seal No. 2 | 51455-48020 |
| 51457C | Engine cover No. 3 seal | 51455-48030 |
| 51458C | JOINT, PROTECTION SOUS MOTEUR, NO.4 | 51455-48030 |
| 51468B | ISOLANT, THERMIQUE PROTECTION SOUS MOTEUR | 51468-42020 |
| 52257A | Right front suspension cross member rear bracket | 52257-42020 |
| 52258B | Left front suspension cross member rear bracket | 52258-42020 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-42010 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52271-42010 |
| 52273C | BUTEE, ELEMENT SUSPENSION ARR, INF MD | 52273-33030 |
| 52274C | BUTEE, ELEMENT SUSPENSION ARR, INF MG | 52273-33030 |
| 52275C | COUSSIN, FIXATION ELEMENT SUSPENSION ARR, ARR MD | 52275-42010 |
| 52276B | COUSSIN, FIXATION ELEMENT SUSPENSION ARR, ARR MG | 52276-42010 |
| 52281 | Differential support beam cushion | 52281-33020 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-42020 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-42010 |
| 58165C | Front floor right cover | 58165-42030 · 58165-42040 |
| 58165P | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.3 | 90467-14053 |
| 58166A | Front floor left cover | 58166-42020 · 58166-42030 |
| 58166N | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.3 | 90467-14053 |
| 58167A | front floor center cover | 58167-42010 |
| 58398F | No. 1 floor under cover | 58398-42030 · 58398-42040 |
| 58398M | CLIP, CACHE SOUS PLANCHER, NO.1 | 90467-06209 |
| 58398N | CLIP, CACHE SOUS PLANCHER, NO.2 | 90467-06212 |
| 58399D | Floor No. 2 lower cover | 58399-42010 |
| 58399M | CLIP, CACHE SOUS PLANCHER, NO.1 | 90467-06209 |
| 58399N | CLIP, CACHE SOUS PLANCHER, NO.2 | 90467-06212 |
| 58399R | ATTACHE, CACHE SOUS PLANCHER, NO.3 | 90467-14053 |
