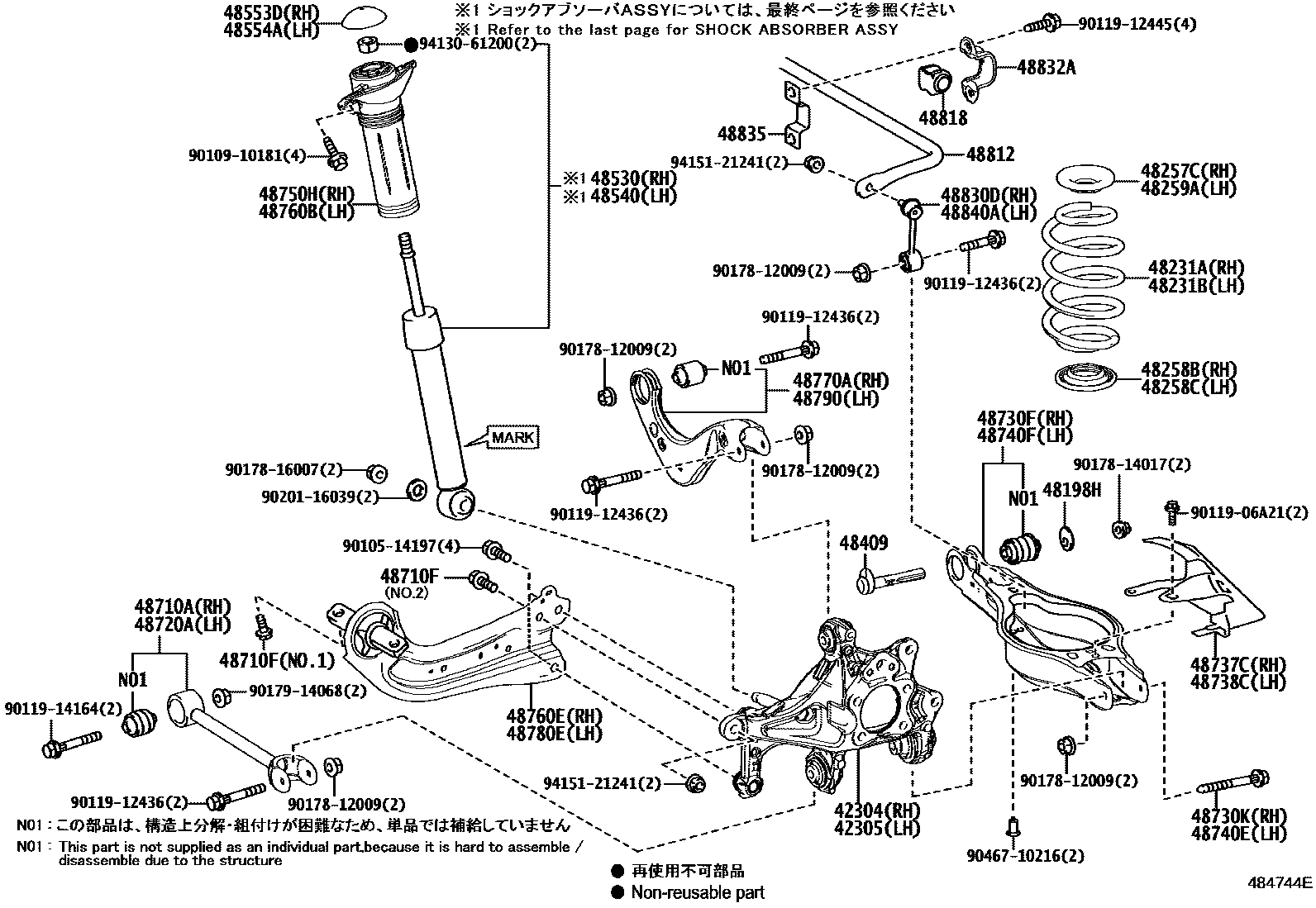

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-42060 · 42304-42070 |
| 42305 | Rear axle left bracket sub-assembly | 42305-42060 · 42305-42070 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-42460 · 48231-42480 · 48231-42520 · 48231-42540 · 48231-42590 · 48231-42630 · 48231-42660 · 48231-42670 · 48231-42680 · 48231-42690 · 48231-42840 · 48231-42850 · 48231-42860 |
| 48231B | Left rear coil spring | 48231-42460 · 48231-42480 · 48231-42520 · 48231-42540 · 48231-42590 · 48231-42630 · 48231-42660 · 48231-42670 · 48231-42680 · 48231-42690 · 48231-42840 · 48231-42850 · 48231-42860 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-47020 · 48257-F4010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-47010 · 48258-F4010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-47010 · 48258-F4010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-47020 · 48257-F4010 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-47011 |

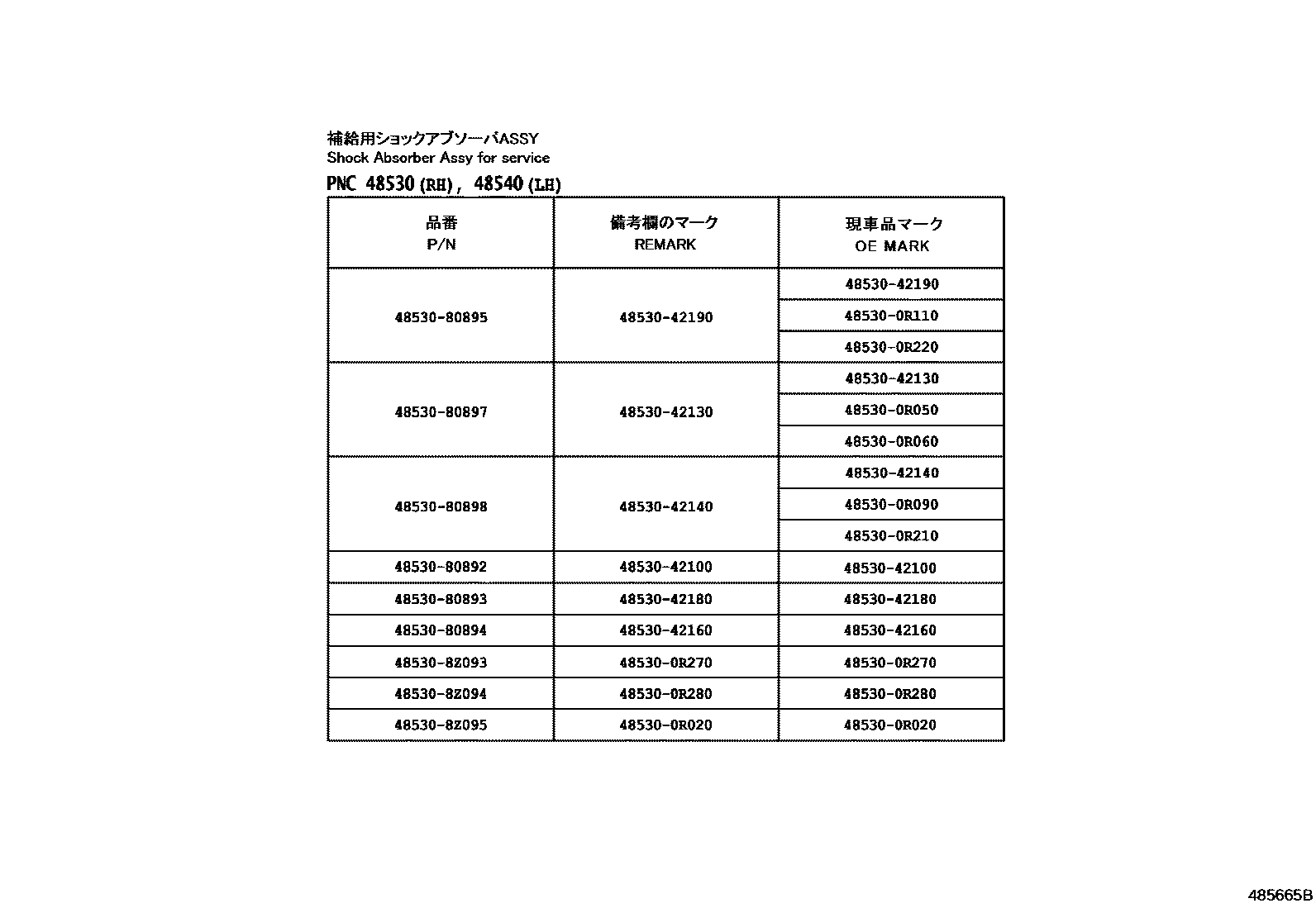

| 48530 | Right rear shock absorber assembly | 48530-80892 · 48530-80893 · 48530-80894 · 48530-80895 · 48530-80897 · 48530-80898 · 48530-8Z093 · 48530-8Z094 · 48530-8Z095 |
| 48540 | Left rear shock absorber assembly | 48530-80892 · 48530-80893 · 48530-80894 · 48530-80895 · 48530-80897 · 48530-80898 · 48530-8Z093 · 48530-8Z094 · 48530-8Z095 |
| 48553D | Right rear shock absorber cover | 48553-47010 |
| 48554A | Left rear shock absorber cover | 48553-47010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-42040 |
| 48710F | Bolt (for rear trailing arm) | 90119-12451 · 90119-12452 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-42040 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-42060 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 |
| 48737C | CACHE, BRAS DE CONTROLE INFERIEUR, DR NO.2 | 48737-42060 |
| 48738C | CACHE, BRAS DE CONTROLE INFERIEUR, GA NO.2 | 48738-42030 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-42060 |
| 48750H | Right rear suspension support assembly | 48750-42020 |
| 48760B | Left rear suspension support assembly | 48750-42020 |
| 48760E | Right rear trailing arm assembly | 48760-42070 |
| 48770A | Right rear upper control arm assembly | 48770-42050 |
| 48780E | Left rear trailing arm assembly | 48780-42070 |
| 48790 | Left rear upper control arm assembly | 48790-42030 |
| 48812 | rear stabilizer bar | 48812-42050 · 48812-42060 |
| 48818 | Rear stabilizer bar bushing | 48818-42030 · 48818-42040 |
| 48830D | Right rear stabilizer bar link assembly | 48830-42030 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-42021 |
| 48835 | Rear stabilizer bar lower bracket | 48835-42010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-42030 |
