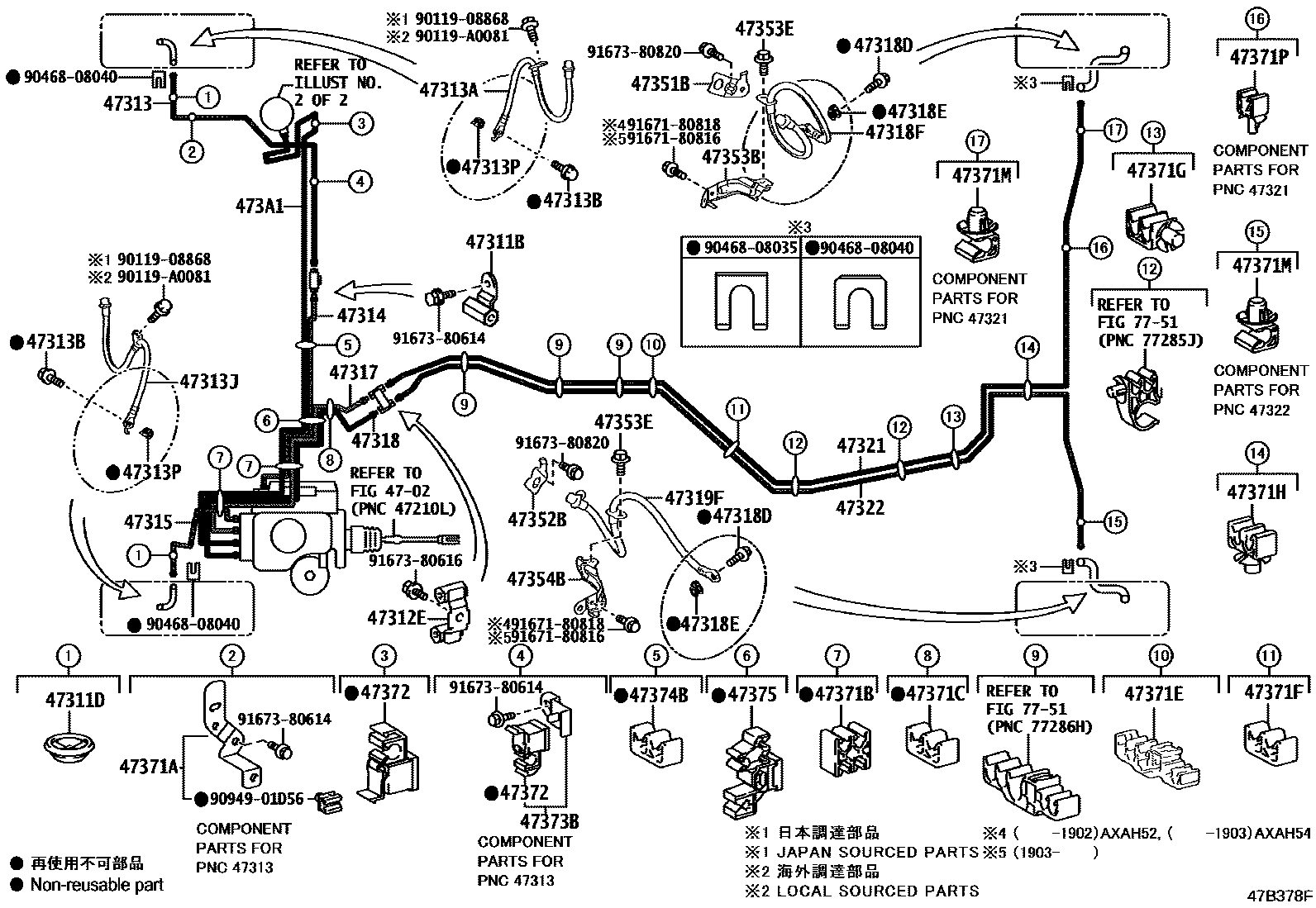

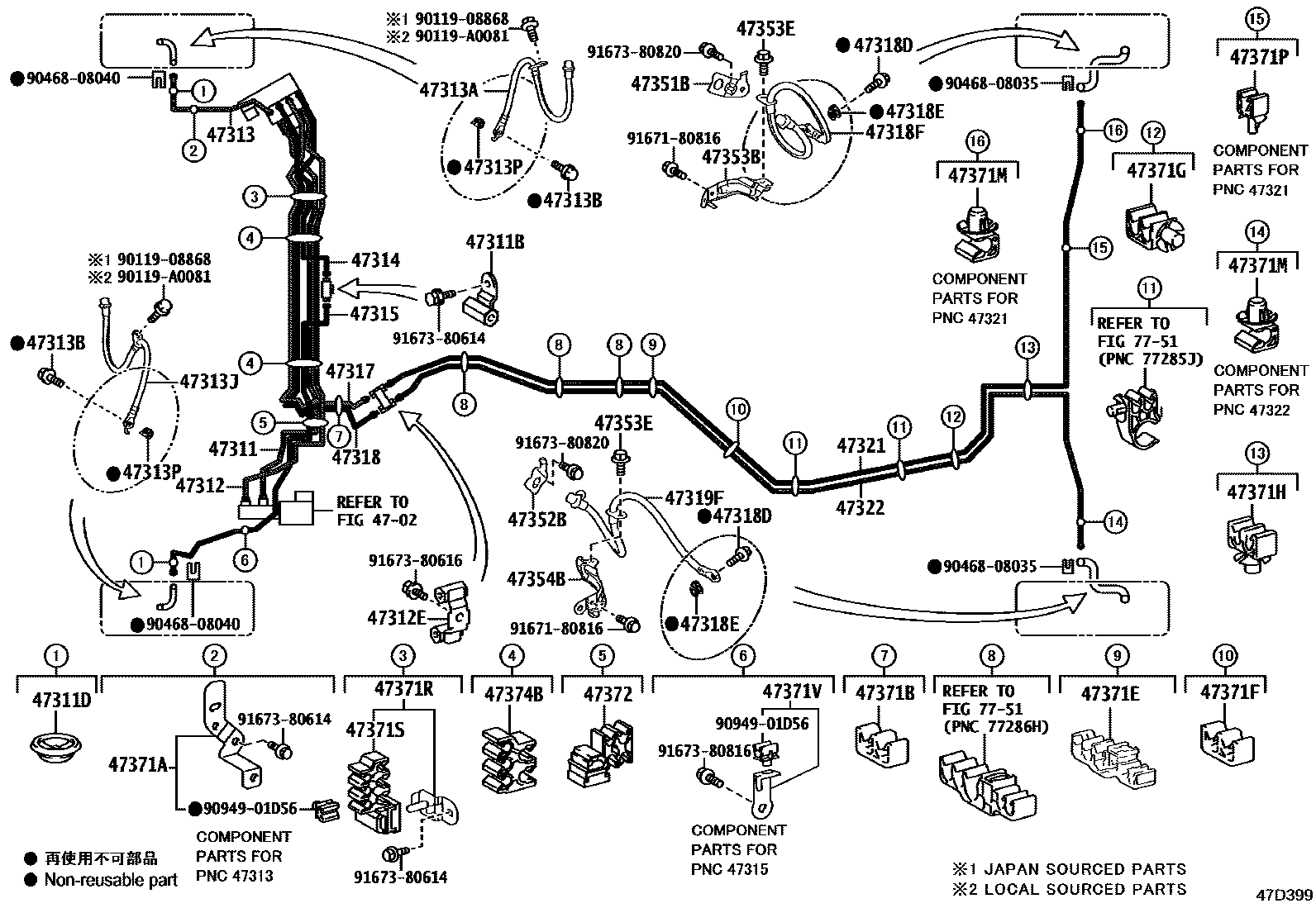

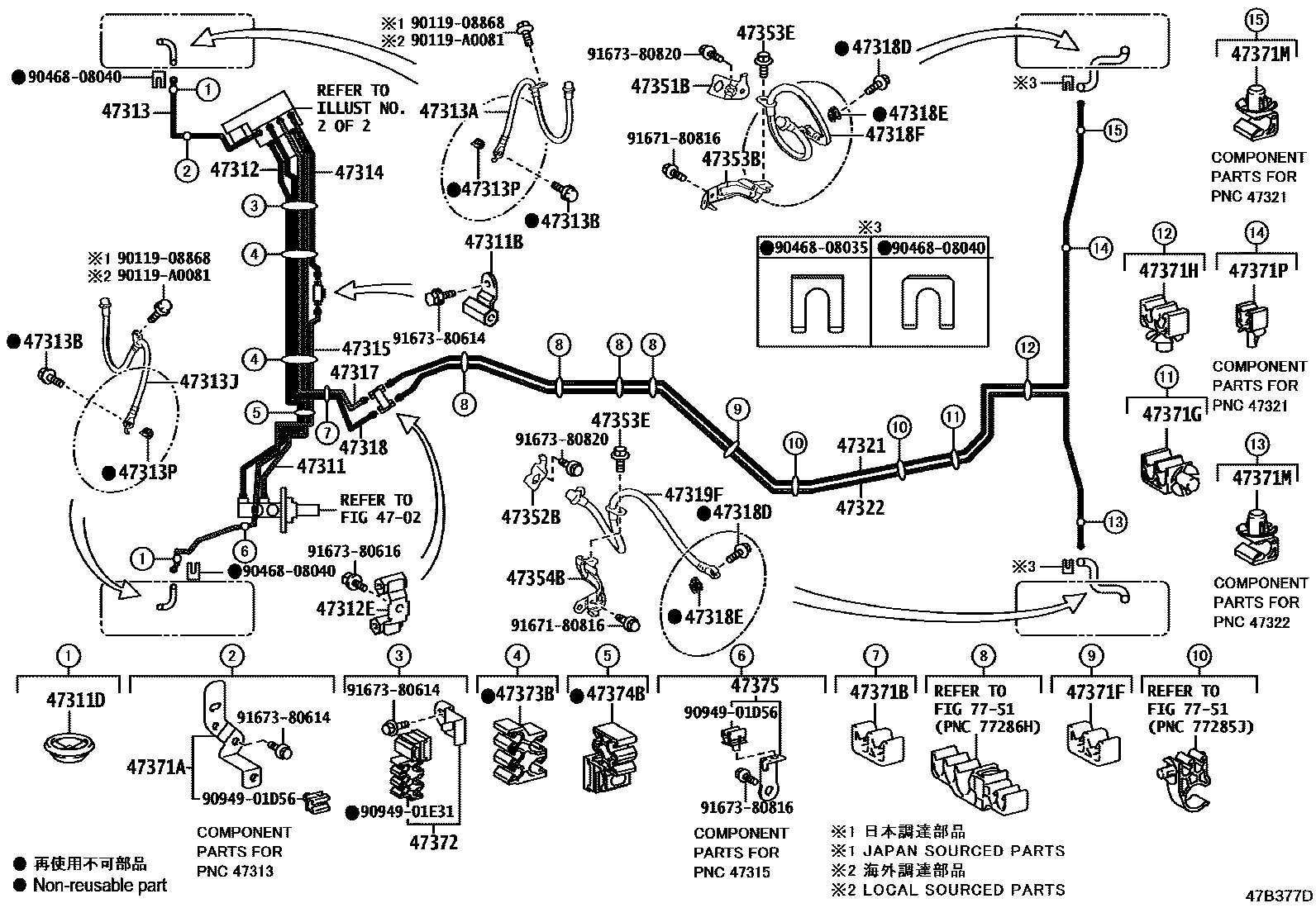

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 6 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

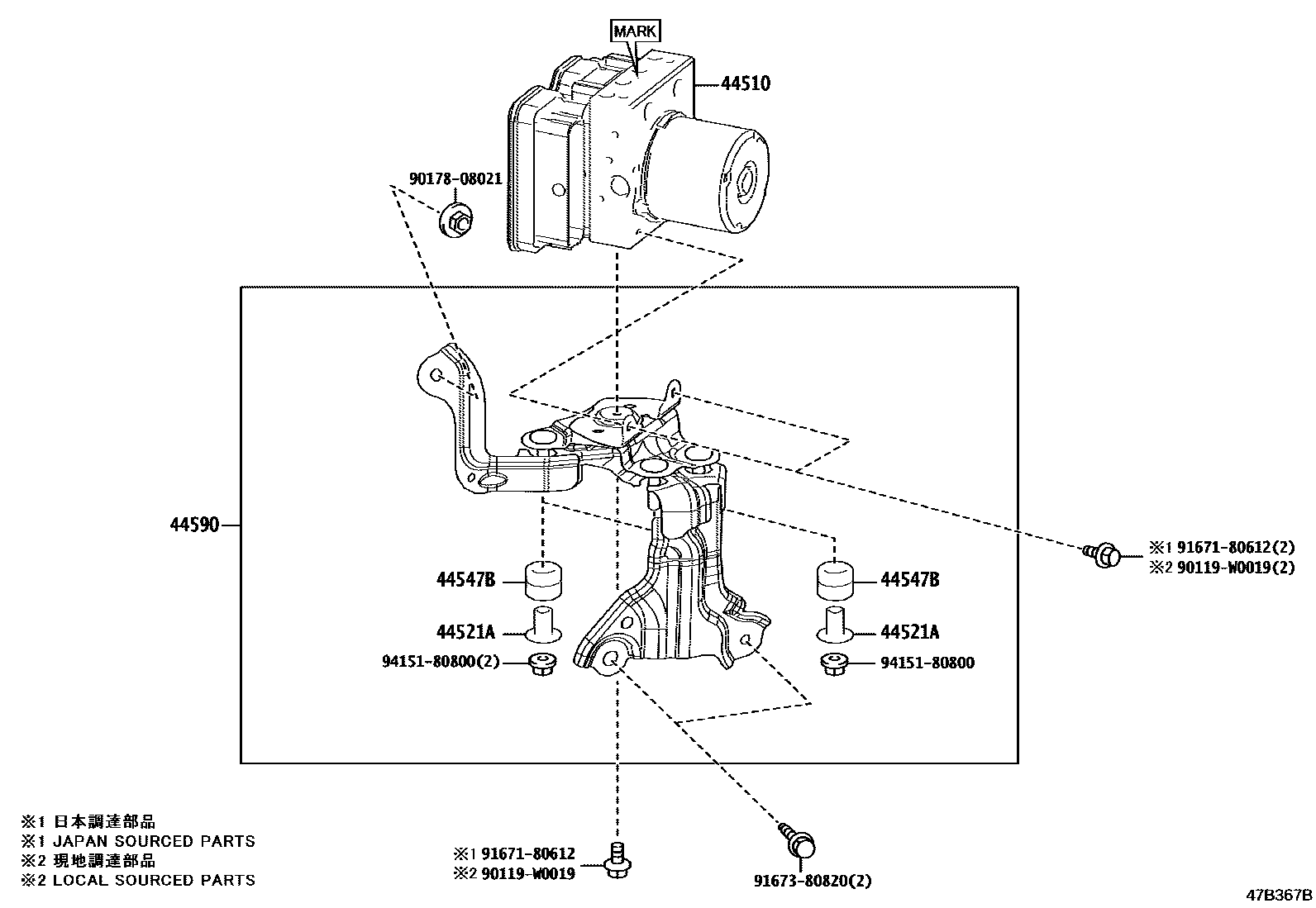

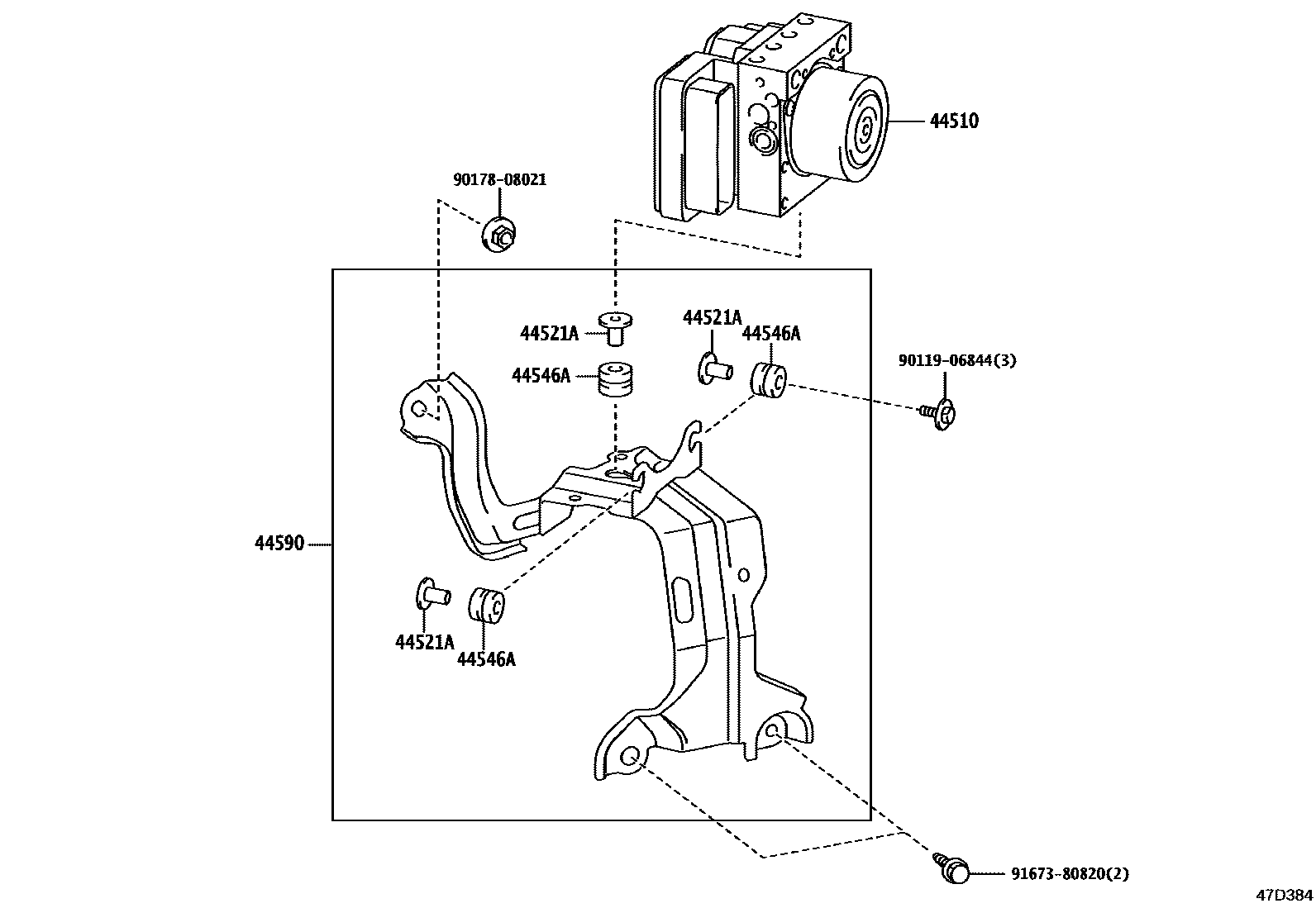

| 44510 | brake actuator assembly | 44050-42F30 · 44050-42F31 · 44050-42F60 · 44050-42F61 · 44050-42K00 · 44050-42K30 · 44050-42L90 · 44050-42L91 · 44050-42L92 · 44050-42M00 · 44050-42M30 · 44050-42P20 · 44050-42P50 · 44050-42S41 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 · 44521-33020 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-42150 · 44590-42170 · 44590-42190 |

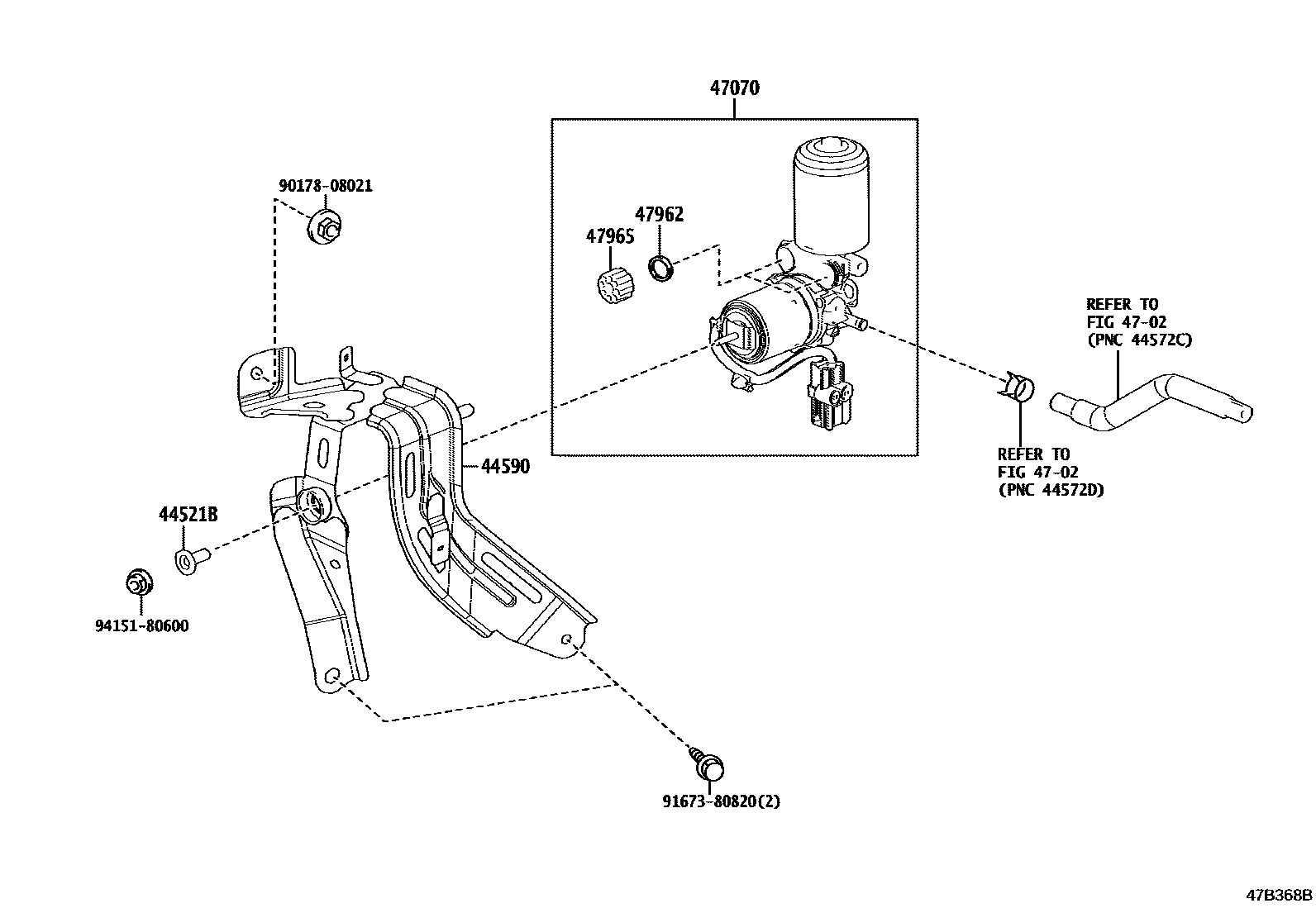

| 47070 | Brake booster pump assembly | 47070-42050 |
| 47311 | No. 1 front brake pipe | 47311-42240 · 47311-42260 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-42410 · 47312-42430 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-42420 · 47313-42440 · 47313-48070 |
| 47313A | No. 1 front flexible hose | 90947-02J10 · 90947-02J12 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02J11 · 90947-02J15 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-42200 · 47314-42260 · 47314-42280 |
| 47315 | No. 5 front brake pipe | 47315-42260 · 47315-42280 · 47315-42310 |
| 47317 | No. 7 front brake pipe | 47317-42250 · 47317-42270 · 47317-42290 |
| 47318 | No. 8 front brake pipe | 47318-42250 · 47318-42270 · 47318-42290 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02J08 |
| 47319F | Left rear flexible hose | 90947-02J09 |
| 47321 | No. 1 rear brake pipe | 47321-42210 |
| 47322 | No. 2 rear brake pipe | 47322-42190 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06050 · 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06050 · 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47353E | BOULON(POUR SUPPORT TUYAU FLEXIBLE) | 90119-08868 · 90119-A0081 · 90119-W0011 · 90119-W0171 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47371A | No. 1 brake pipe clamp | 47371-42130 |
| 47371B | No. 6 brake pipe clamp | 90464-00903 · 90464-00957 |
| 47371C | No. 7 brake pipe clamp | 90464-00903 |
| 47371E | No. 9 brake pipe clamp | 77285-42150 |
| 47371F | No. 10 brake pipe clamp | 90464-00903 |
| 47371G | No. 11 brake pipe clamp | 90949-01D13 |
| 47371H | No. 12 brake pipe clamp | 90949-01D12 |
| 47371M | No. 13 brake pipe clamp | 90949-01D17 |
| 47371P | COLLIER DE FIXATION CONDUIT FREIN NO.14 | 90949-01E01 |
| 47371R | COLLIER DE FIXATION CONDUIT FREIN NO.16 | 47371-42150 |
| 47371S | COLLIER DE FIXATION CONDUIT FREIN NO.17 | 90949-01E31 |
| 47371V | COLLIER DE FIXATION CONDUIT FREIN NO.20 | 47371-42140 |
| 47372 | No. 2 brake pipe clamp | 47371-42150 · 90949-01D35 · 90949-01E30 |
| 47373B | No. 3 brake pipe clamp | 47371-42160 · 90949-01E40 |
| 47374B | No. 4 brake pipe clamp | 90949-01D91 · 90949-01E30 · 90949-01E40 |
| 47375 | No. 5 brake pipe clamp | 47371-42140 · 90949-01E38 |
| 473A1 | TUYAU, ACCUMULATEUR AU MAITRE-CYLINDRE DE FREIN | 473A1-42010 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
